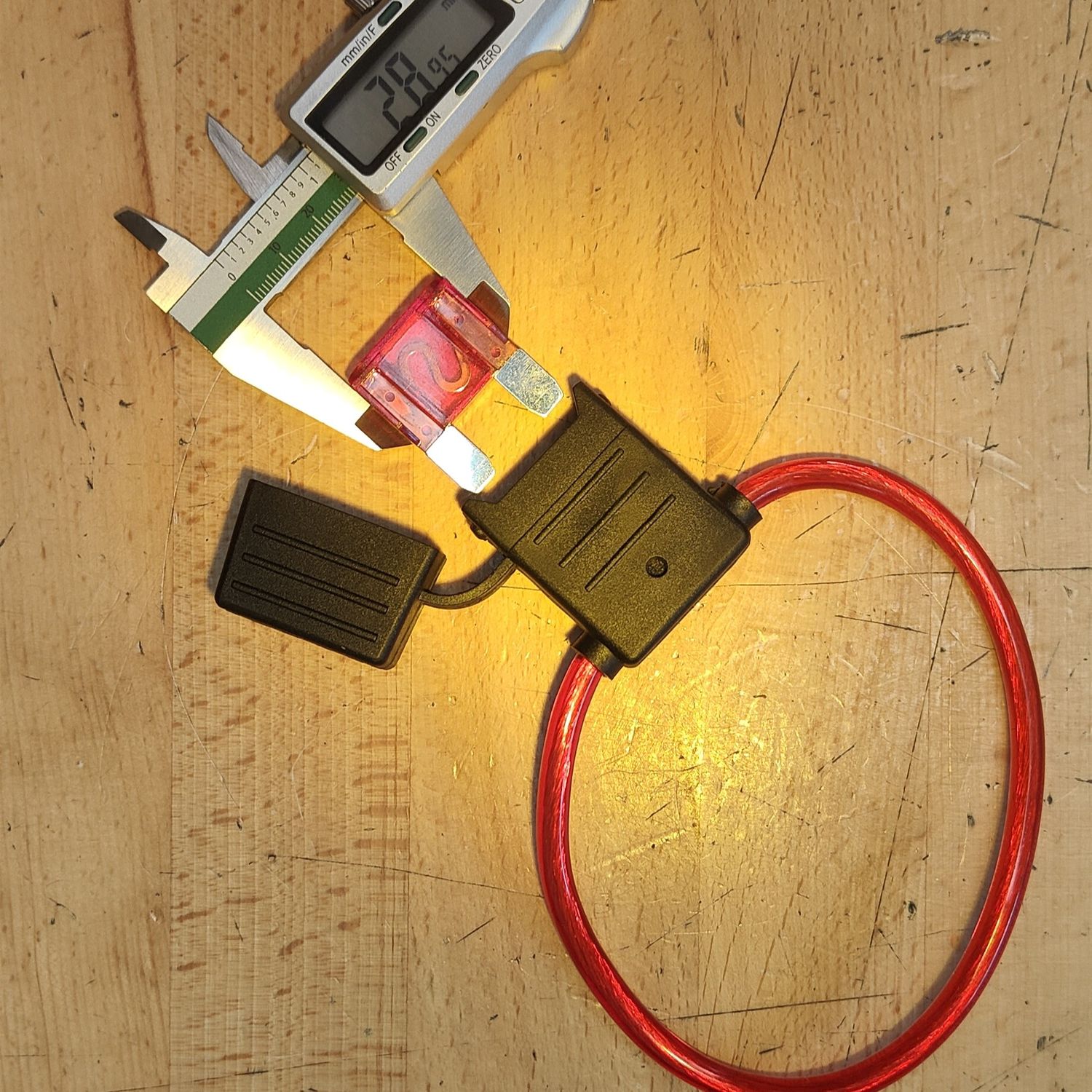

Maxi Blade Fuse Holder with heavy 8AWG inline cable and 50 or 60 amp Maxi Blade fuse.
Typically required when replacement is needed due to contacts creating excessive heat and melting the holder housing and adjacent wires. Ensure holder contacts and fuse are clean and that the contacts are firm to prevent re-occurrence.
Notes:
These are a 3rd party aftermarket holders without pre-fabricated yellow XT90 connector fitted. The factory original spare has an XT90 connector. Typically the red +ve cable each side of the defective fuse holder is cut and the replacement is soldered in place, negating any need to work on the black wire that is included with the factory original spare. If you need the female XT90 connector these are available separately.
The stock factory fuse is 50 amps. A 60 amp variant is offered for more "headroom". Product image shows red 50A fuse, the 60A is Blue/Cyan.
Suits NUTT A5-D 2-piston calliper on early NAMI Burn-e, MUKUTA 10+, Limited models of Zero 10X/11X, Dragon Hunter X11, early Dragon Cyclone Pro & early VSETT and 4-piston callipers NUTT Y-5 & TurboBrake HB427-4M.
81mm width at bead, 50psi, green / blue line, suits 6.5" rims of NAMI Burn-e, Wolf Warrior 11>, Dragon Hurricane, Predator 6.5" rear, Zero 11X & VSETT 11+
81mm width at bead, 50psi, with self-healing liner, green / blue line, suits 6.5" rims of NAMI Burn-e, Wolf Warrior 11>, Dragon Hurricane & Predator 6.5" rear.
