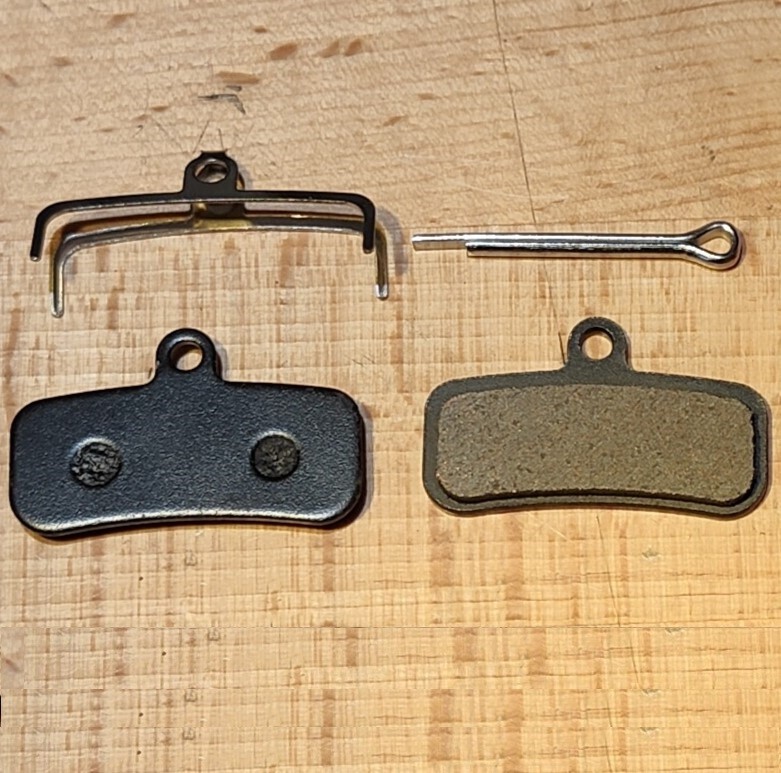

Logan 4-Piston Brake Pad

• These pads suit:
  • Logan 4-piston hydraulic callipers such as Logan branded calliper on NAMI Burn-e 2 Max.
  • Zoom HB-876 callipers, which is a rebranded version of the Logan.
  • The subsequent Zoom 4-piston HB-890 calliper, implemented on models such as VSETT 10+ Apex.
  • X4 Caliper on VSETT 10+ Apex.
  • TurboBrake HB427-4S and HB427-4M.

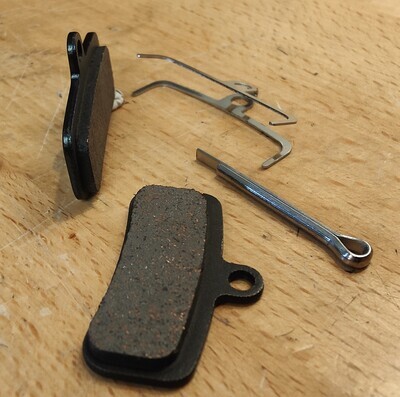

• Supplied as a set (pair) two pads, one for each side. Order two sets for both front and rear. Retaining spring and pin included.

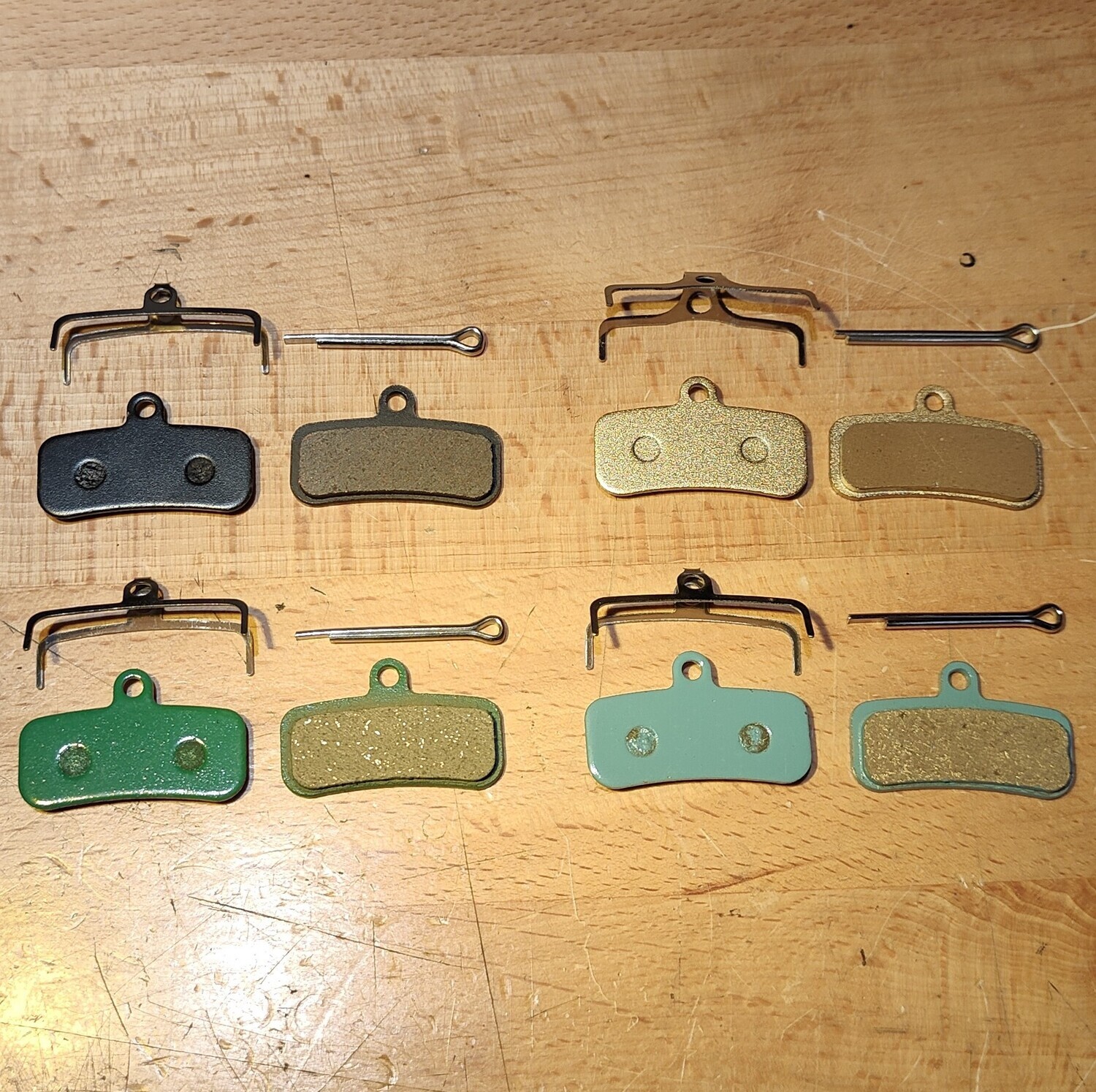

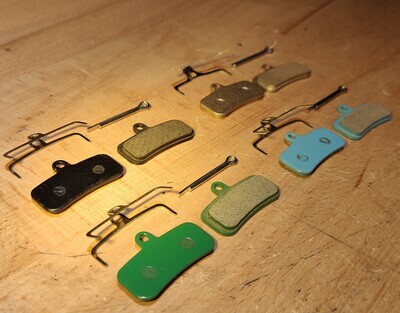

• Available in four compounds. To further understand merits of each compound, refer to the Brake Pads Category homepage.



Notes

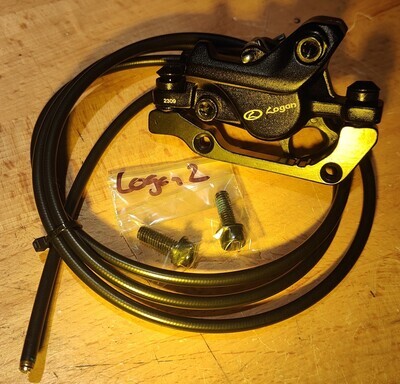

1. Nami Burn-e Max (non-2 model) models adopt Nutt 2-piston calliper and uses NUTT pads. Older Burn-e 2 (non-Max) models also use that pad, with newer Logan 2-piston models adopting Shimano XOD pads.

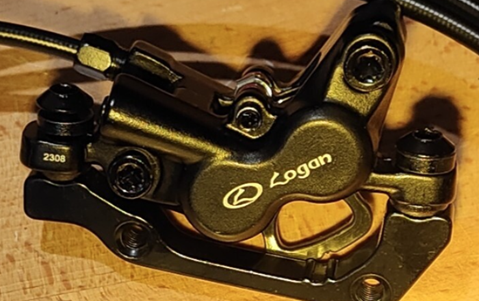

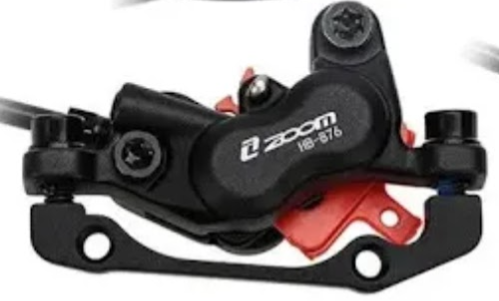

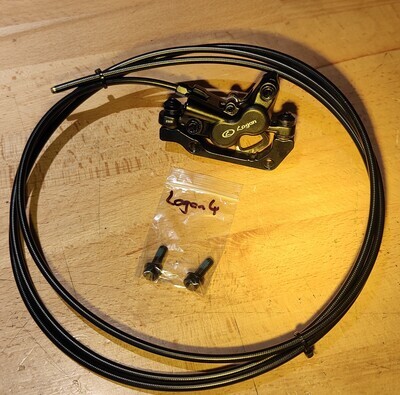

2. Images showing the Logan 4-Piston calliper and the same, rebranded Zoom HB-876.

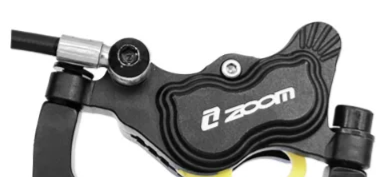

3. Images showing the Zoom HB-890 calliper, note the distinct terraced side.

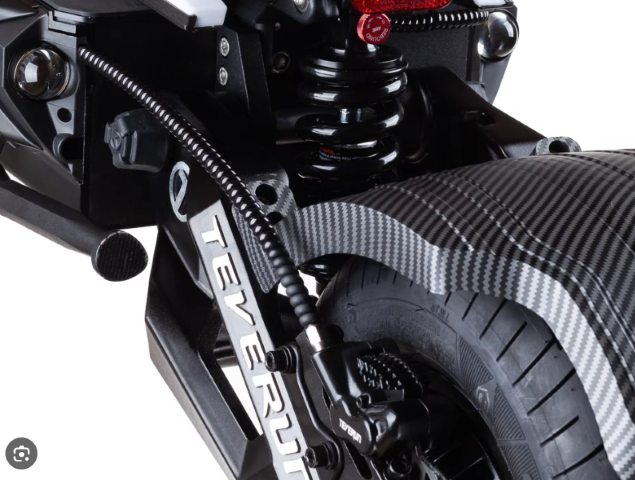

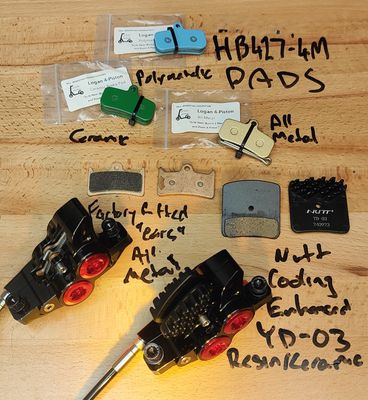

4. Teverun Fighter Supreme initially adopted the HB427-4S calliper with a finned pad (which differs in appearance to the NUTT Finned pads). Higher end models adopt the HB427-4M calliper which this pad supports.

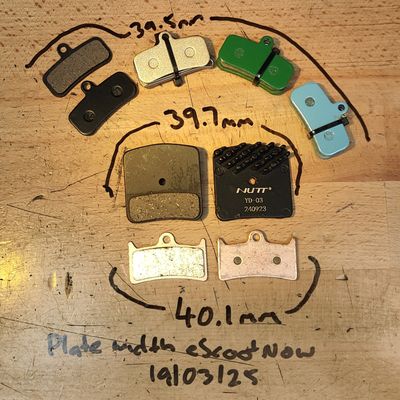

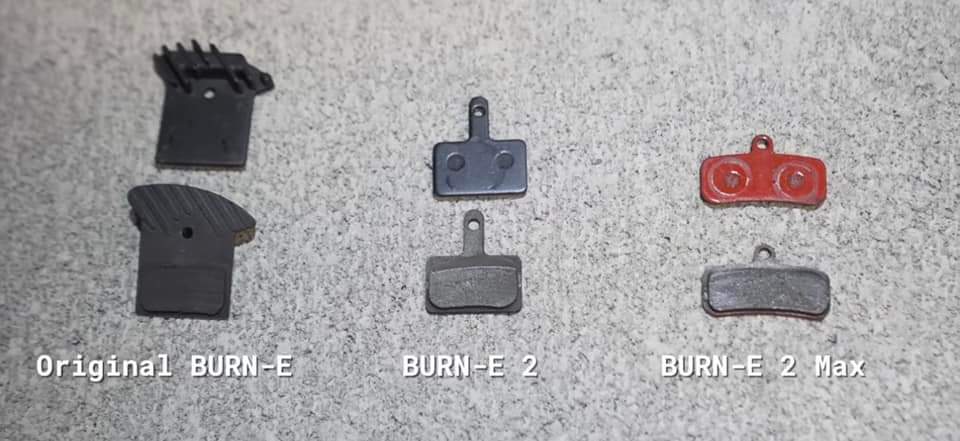

5. Guide to Nami Burn-e Series pads by Steven Chan
   Showing NUTT YD-01 pad (Burn-e / early Burn-e 2 non-Max, NUTT calliper) and the Logan calliper pads on on later model Burn-e 2 (non-Max) Shimano B10S/M315 pads and Burn-e 2 Max Logan 4-piston pads (these pads).
