Mukuta / X1 0002-P NFC TFT Display

• Display suit scooters that adopt Makuta / VSETT / QS-S4 systems with a single 6-pin male connector such as Titan X1 which is a spiritual successor to the VDM-10 from the Makuta/VSETT/Zero folks.

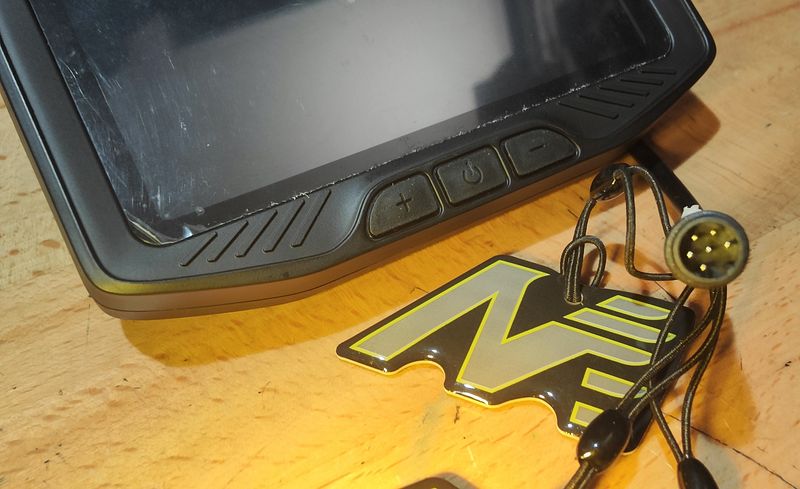

• This is not wired for plug-and-play use on the above makes/models - in most instances requires appropriate re-wiring. There is no external buttons, the three buttons are built into the display. There is no throttle pass through.
• Typically required as replacement when original display has had water ingress or suffered physical damaged or premature failure.
• Includes NFC cards.

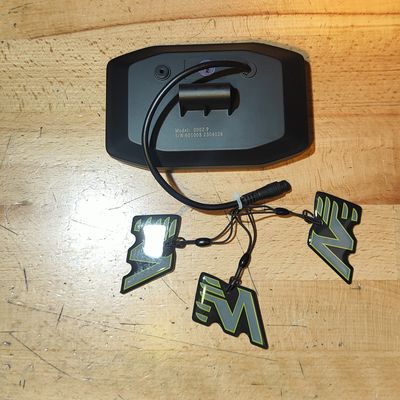

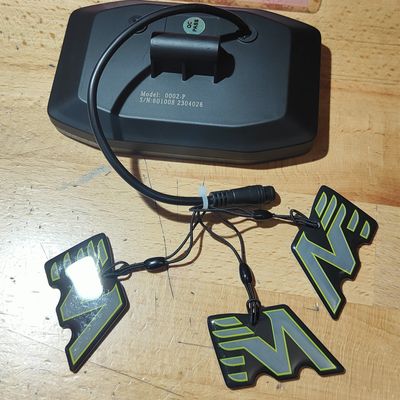

• Rear nameplate 0002-P.

Notes:

1. Note, the Makuta series (such as 10+) adopt displays marked MAKUTA 0001 which has an additional cable on the display for throttle connection. The X1 wiring system provides dedicated throttle connection on the main cable to connect to controllers (and related 5v throttle supply). This implementation is not adopted on the Makuta models. For these reasons, this display is not a drop-in plug-and-play replacement for plug and play uplifting from other systems other than the X1 (or ODM brands of X1).
2. As the X1 models are relatively new and uncommon, there is insufficient knowledge to understand how the P settings apply to systems such as QS-S4, the VSETT NFC Throttle/Display and the VSETT Central Display.
3. Images below relating to the X1 (VDM-10 "successor").
