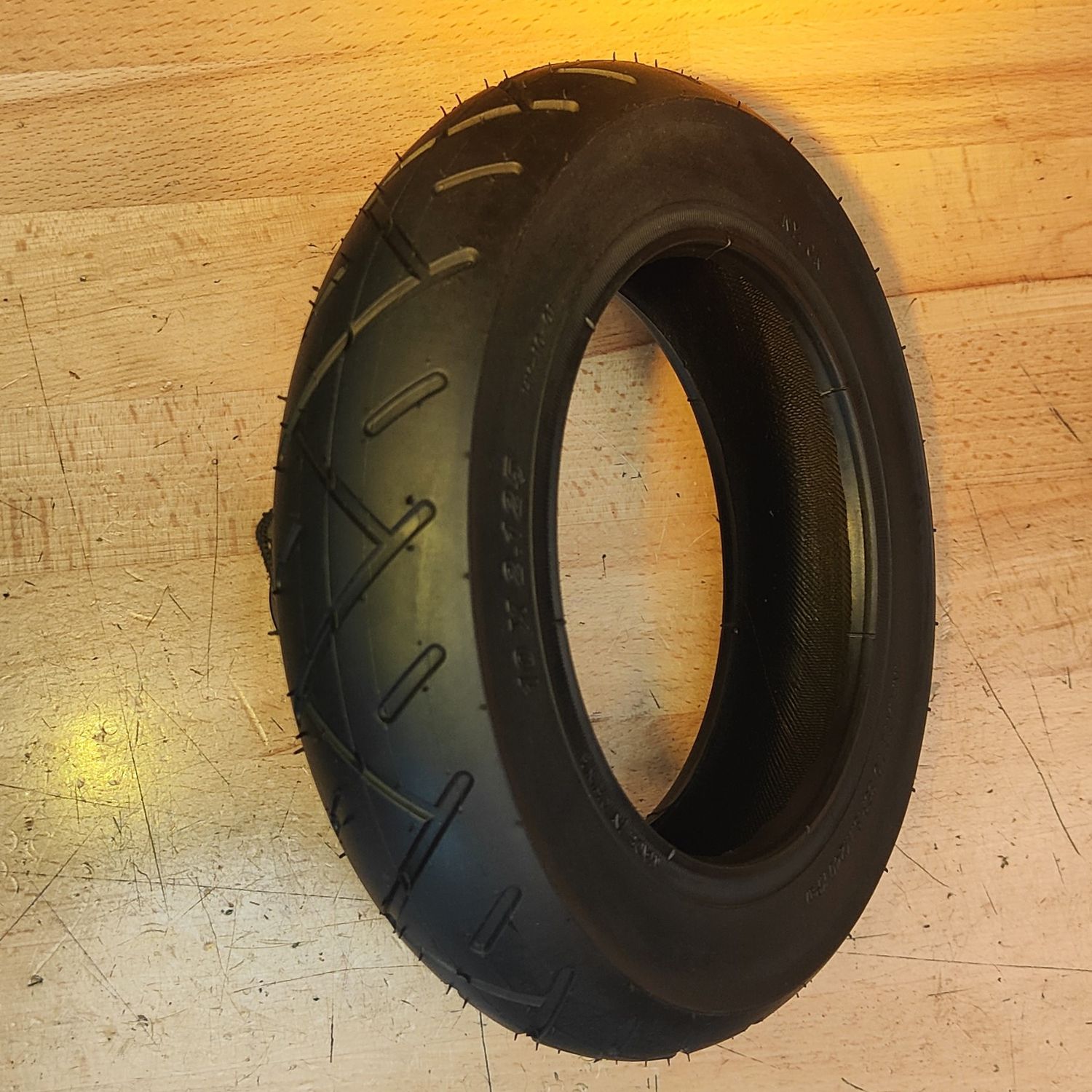

10x2.125 Tyre (tube type) [HY-10]

• Commonly fitted to Australian ODM makes from e-Glide and Mearth for the model G120.
• Also suits KuKirin M4 and may suit the Mearth S Pro model (which is the 10" version of their S Series).
• This tyre runs on a 6" rim where clearance width is too narrow for the more wider 10x2.5" tyre. Typical inflated width is 55mm (2.16"). This tyre accommodates the narrow clearance on the front end of the G120 "forks" and is paired with a 10x2.125 0 degree bent valve type tube.
• Nameplate pressure: 36PSI, designation: HY-10 (which are more pliable 50mm width at bead) and P1407D which measure 35mm width at bead.
• Typical weight: 370 grams

Notes:

1. Tyres that take on this form are sometimes metric size designated as 260x55 (10.23" x 2.16"). The Wanda tyre has WL logo on one side weighing approx 450 grams with designation P14070 (often a Mearth factory tyre) or without designation with Xuancheng branding. Mearth G120's observed with Aoxin 120 gram tubes size 10x2.125" in 0 degree type front and rear.
