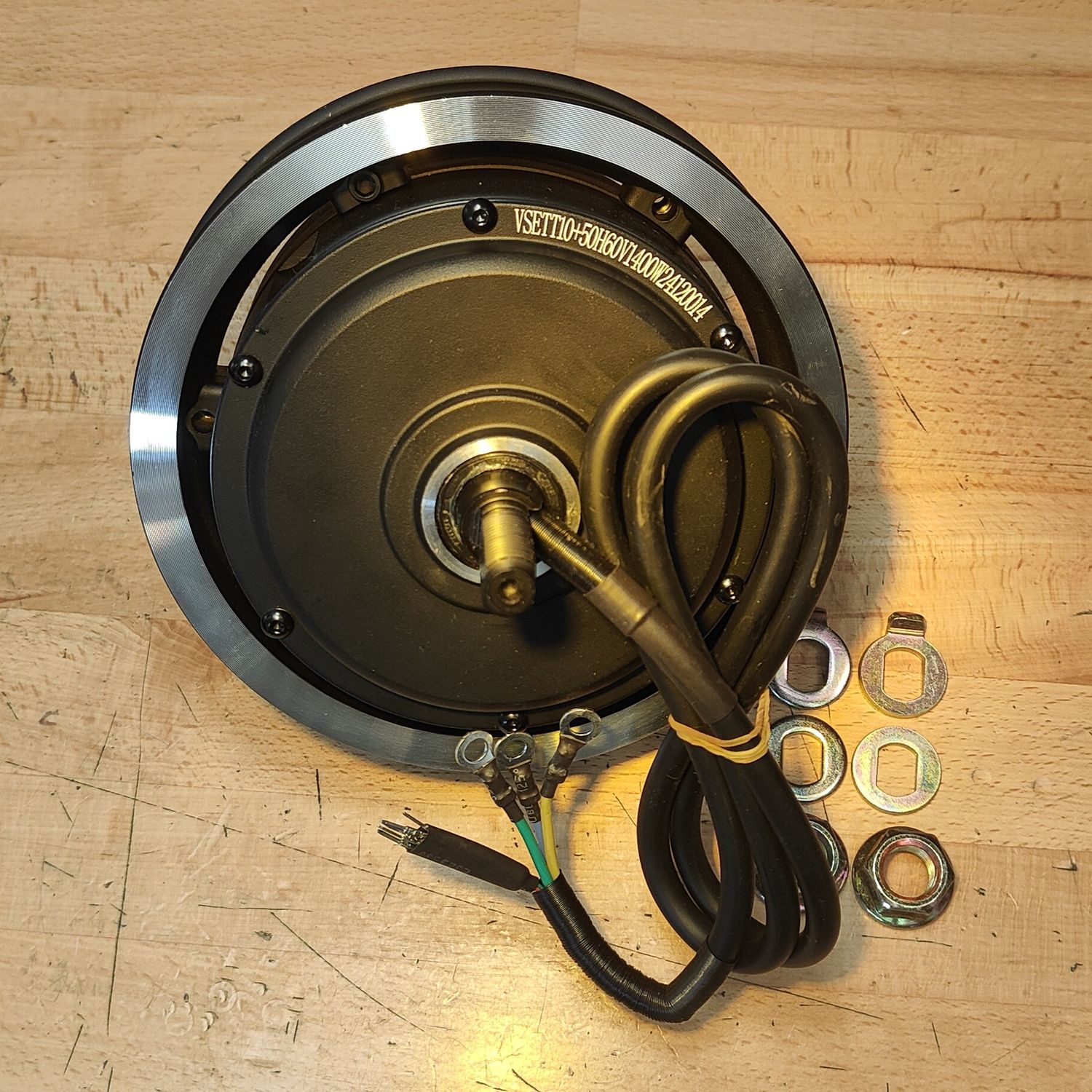

VSETT 10+ Motor

• The VSETT 10+ Motor suits front or rear of all VSETT 10+ models (except Apex). This is the 2nd generation motor, introduced late 2022.
• 60 volts, 1400 watts.
• Supplied with pair axil nuts (M14, 1.5mm pitch), washers and hook washers. Axil shaft has 10mm key.
• Typically supplied with 2 of the 6 rim cover bolts (M5x 20mm socket head). If you need all 6pcs, choose option.
• Wire terminations are the usual VSETT 10+ type with motor phase wires being the round crimped type and the hall sensor wires being JST SM male crimped pins.

Notes:

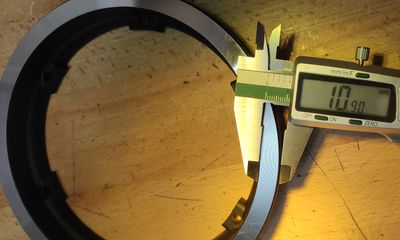

1. Can be fitted in lieu of the older motor which had an 8mm rim height. The Rim Cover page explains the differences between the older 8mm and newer 10mm.
2. Low tyre pressure and/or loose split rim screws can contribute to motor or Rim Cover failure. When securing split rim screws, ensure even pressure is applied, apply thread locker and check screws are tight frequently until bedded in.
