Round Slotted Large Tail 22.5mm Brake Pad
SKU BRAKE-PAD-ROUND-SLT-22.5/RSM
AU$12.73
Bulk pricing available for quantities of 2 units or more
Suits later models of Dragon GT, GTR & GTS (including V2) & early model Cyclone non-Pro.
Compound
In stock: 37 available
1
Buy more, save more
| Quantity | Price per item | Discount |
| 2 items | AU$10.91 | 14% off |
| 6 items | AU$8.18 | 36% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Round Slotted Large Tail 22.5mm Brake Pad
Product Details
Brand: 1
- The Round Slotted Large Tail 22.5mm Brake Pad is suitable for models of:
- Dragon GT, GTR & GTS (including V2) that have the Red Mechanical Calliper introduced 2024. Earlier models adopt a smaller, non slotted Round Tail 18.5mm pad.
- The lesser common Dragon Cyclone Non-pro, typically early model's running 8" wheels with dual motor. Later models have been observed to use the Round Tail 21.5mm pad.
- Also supports the BRK-725 calliper.
- Easily identified by the presence of slot and spring

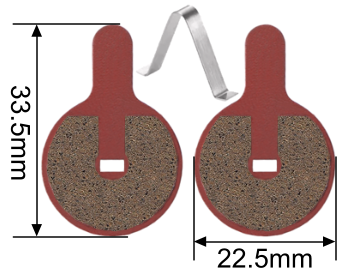

- There are to variants with respect to the shape of the spring (width and length) and according width of the slot. Observed easily with presence of hole at top on the narrow. Image below shows the wide spring/slot which is stock on the Dragon OEM calliper. The narrower slot with spring that more resembles tweezers is understood to be easier to work with, a bit more flexible and has more pad surface contact area. The product images show our most popular, the narrow spring version of the black coloured resin semi metal compound.The wide slot is available in the gold (all metal) and (not shown) green Ceramic compound.
- Supplied as a set (pair) two pads, one for each side. Order two sets for both front and rear.
- Available in three compounds. To further understand merits of each compound, refer to the Brake Pads Category homepage.
Notes:

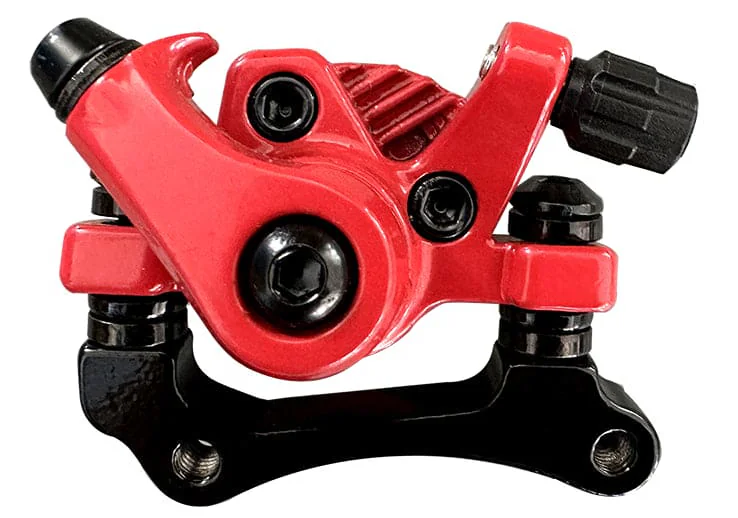

- Image shows the post-2023 Dragon G Series calliper, which these pads support. Easily identified by presence of heatsink.

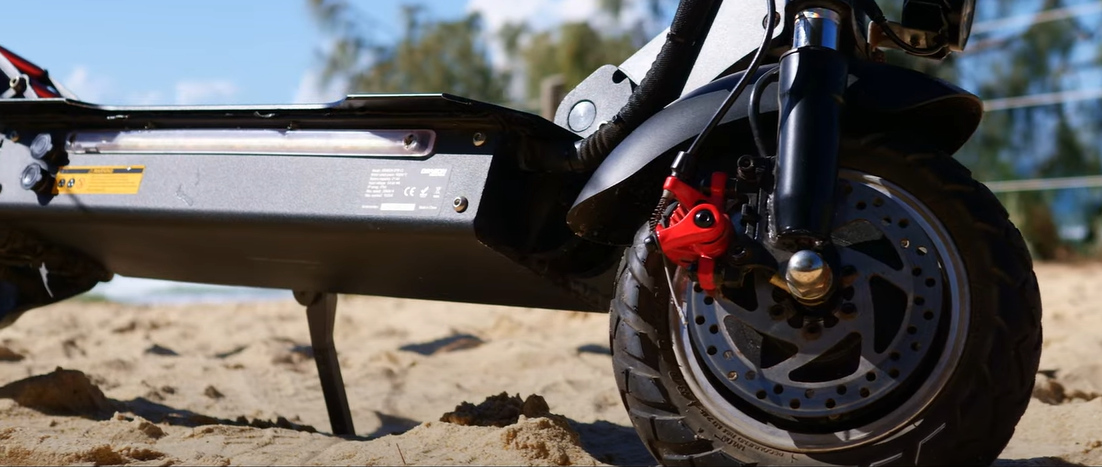

- Image showing calliper on Dragon GTR V2 courtesy Techcruise.

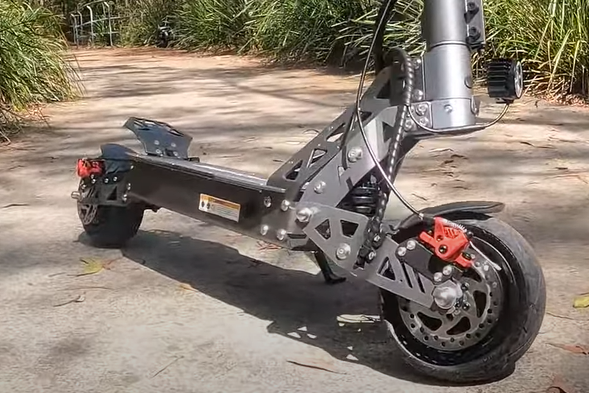

- Image showing early model Dragon Cyclone (non-Pro), such as this 8" model:
