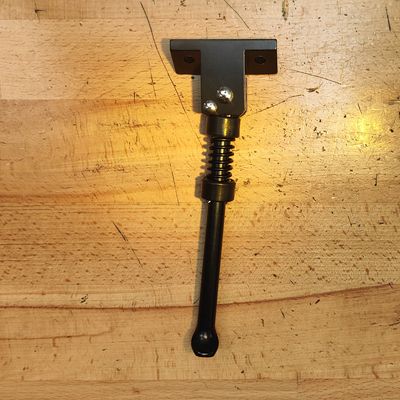

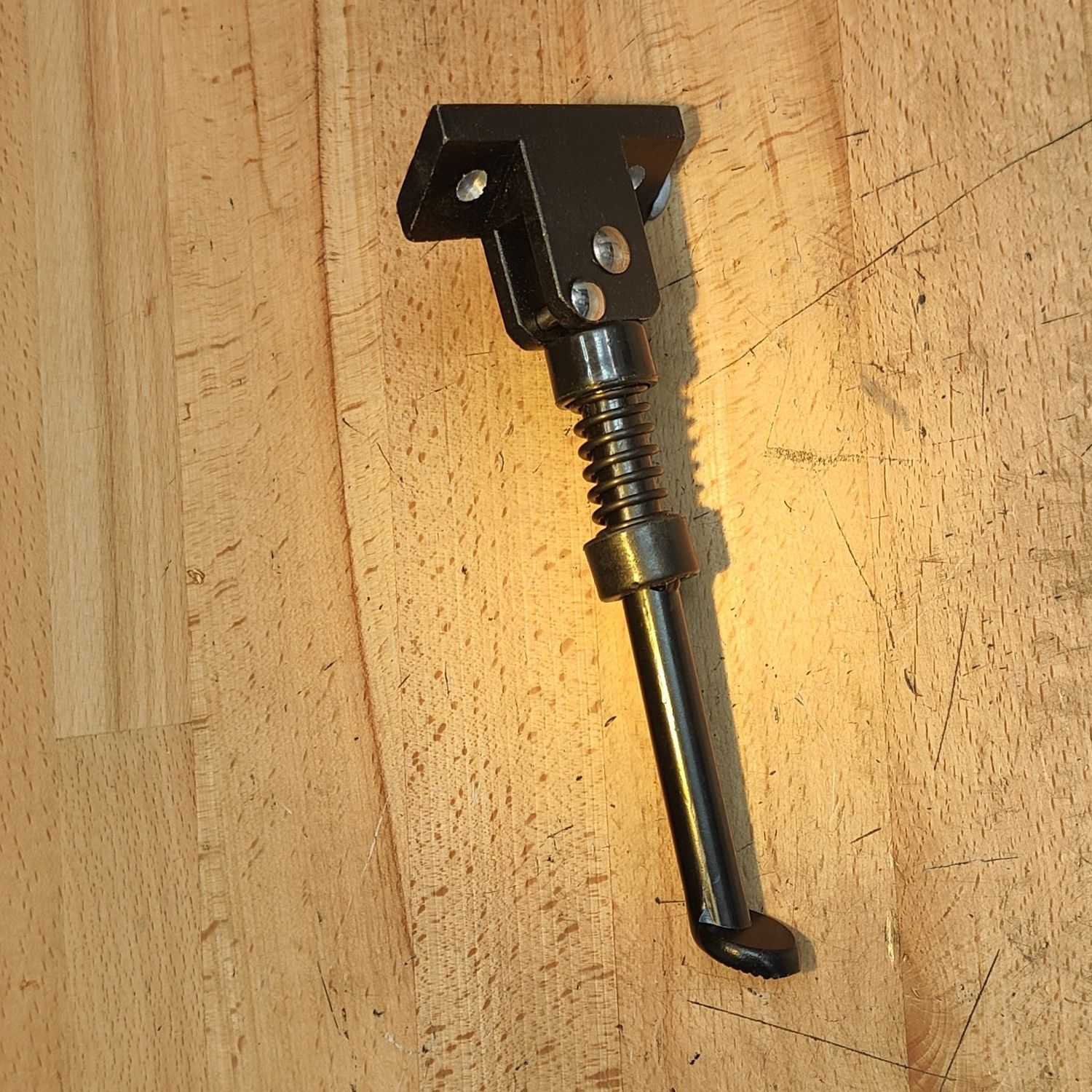

Kick Stand (suit DDM-T10 Zero 10X & T10 Zero 10)

• This Kick Stand suits:
  • T10-DDM models such as Zero 10X and other ODM's such as Dragon Hunter X10, Bexley & Black Edition 10X and MiniWalker ODM's
  • T10 models such as Zero 10.
• Will also suit any other model that adopts this shape, length (approximately 160mm) with 40mm centres between 6mm holes.

Notes:

1. A slight length adjustment by way of varying the angle up to 10% can be made to impact the length by bending the stand towards or away from the scooter when in the standing position. To do this, apply front brake and stand the scooter on the front wheel and stand so that the rear tyre is off the ground, then apply force to the appropriate side of the rear to change the angle of the stand.
2. This video shows the shorter stand prior to early 2022 vs the longer subsequent:
3. A similar shape stand is also available of longer 180mm length as Kick Stand (suit VDM-10 Dragon Raptor / Kaabo Mantis 10). That stand is shown by comparison in last product image.
4. Notes relating to the various Zero models:
   1. T8 models of Zero 8 are not supported: Two different stands are required for these models. Those prior to 2019 attached to side of frame with flat plate (discontinued), later models are perpendicular approx. 185mm length attach to underside of the side channel (ref SSB:Z8013 image older).
   2. X8-DDM models of Zero 8X are not supported. Requires shorter SSB:Z18-B.
   3. T9 models of Zero 9 are not supported: Requires shorter SSB:Z9035.
   4. T10 models of Zero 10 are supported: Prior to introduction of the longer T10-DDM stand (early 2020), a T10 specific stand was required. That stand was 20mm shorter than the former T10-DDM stand at that time. As the T10-DDM subsequently transitioned to longer length, this newer T10-DDM stand is identical to the T10 stand (ref 1 & 2)
   5. Early T10-DDM models such as Zero 10X prior to early 2020 were fitted with shorter 170mm length stand. The Zero 10X Limited and models subsequent to early 2020 transitioned to the longer (current) 180mm length stand. The longer length is often retrofitted to provide less lean than the older shorter version (ref 1 & 2).
   6. X11-DDM model of Zero 11X are not supported. Totally different mounting (ref SSB:Z11X011).
