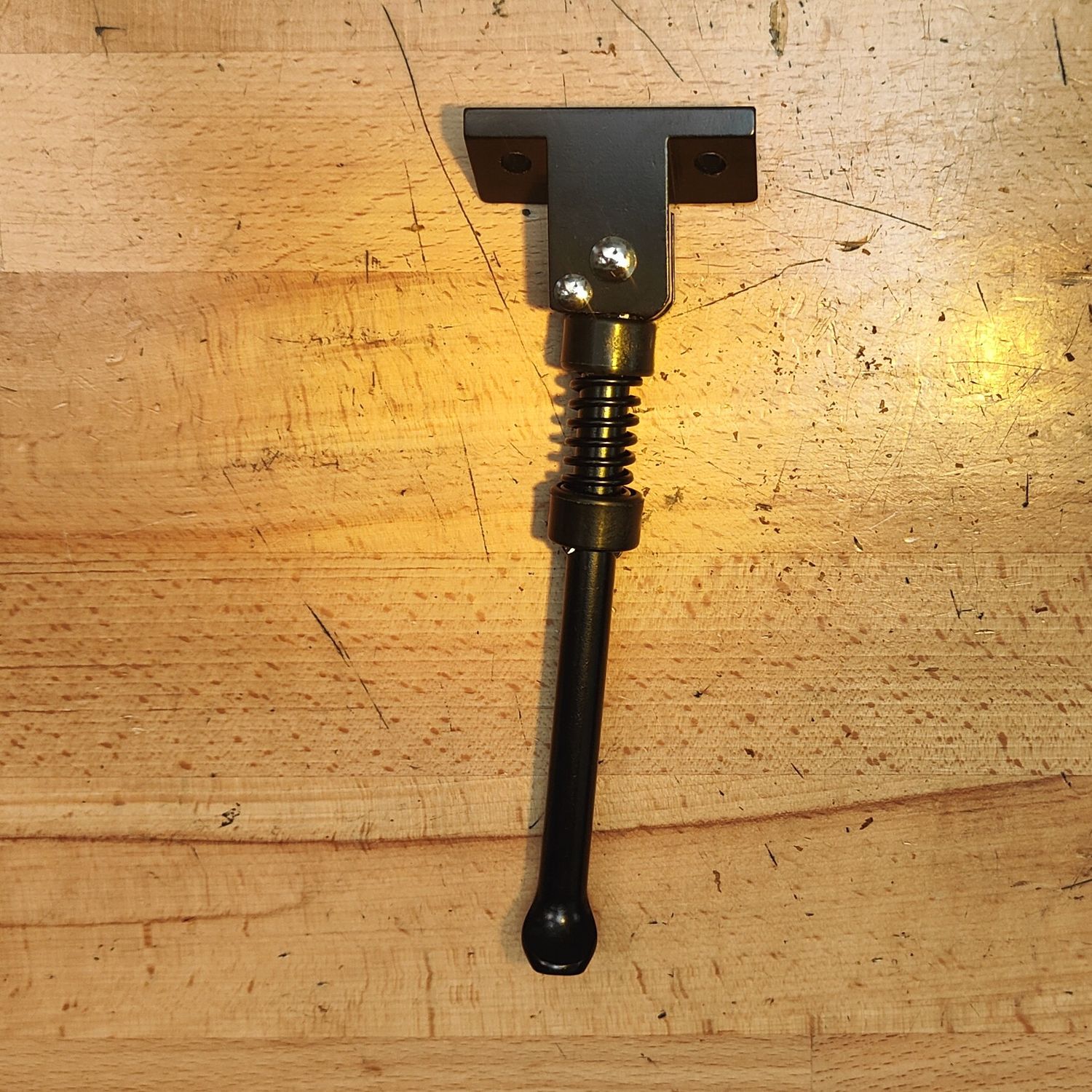

Kick Stand (suit VDM-10 Dragon Raptor / Kaabo Mantis 10)

• This Kick Stand suits:
  • VDM-10 including models of:
    • Dragon Raptor.
    • Apollo Ghost.
    • Carbon Oxy.
    • e-Glide MACH 10/10R.
    • Bolzzen Gladiator (and the former model Dynamo).

• Kaabo Mantis 10 series models.
• any other model that adopts this shape, length (approximately 180mm) with 40mm centres between 6mm holes.

Notes:

1. A slight length adjustment by way of varying the angle up to 10% can be made to impact the length by bending the stand towards or away from the scooter when in the standing position. To do this, apply front brake and stand the scooter on the front wheel and stand so that the rear tyre is off the ground, then apply force to the appropriate side of the rear to change the angle of the stand.
2. There are a few techniques that can be applied to assist threading the screws into the bracket/plate that resides behind the surface of the side channel as shown in this video for VDM-10 (Apollo Ghost).

3. A similar stand, of shorter 160mm length is available as T10-DDM (Zero 10X) stand, shown by comparison in last product image.
