Kaabo Wolf Warrior Pair Screw suit 11/GT

Pair screws and rear shock bracket for Kaabo Wolf Warrior 11 (including King) and Wolf Warrior GT (including King GT).

• Genuine Kaabo factory spares. Refer to GT BOM for build-of-materials diagram.
• Pair screws ("bolts") which comprise hollow tube, screws for each end and in some instances a self-lubricating bearing:

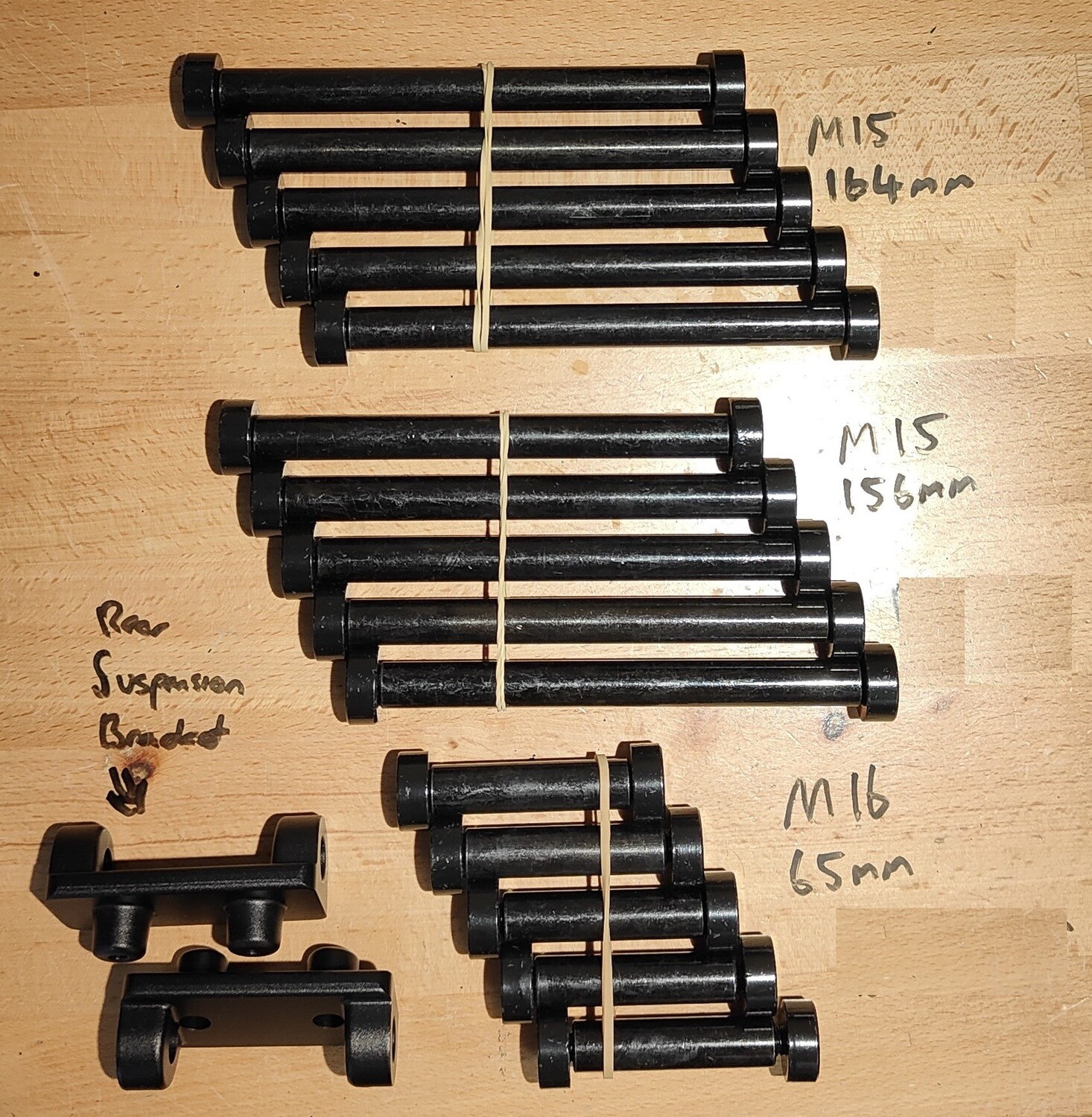

• Horizontal M12 x 158mm (BOM item 87). Rear shock bracket bolt (along the swing arm) that holds the rear shock bracket (BOM item 96). This one is not shown on the product image. It is supported by bushings (self-lubricating bearings) that reside in swing arms and the 1210 in the shock bracket.

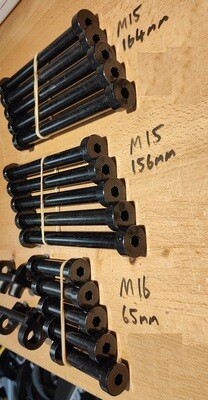

• Horizontal M15 x 164mm (BOM item 99). Swing arm bolt (attaches end of swing arm to rear main body BOM 48 via ball bearing).
• Vertical M15 x 156mm (BOM item 50). For stem rotating part - head sits inside front fender.
• Horizontal M16 x 65mm (BOM item 51). Folding mechanism - secures front body connection frame (BOM item 35) to Rotary Head (BOM item 49).

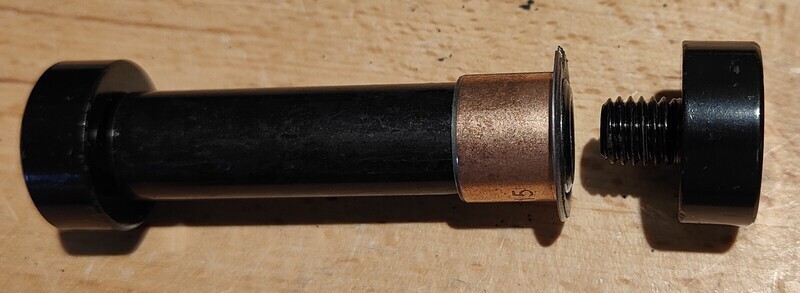

  • Available with or without a pair of 1615 flanged self lubricating bearing (sleeve). This bearing also suits rotary head (BOM item 49). If renewing folding mechanism screw (BOM item 51), consider renewing this sleeve pair. 24mm flanged diameter, 18mm external diameter, 16mm internal diameter and 15mm length.

Rear shock bracket that seats the spring/suspension:

• Rear shock bracket (BOM item 96). Available with or without factory pressed non-flanged 1210 self lubricating bearing (BOM item 97) to support M12 x 158mm pair screw (BOM 87).

Notes:

• Pair screw sizing convention is the outer diameter of hollow rod (e.g. M15 = 15mm outer diameter) and length of the hollow rod (excluding screws). Screws are included with item but do not form part of the pair screw length (measurement).
• These pair screws and shock bracket are typically only required due to damage from incident or being loose and dislodging. Check periodically, use thread locker and consider periodic replacement as part of service renewal as recommended by Kaabo Philippines.
• Regarding the Self Lubricating bearings (SLB):
  • The shock bracket and swing arms for the M12x158 use SLB. Shock bracket type 1210 = 14mm external diameter, 12mm internal diameter and 10mm length. Swing arm is identical but may have different length. Please add comment on order if you need the SLB's for swing arm.
  • End of swing arm for same diameter but unknown (leave comment on order with length can check if have on hand).
• If tearing down the rear end, inspect suspension bushings and renew with TurboTouch Rear Suspension Kit for Kaabo Wolf Warrior 11/GT.
• This video takes you through the stem rotating part and stem folding mechanism renewal process.
