T10-DDM Motor Rim Cover (suit Zero 10X, Dragon Hunter X10, early VSETT 10+)

• The T10-DDM Motor Rim Cover (suit Zero 10X, Dragon Hunter X10, early VSETT 10+) is the detachable split rim that suits Zero 10X and other ODM's such as Dragon Hunter X10, Apollo Pro & Explore, Bexley & Black Edition 10X & MiniWalker Tiger 10 Pro+. Also suits early model VSETT 10+ (later models require different Rim Cover).
• Note there are two variants due to two generations of motors on the T10-DDM builds:
  • Suit Older version motor (HM) including early VSETT 10+: has hole for valve in Motor Rim Cover, is black colour tube-side and there are six extrusions for the rim bolts. Motor hub housing has two distinct silver rings on the motor wire side with HMDDM nameplate. As shown on left in first few product images and the first set of photo's that follow.

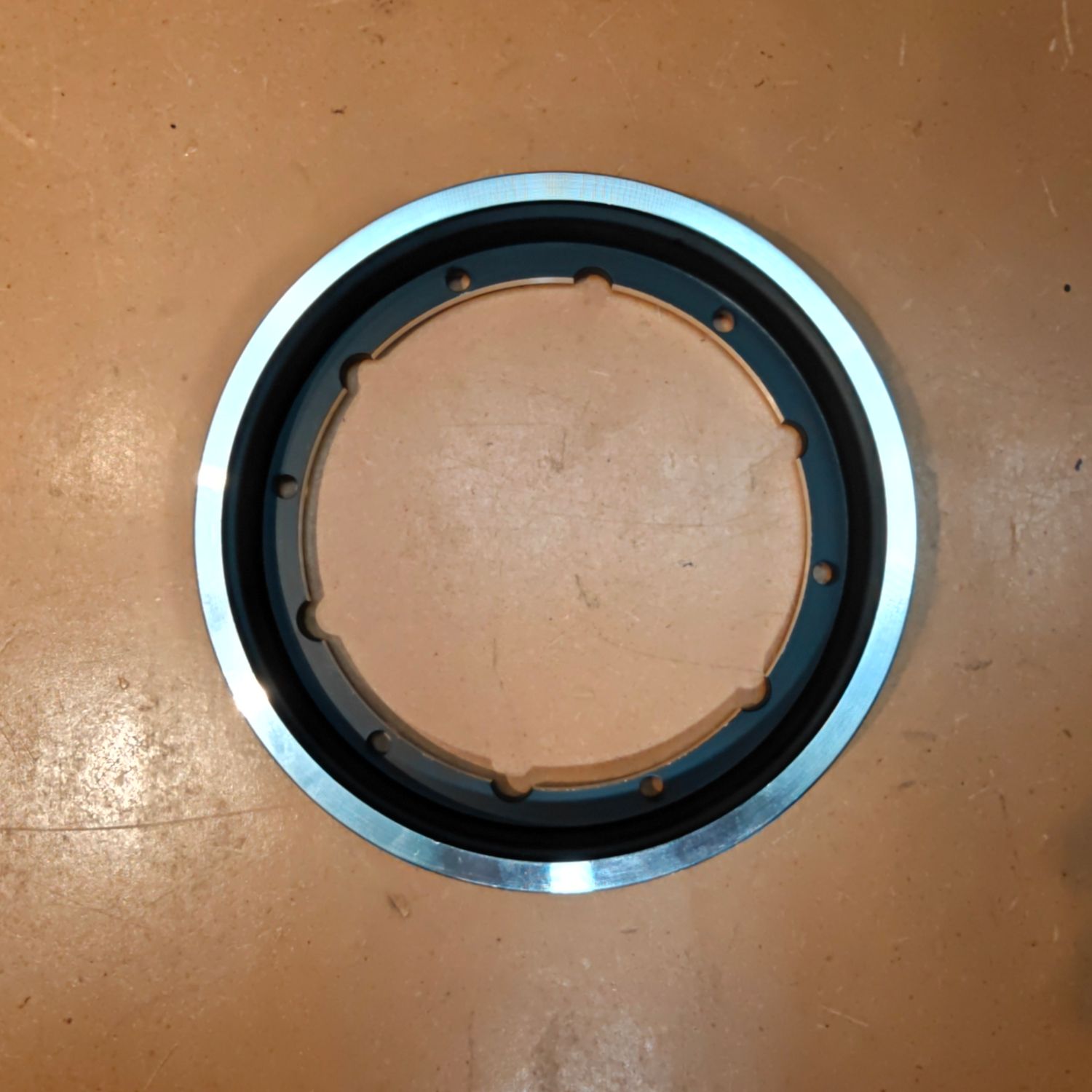

  • Suit Current version motor (WT): Has no hole for valve in the Motor Rim Cover, silver colour tube-side and holes for the six rim bolts are on the plate. Motor hub has no silver rings on the motor wire side with LGSDDM nameplate. As shown on right in first few product images and the last set of photo's.
• Includes 6 Rim Cover bolts, M5 x 20mm socket head (longer such as 25mm can be fitted).

Notes:

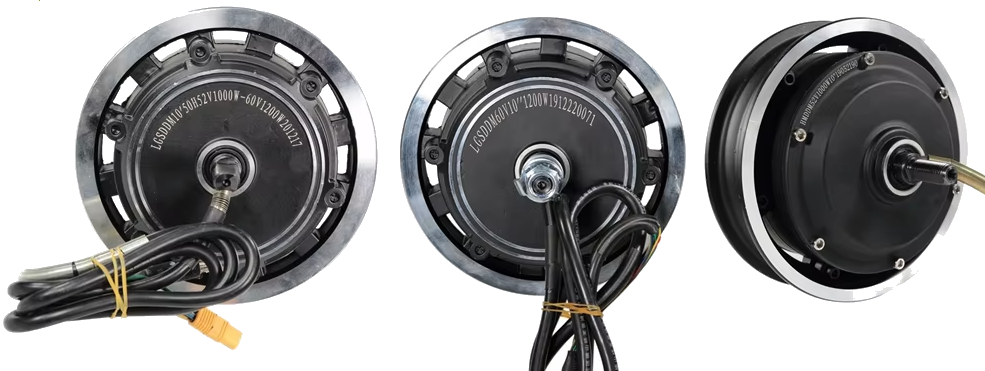

1. Current version motors (WT) are shown below on left and center with LGSDDM nameplate. The older motor version (HM) is shown on right will often have nameplate HMDDM52V1000W10"xxxxxxxx.




2. Typically required when original rim cover has physical damage from impact. Low tyre pressure and/or loose split rim screws can contribute to failure. When securing split rim screws, ensure even pressure is applied, apply thread locker and check screws are tight frequently until bedded in.
