Technical resources (artefacts etc) for Teverun eScooters including Fighter Series.

Facebook communities:

Official: Teverun Electric Scooters International

Blade/Teverun Scooter Community (GT, GT+, Z, 10, X)

Teverun Fighter Supreme 7260R

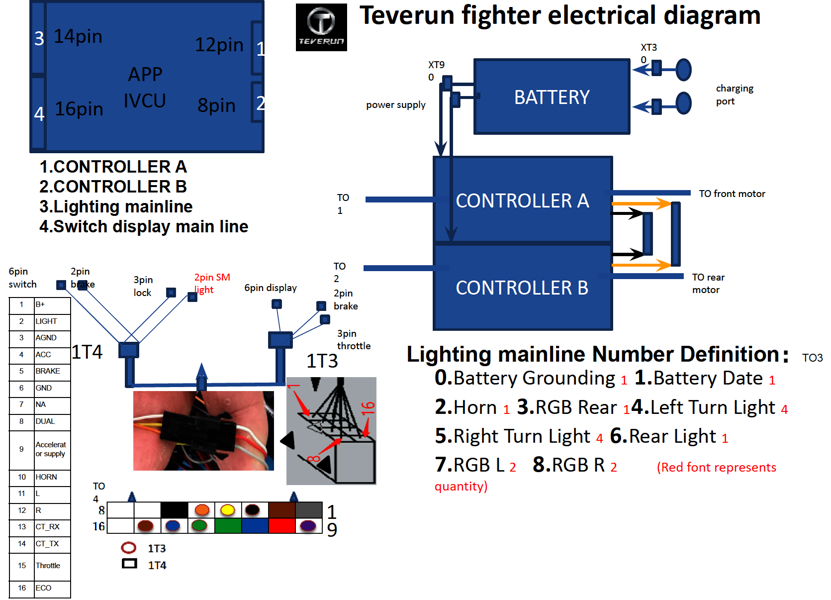

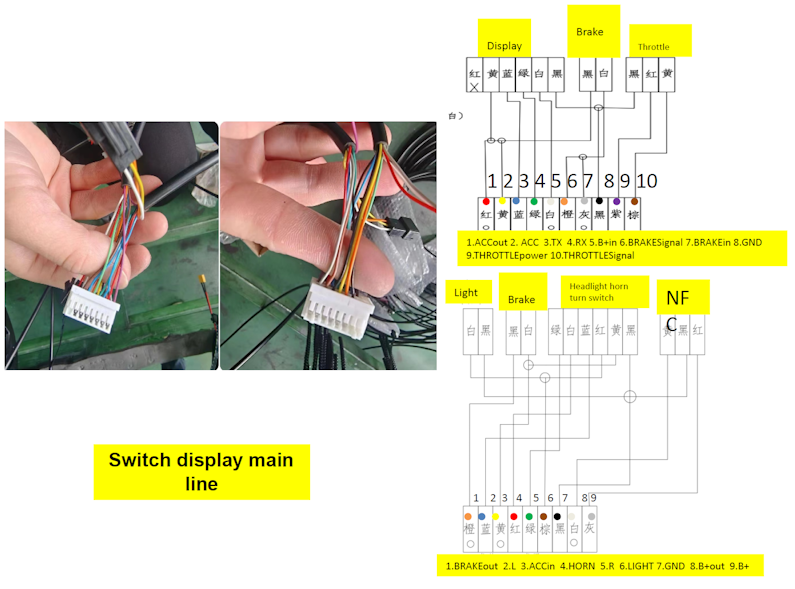

Teverun Fighter Electrical Diagram with IVCU

产品电气连接图 (Product electrical connection diagram)
Courtesy arising from Sef H Ghaith in Teverun Electric Scooters International

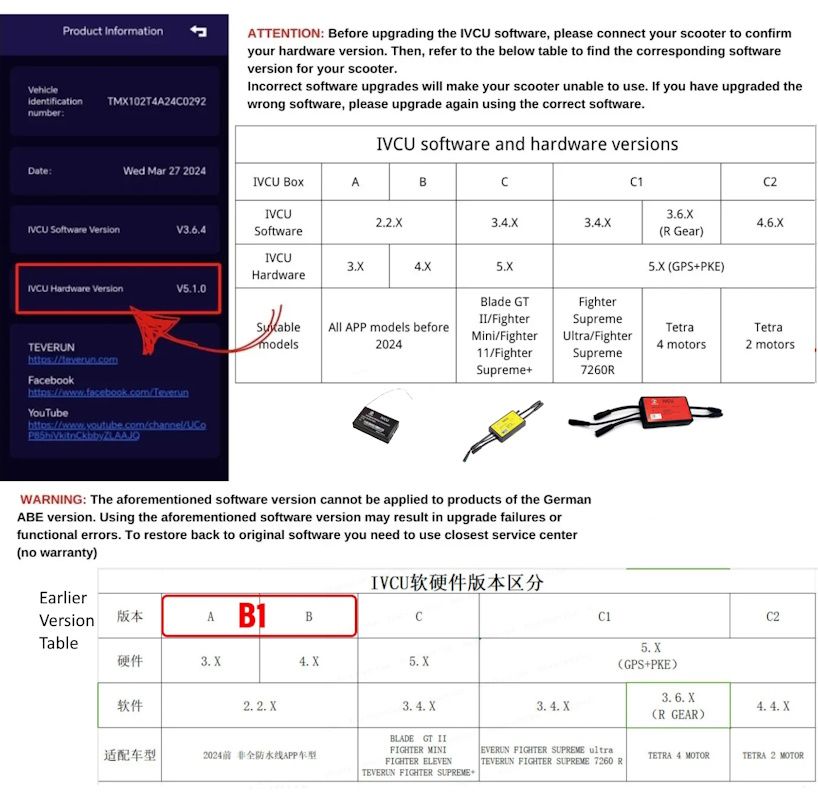

IVCU images.

Note three variants at Flame Wheel Store,

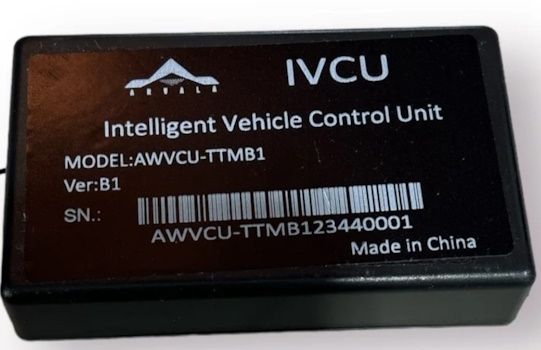

V3/V4, 2023 App Models (image B1 shown below)

V5 (C), Blade GT II, Teverun Fighter Mini/11, Teverun Fighter Supreme+

and V5 with GPS+PKE (C1): Teverun Fighter Supreme Ultra/7260R and Teverun Tetra

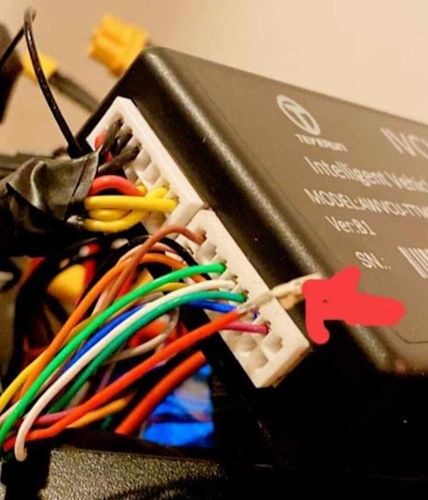

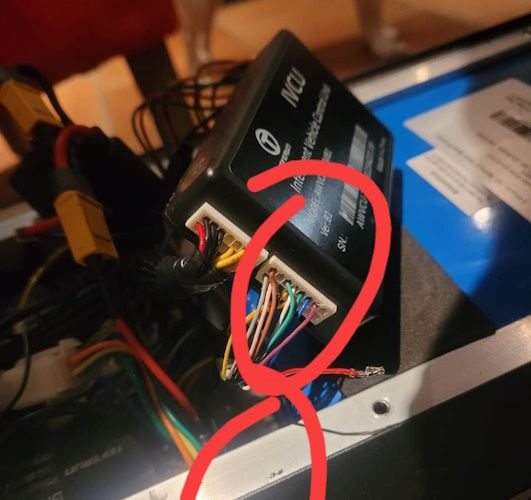

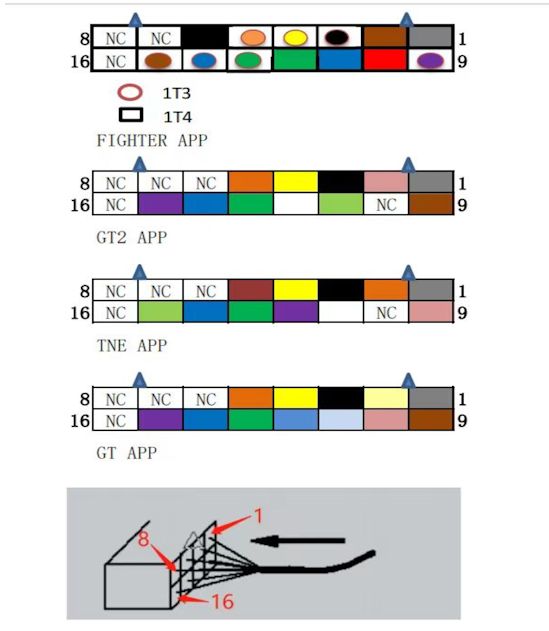

It is observed the red wire in images shown below is not connected.

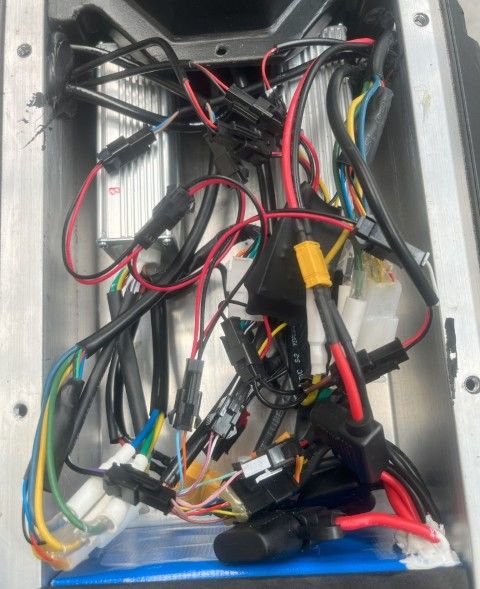

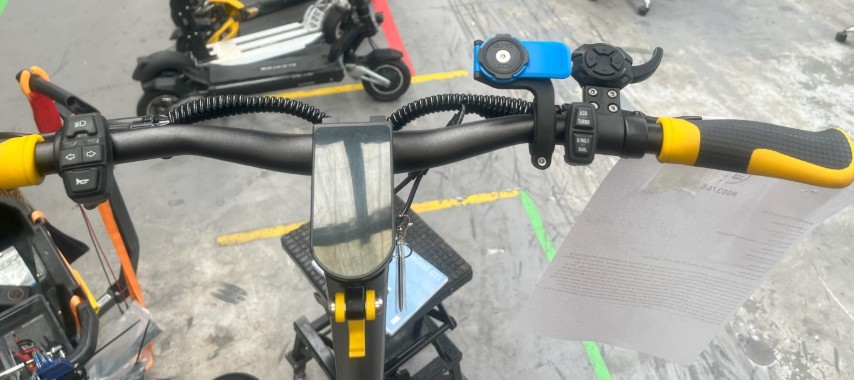

Teverun Blade Mini observed electrical
Courtesy Kev at Scooteroo
