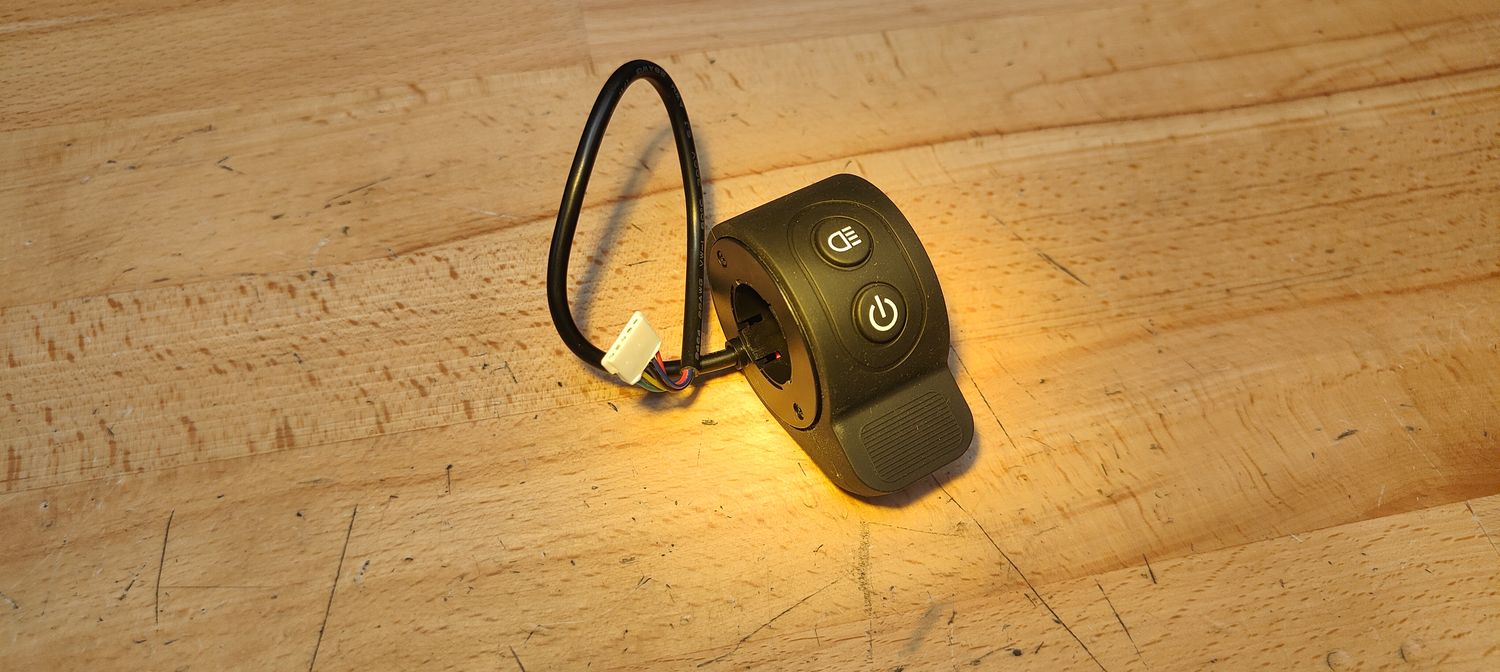

Throttle with 2 buttons (5-pin)

• The Throttle with 2 buttons (5-pin) is a common throttle mechanism with switch assembly used in simple, entry-level electric scooters.
• Features two momentary (non-latching buttons) which are typically used to Power-ON/OFF (and change mode) and turn on/off lights.
• Vertical, push down style throttle mechanism.
• Typically fitted to retrofit where the original throttle is damaged and the original is readily available as spare part.

Notes:

1. Supplied as OEM factory spare for NG Mobility HX X7 and X8 model electric scooter with white plug to suit. Typically re-wired for use in other makes/models as throttle operates universally on 5VDC. Wiring is tested as:
   1. Blue - Throttle Signal
   2. Yellow - Power Button (to black)
   3. Green - Light Button (to black)
   4. Red
   5. Black

      The common convention for throttle signal wire is green, this throttle uses blue.
