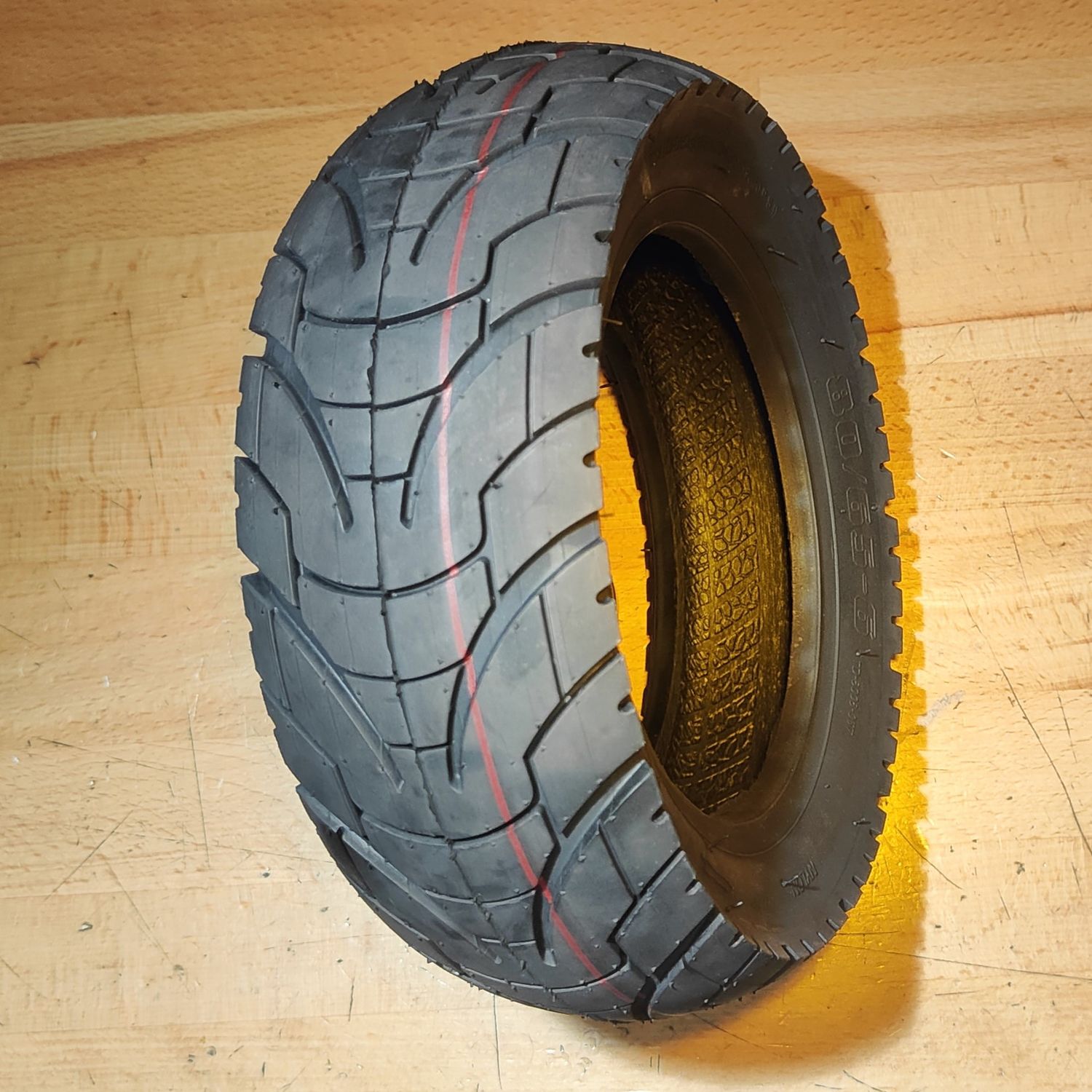

80/65-6 {10x3.0 255x80} Road Tyre (tube type) [Tuovt TD-8008 | Innova IA-1289]

• The 80/65-6 is a tubed road tyre for 6" rims. It is a popular "10x3" tubed urban road tyre on split rims and similar sized non-tubeless hubs. Compatible across 10x3.0 and 255x80 sizes.
• Suits:
  • Kaabo:
    • Wolf Warrior X series (all models including PLUS, PRO+, GT and Max).
    • Mantis models of 10 (including Solo, Duo, Pro, Elite, SE & Lite), King GT & X (all except 8 or Urban).
    • Skywalker / Sky 10C, 10H & 10S.
  • Dragon:
    • Raptor series and other VDM-10 ODM's such as Apollo Ghost, Carbon Oxy 10 Pro series, Bolzzen Dynamo & Gladiator and e-Glide Mach 10 & 10R.
    • Slayer and other Joyor S Series ODM's such as 1st gen Bolzzen Commando.
    • Eagle.
    • GTS (including V2).
  • Mukuta 10+.
  • VSETT 10+ (except APEX).
  • Zero:
    • 10X and other T10-DDM ODM's such as Dragon Hunter X10, MiniWalker, 10X Black Edition & Bexley 10X.
    • 10 and other T10 ODM's such as Bexley 10.
  • Teverun:
    • Fighter Mini Series (including Pro).
    • Blade Mini and TNE ODM's of Bolzzen Commando (2nd gen) models of 4818 (in in lieu of 9x3.00-6, with spaced fender) and 4823 Elite (stock tyre, has factory-fitted spaced fender).
  • Apollo:
    • Phantom (V1, V2, V3 & V4) and 2.0 (54V) (all except 2.0 Stellar) and other ODM's such as Carbon Nitro series and Bexley Blackhawk series.
  • Inokim:
    • OX (including Eco & Super) and OXO (Hero, Super & Super Carbon 2025).

• MiniMotors:
  • Dualtron Victor, Spider (with spaced fender) and Blutran Lightning.
• Other models such as Bolzzen Phoenix series and forementioned models of Commando. Mercane G2 Max and other ODM's such as KuKirin G2 Max and Veloz G3. Elektro Ultra 10 Pro series. Voltrium Ion Max series. Machine Fox and X Transporter.

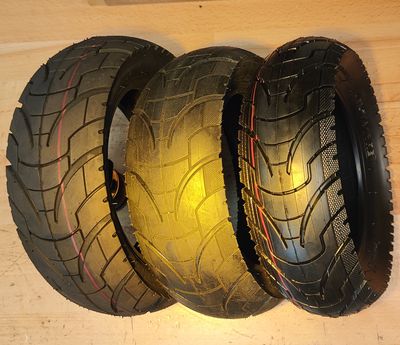

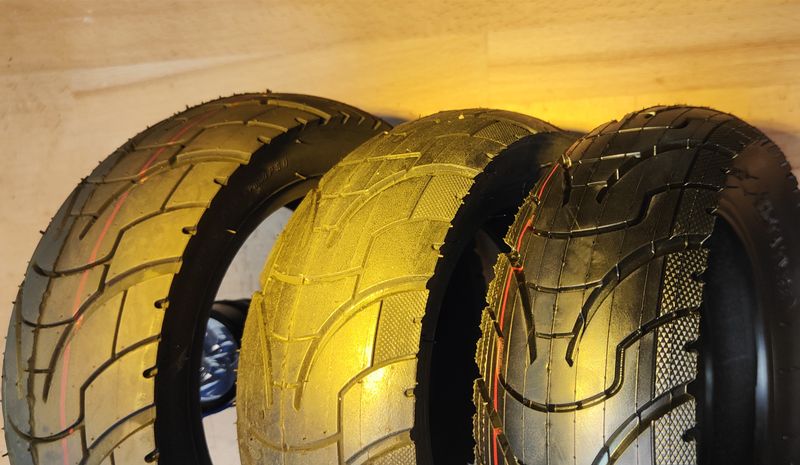

• Available in variants of:

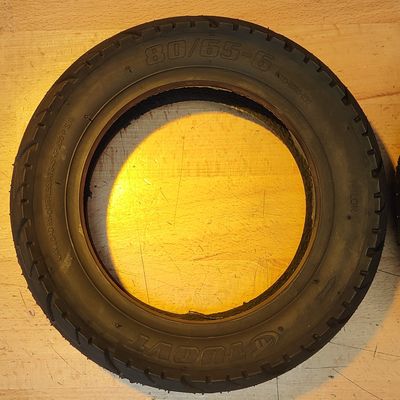

  • Tuovt TD-8008 768 grams. eSN's recommended variant, heaviest
    Observed uninflated width of 81mm.

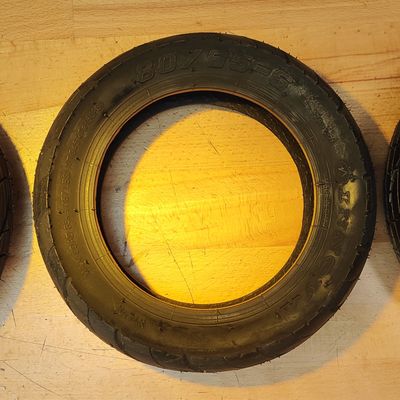

  • Innova IA-1289 690 grams. Has half texture on the surface near the edges.
    Uninflated width of 76mm, helps clear Kaabo Mantis 10 swing arms.

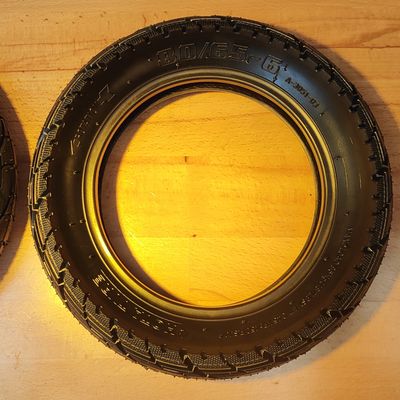

  • Hota HOTA A-3051 680 grams. Has full texture on the surface near the edges.
• Red line (Tuovt & Hota).

Notes:

1. Sidewall nameplate is 80/65-6, the Tuovt will often have a white 255x80 marking on the surface of the tyre.
2. Distributor specification: Outer diameter: 250mm, Inner diameter: 150mm, Tyre width: 84mm. eScootNow measures 152mm inner diameter, inflated width of 77mm (3.03") and the thickness at "bead" is 6mm as expected for a tube type tyre.
3. This tyre is often fitted in lieu of 10x2.5 tyres where there is sufficient clearance. Models such as Zero 10X and Kaabo Mantis 10 were factory fitted with either CST 10x2.5, Tuovt 10x3.0 or this 80/65-6.
4. The comparable Tuovt Semi Off-Road is the Tuovt 255x80 and Full Off-Road 10x3.0.

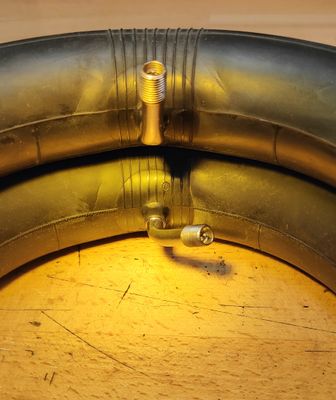

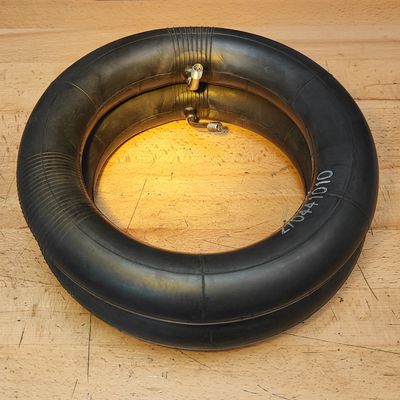

5. eScootNow recommends 10x2.5" Thickened or Ultra-Thickened tubes to accompany this tyre. 10x3 tubes are typically too large.
6. This size tyre also produced by Xuancheng XC-1016S (tube type) & XC-8016 (tubeless). There is also a Minimotors branded version of the Tuovt TD-8008. The Innova was typically stock on Kaabo and VSETT 10+ and rebranded as MiniMotors on Bluetran Lightning.
