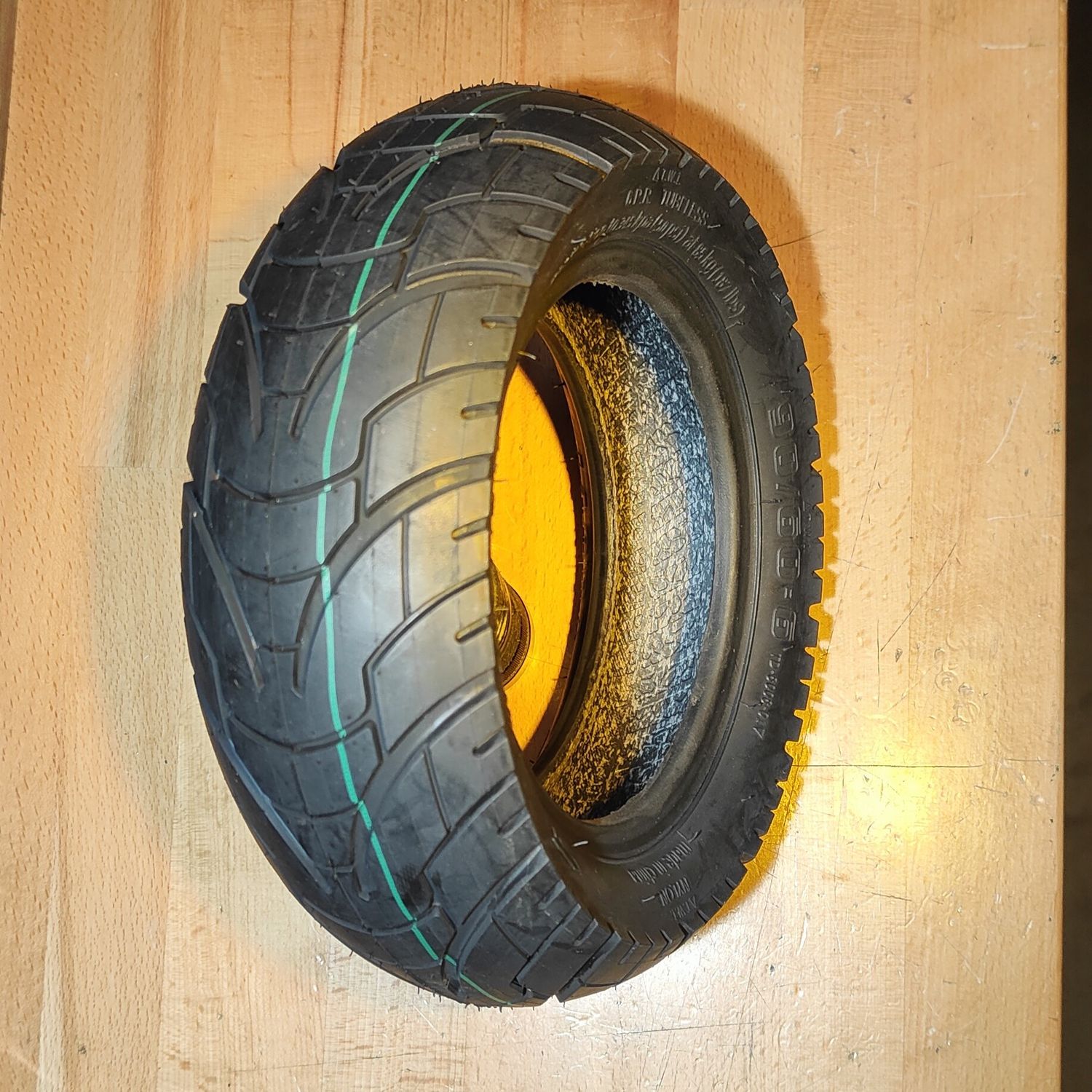

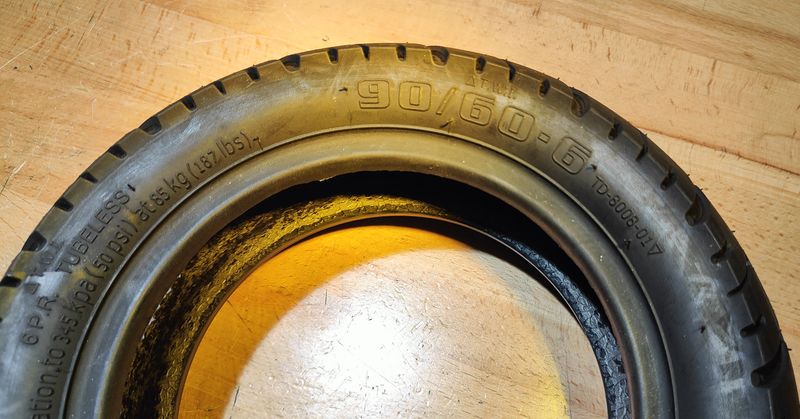

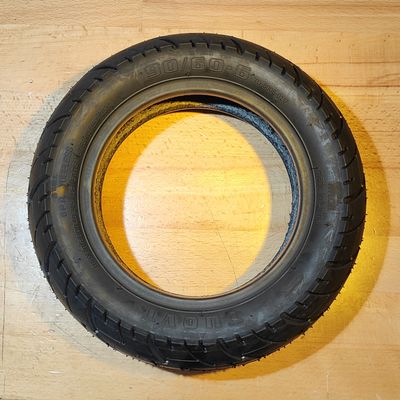

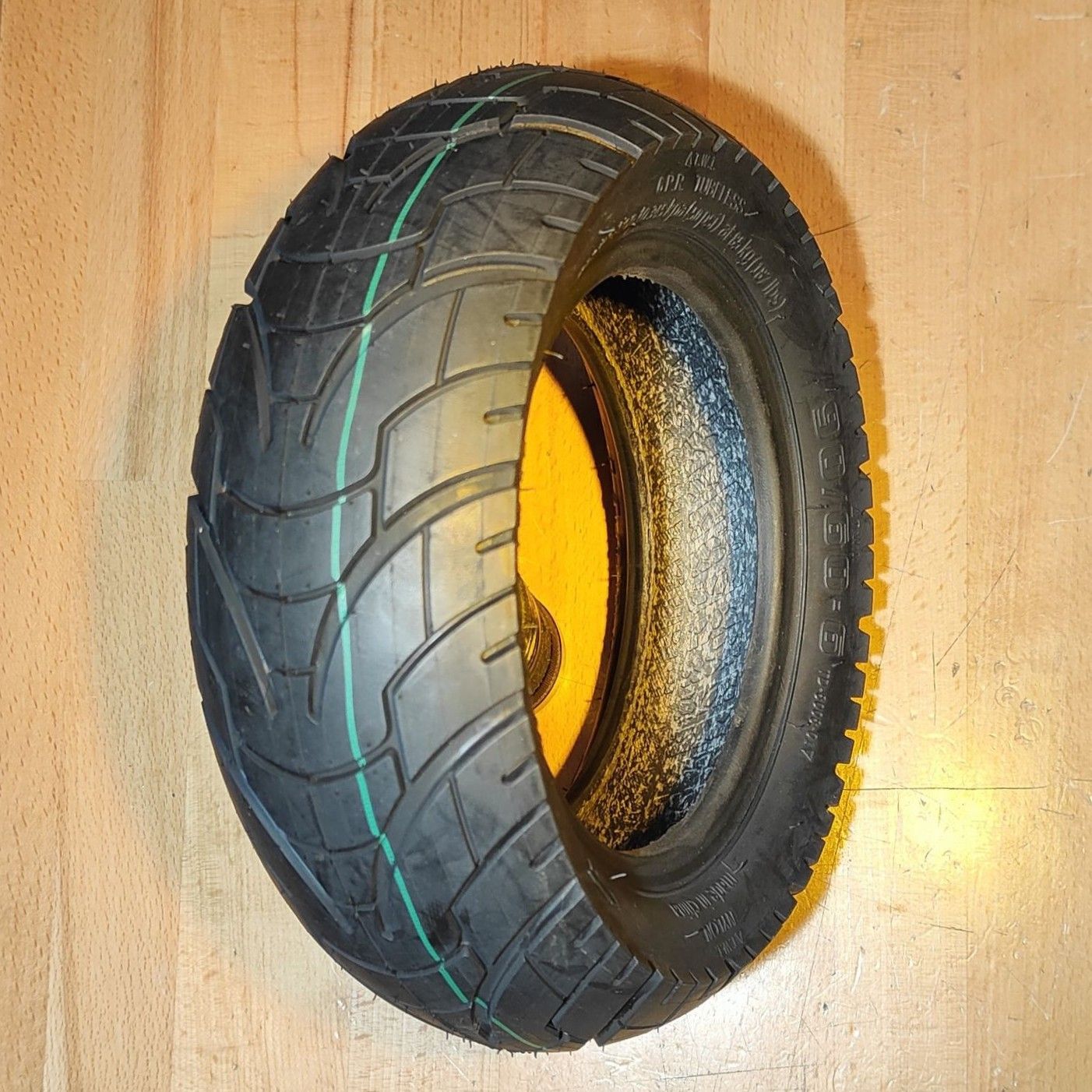

Tuovt 90/60-6 Road Tyre (tubeless) [TD-8008]

• This tyre is the "bigger brother", slightly larger version of the popular 10x3 "Urban Wide" Tubed 80/65-6 which is a well regarded, excellent "all-purpose", standard tyre for general eScooter urban use with good endurance (life / wear). Can often be fitted as an uplift from the traditional size 10x3's and will suit some narrower tubeless hubs.

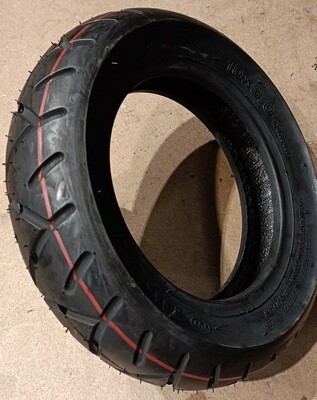

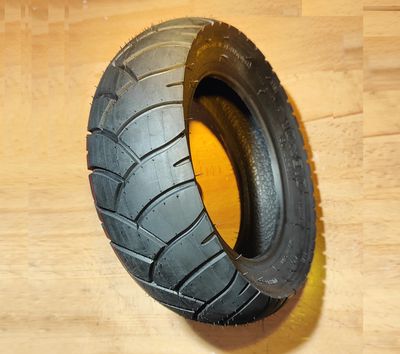

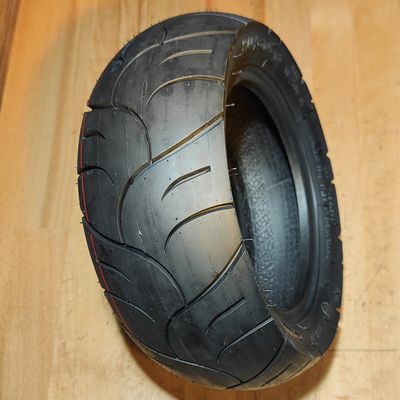

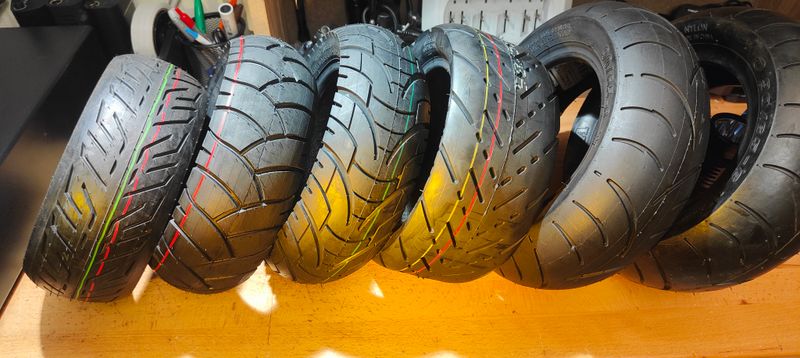

Tuovt 10" Road Variant	80/65-6 (10x3)	90/60-6 (this tyre)	90/55-6 (10x3.54")
Line (colourway)	Red	Blue	Red/Yellow
Application	Tubed (only)	Tubeless (tube can be fitted)	Tubeless (tube can be fitted)
Width at bead	45mm	50mm	68mm
Weight (grams)	768g	868g	983g
Diameter (typical inflated)	254mm	266mm	252mm
Width (nameplate/inflated)	80mm/ 75-78mm	90mm/ 82-86mm	90mm/ 86-88mm

• 90/60-6 is a relatively new size (as is the DynoRoad SMH-U by ULIP). The book of knowledge of existing supported makes/model eScooters that can accommodate this tyre is limited as they are mostly designed for smaller tyres. This 90/60-6 size is well suited for VSETT 10+, Makuta 10+, the T10-DDM (Zero 10X & Dragon Hunter X10, 10X Black Edition, MiniWalker etc) as it is narrow enough at bead to accommodate typical narrower tubed rims and that model has good clearance around suspension and swing arms / fenders. Likewise will fit Apollo Pro. *Will fit Dragon Predator (rear clears, font TBD as there is less clearance on front). Dragon Predator (especially rear where there is more clearance). Would unlikely clear the shock for Dragon Cyclone (10" modes including Cyclone Pro). Fitting to a Dragon GTR/GTS v2 would be experimental. These Dragon models are known to adequately suit the Tuovt 90/55-6 Road and Semi Off-Road tyre, reference the diameter and inflated width in table above (this /60 profile being slightly higher than the stock /55 tyres). May fit VDM-10 such as Dragon Raptor, Bolzzen Dynamo & Gladiator, & e-Glide Mach 10. The tyre width at rim is too narrow for wider hubs such as those in NAMI Klima. Not suitable for Kaabo Mantis 10 (too close for comfort to swing arm). Fits on front of Wolf X Series models.

• Where tube is to be fitted with this tyre, eSN recommends pairing with 10x2.5" or 10x3.0" tube for wider hubs.
• Urban wide style tread.

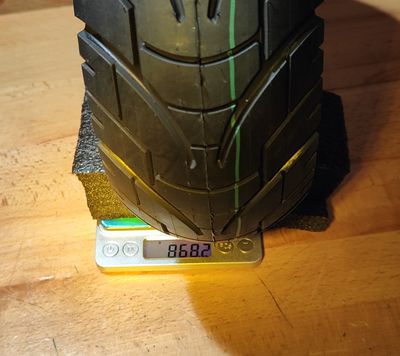

• Typical weight 868 grams.
• Blue line. Tubeless.
• 50PSI.

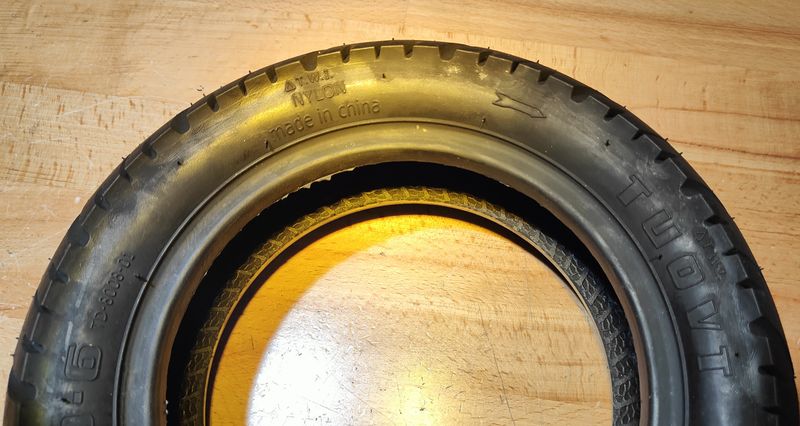

• Tuovt branded.
• Width at bead 50mm, making it narrower at rim than Tuovt 90/55-6 Road and Off-Road tyres (68mm) and CST 10x3.00-6 (63mm) but not as narrow as the PMT 10x3 (42mm) which was known to not hold seal at bead on the 70mm wide NAMI Klima rims.

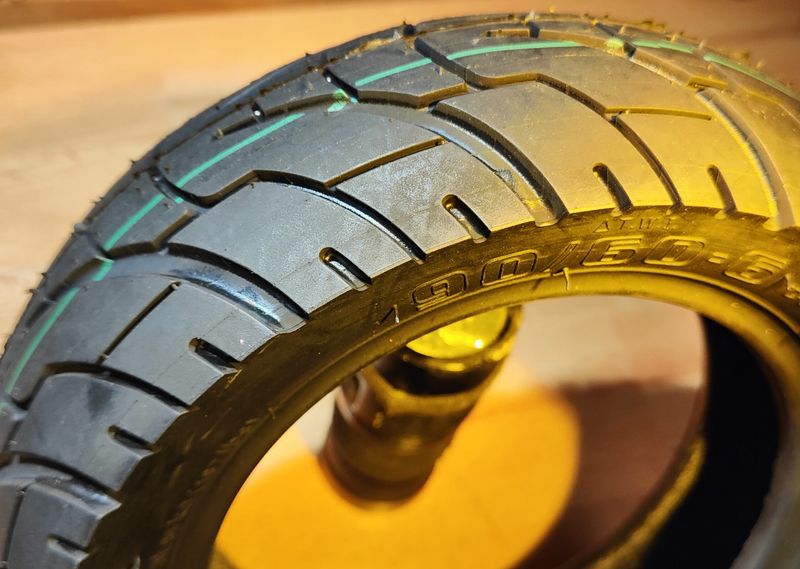

• This tyre has a relatively fine tread, with the centre relatively "slick" and relatively round contour for urban cornering. The tyre also offers pretty good rim protection due to the extra coverage near the sidewalls.

Notes:

1. Introduced early 2024.
2. On the numbers, by way of comparison to CST 10x3.00-6 (NAMI Klima stock tyre) which has 254mm inflated diameter (10"). This 90/60-6 will be around 260.4mm, allow potential for 266mm with inflation, then you would be seeking about 6mm clearance (radius) around that stock CST tyre to satisfy the higher profile of this 90/60-6.
