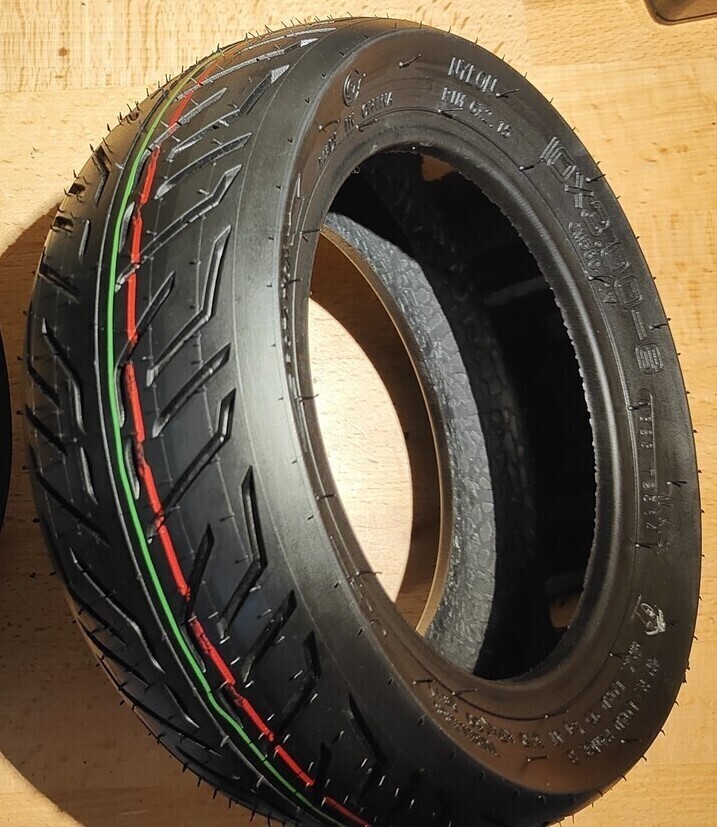

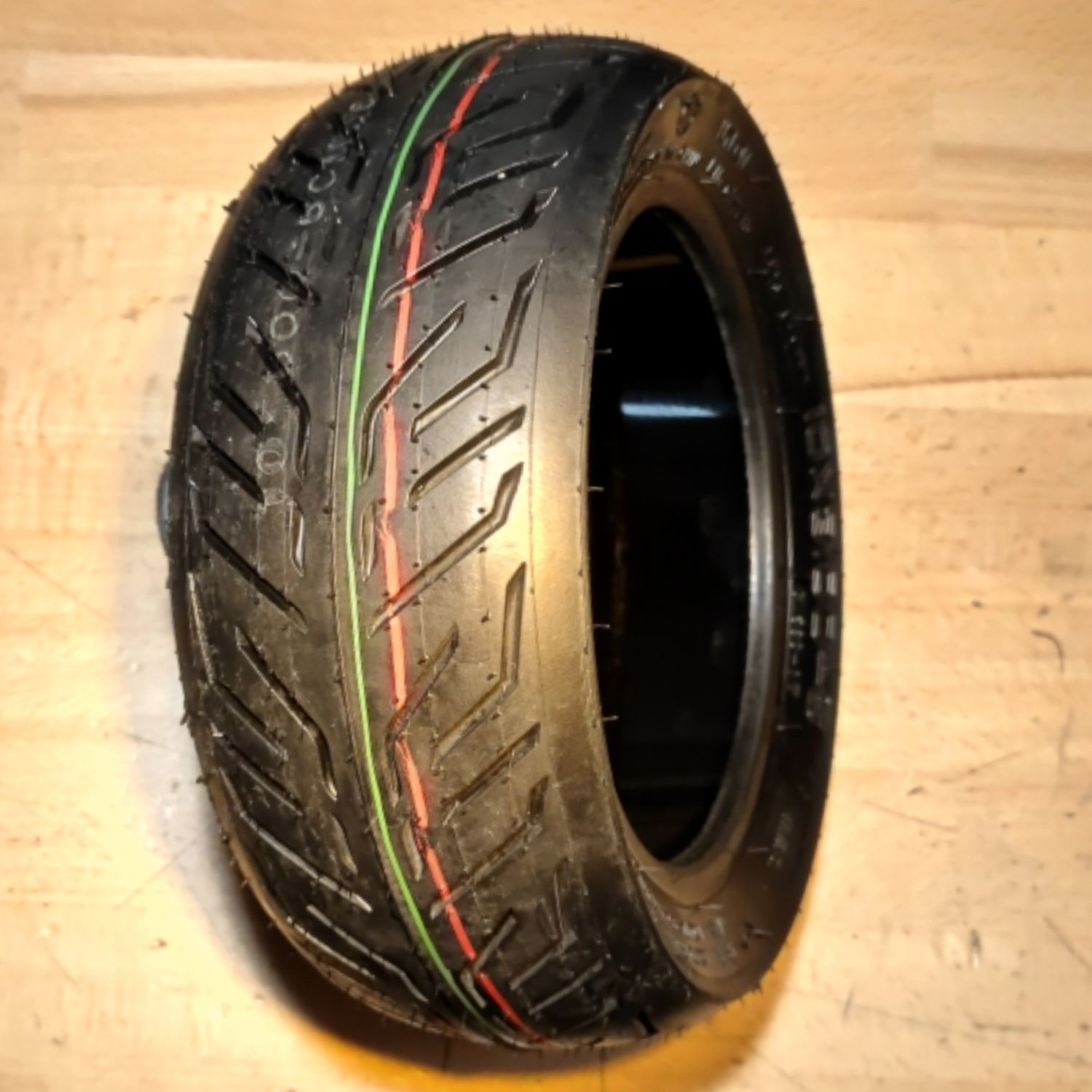

CST 10x3.00-6 Road Tyre (tubeless, SH) [CM560]

• Performance road tyre suit most full-size / full profile 10" scooters with 6" rim that is relatively wide. This is the stock factory fitted tyre on NAMI Klima models (with self-healing liner fitted).
  • Suits tubeless hubs such as those on NAMI Klima, Dragon GTR (including V2 as replacement to Chao Yang 80/60-6), Dragon Cyclone Pro and Dragon Predator (Tuovt 90/55-6).
  • The non-self healing variant is suitable for models such as Dragon GTS (non split rim) including V2, Kaabo Mantis 10 and Wolf Warrior X, VSETT 10+, T10-DDM such as Zero 10 & 10X, Dragon X10 & MiniWalker, VDM-10 such as Dragon Raptor, Bolzzen Dynamo & Gladiator & e-Glide Mach 10. Bolzzen Commando 10" / Dragon Slayer (Hota 80/65-6) and Mukuta (Tuovt 255x80). This is also the stock 10" tyre Teverun Blade X.

• Adopts shape and tread pattern offering impressive handling on hard surfaces (roads), especially in areas of straight line and cornering:
  • Minimal tread gaps across the centre to run quiet and reduce friction which improves efficiency (endurance / range) and helps maintain longevity of tyre (life / wear).
  • The shape under inflection is quite round and "pointy" which makes cornering more predictable as tyre maintains consistent surface contact and downforce when leaning through turns.
  • The tread towards the side of the tyre is also well suited for leaning into demanding corners - adhesion feels consistent into and out of turns due to the consistent tread pattern from centre to side of tyre.
  • These properties result in consistent downforce through cornering as the surface area does not change significantly when leaning in through turns.
  • The tyre also offers impressive puncture resistance as it is not too captive to sharp objects.
  • eScootNow tyre of the year 2022 award winner.

• Performance Road tread.

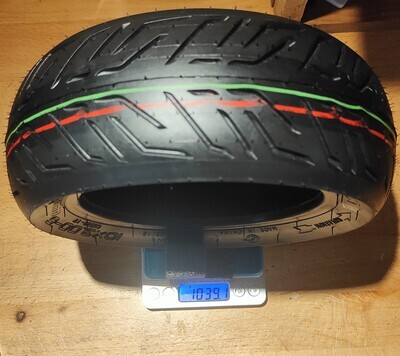

• Typical weight 1040 grams, inclusive of the self healing liner which weights around 292 grams. This tyre (excluding liner weight) is 21% heavier than a similar dimension PMT e-Fire 10x3.
• The self-healing lining is a thick lining of sticky stuff ("goo") that can assist seal punctures, also known as "puncture-proof" or "run flat". It has a higher viscosity than liquid sealants and typically will not run and damage hub alloy. If needing to fit to tubed hubs, consider the non-self healing variant which would accommodate Dragon GTS (non split rim) including V2, Kaabo Mantis 10 and Wolf Warrior X, VSETT 10+, T10-DDM such as Zero 10 & 10X, Dragon X10 & MiniWalker, VDM-10 such as Bolzzen Dynamo & Gladiator, Dragon Raptor & e-Glide Mach 10, Bolzzen Commando 10" / Dragon Slayer (Hota 80/65-6) and Mukuta (Tuovt 255x80).
• Red / green line. Tubeless.

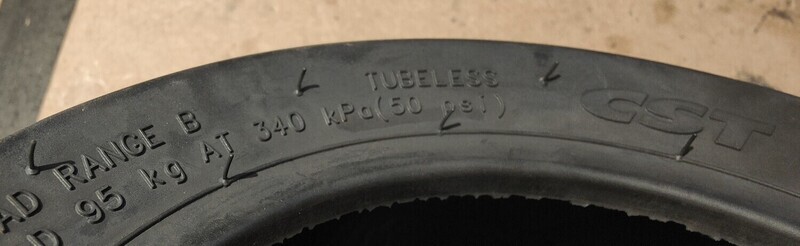

• CST brand. 50 PSI (relatively high pressure, low rolling resistance for optimised range / efficiency and rim protection).
• This tyre has an observed inflated diameter of 253mm (235mm uninflated), inflated width of 74mm (85mm uninflated) with an inner diameter of 147mm and width at rim (between bead) of 63mm. Nameplate 2.15" rim (55mm).
• With a curved shape and within the 10x3 footprint, this tyre provides good clearance of fender, calliper and suspension.
• Other road tyres that have a similar width at bead include the PMT e-Fire 10x3.5 R6.0 85/250, the wider Tuovt 90/55-6 which has excellent rim protection (but less performance) and where clearance allows relatively new, higher profile Tuovt 90/60-6 and DynoRoad 90/60-6 SHM-U (ULIP). The DynoSlick 90/65-6 is larger again.

Notes:

1. Images from Liam Hilderson at Kaabo Mantis King GT uplifting from the common 80/65-6 road tyre.

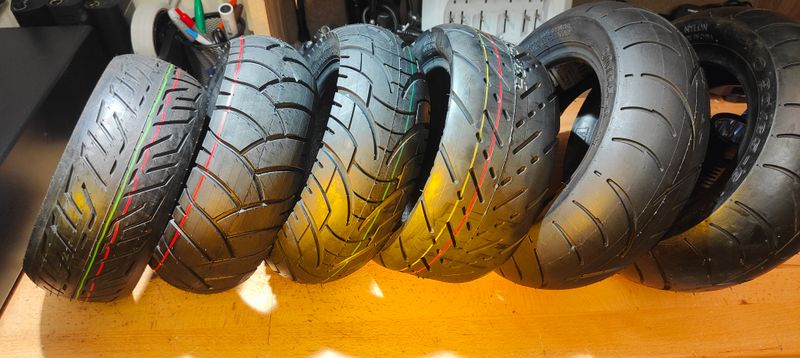

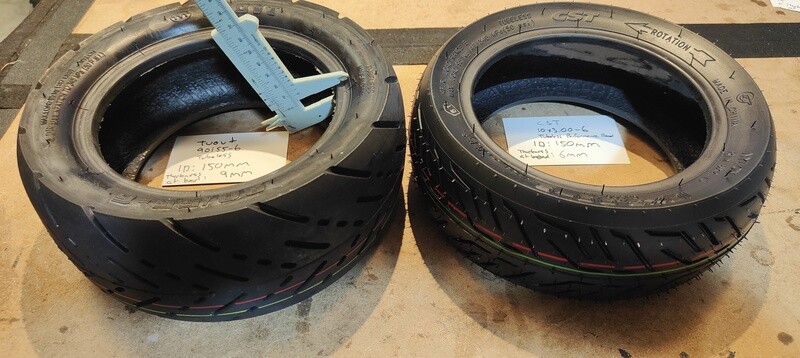

2. Comparative images of CST 10x3.00-6 (this tyre), Tuovt 90/55-6, DynoSlick 90/65-6 and PMT e-Fire 75/250R6.0 (10x3).
