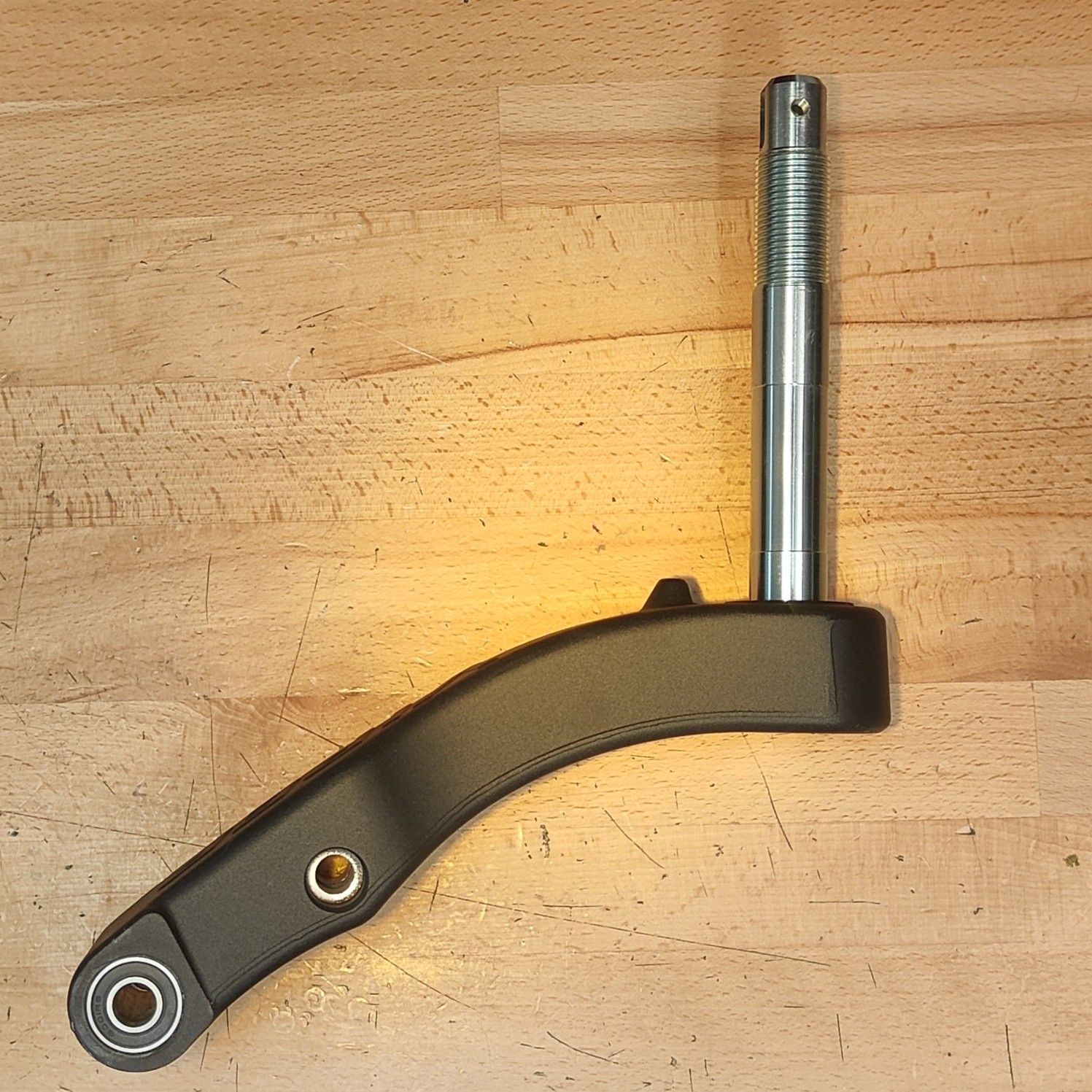

NAMI Front Rotate Arm (suit Burn-e)

• Front Rotate Arm suits all Burn-e models.
• Strengthened CR40 version (introduced late 2023 transition from 7075 aluminium version).
• Includes pair of factory fitted 6001RS bearings with 54mm alloy sleeve which accommodates the Shaft for Swing Arm.
• Typically required to replace the earlier, black core version that had structural integrity limitations.
• Genuine NAMI Electric factory spare.

Notes:

1. Bearing exchange procedure including front rotate arm remove/refit procedure:

   There is also a similar video for Blast.
2. Facebook Post accompanies above video showing the relevant Burn-e parts and tooling. Tooling further summarised by eScootNow in this Facebook Post showing bearing press, puller and removal tool. The three metal plates (discs) shown below are Bearing Covers.

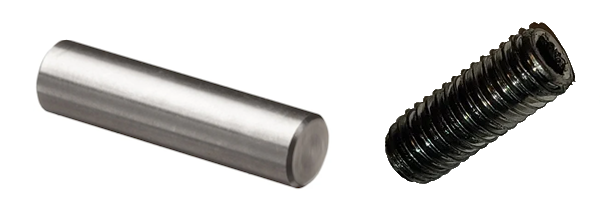

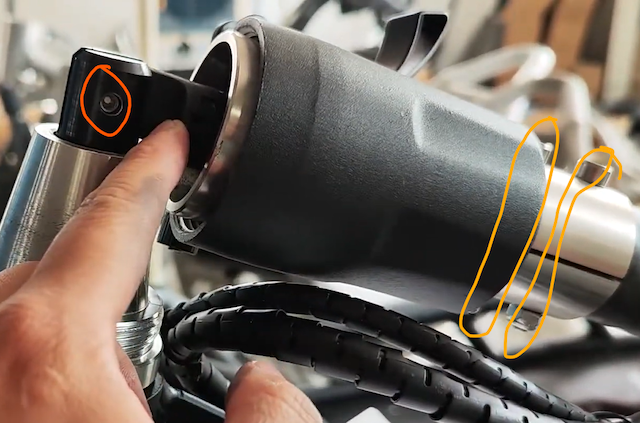

3. The hole at the top of the Front Rotate Arm secures the bottom of the Folding Latch, shown marked in red. V1 latch (plastic) has a non-threaded dowel pin (shown on left in 2nd image). V2 latch (black alloy as shown in first image) has a grub screw (as shown on right in 2nd image).




   The pins are erroneously described as Pin for the Steering Column by Fluid Freeride. The product of that name is erroreously named Steering Column Base Bolts.
