Bearing suit Steering Column Head Tube (steering column) NAMI Burn-e, Klima, Stellar & Blast {30205}

• The Bearing suit Steering Column Head Tube (steering column) NAMI Burn-e, Klima, Stellar & Blast {30205} is typically sourced to renew bearings in steering column.
• Includes inner and outer rings (a complete bearing). Two reside in steering column on the Front Rotate Arm (Burn-e), order qty 2 for entire scooter (both top and bottom).
• Genuine NAMI Electric factory spare.

Notes:

1. 30205: 25mm inner diameter, 52mm outer diameter, 15mm depth.
2. Bearing exchange procedure including front rotate arm remove/refit procedure:


   There is also a similar video for Blast

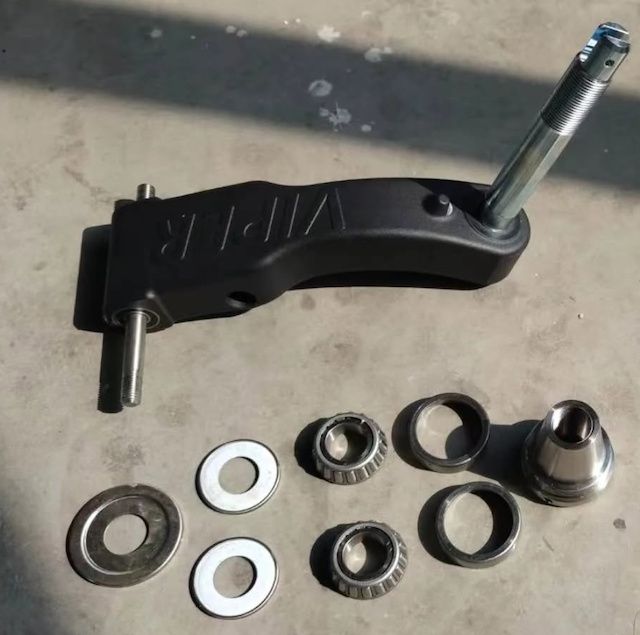

3. Facebook Post accompanies above video showing the relevant Burn-e parts and tooling. Tooling further summarised by eScootNow in this Facebook Post showing bearing press, puller and removal tool. The three metal plates (discs) shown below are Bearing Covers.
