Kaabo Wolf Motor Washer Kit (M14 Axil Shaft Hook Black) [TurboTight]

• The TurboTight Kaabo Wolf Motor Washer Kit is a complete set of Kaabo factory original OEM washers.
• These are sourced in bulk from the factory as Wolf Warrior 11 or GT spares and individually packed into appropriate quantities of each type of washer so that the kit contains a complete set as the factory intended.
• There are two kits:
  • The 8-piece, or.
  • The 9-piece which includes the silver 1.5mm round spacer washer.
• The kit accommodates both front and rear wheels and includes (as described for placement on Wolf models):

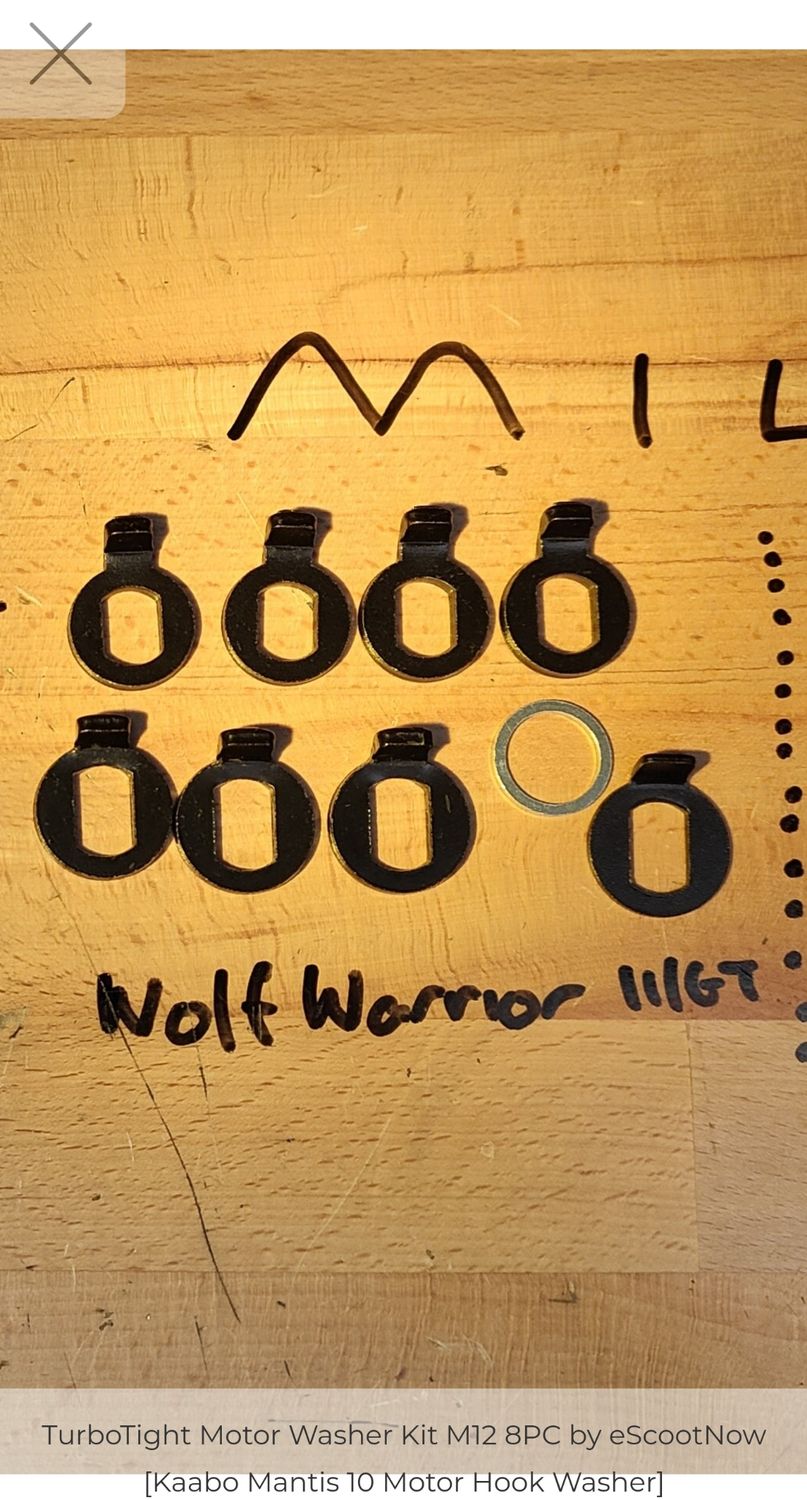

  • 7PCS Hook Washers 3mm thickness (black): 24mm outer diameter with 10mm keyway, height including the hook bend is 5mm:
    • 4PCS long, narrow hook (9mm width) which sit external (on the outside of frame / swing arms). These hook into the hole in the swing arm casting. The hook protrudes 7-13mm from inner diameter.
    • 3PCS short, wider hook (10mm width) which sits internally on the front between the "forks" and motor. The hook protrudes 3.8-9.3mm from inner diameter.
  • 1PC Hook Washer 2mm thickness (black): 26mm outer diameter with same 10mm keyway, similar 5mm height. This is a thinner washer with 10mm width. Sits internal (like the other three) and used in conjunction with the silver spacer washer to space the positioning of the motor hub from the "forks" to align front brake rotor / calliper. Length is short, protrudes 3.8-8.4mm from inner diameter.
  • 1PC Round Flat Spacer Washer (silver): 1.5mm thickness, 22mm outer diameter (aligns front brake). 17.2mm outer diameter. Used adjacent to the 2mm washer to provide 3.5mm spacing between chamfered edge at end of axil thread and "forks".
• Typically sourced to renew original washers if physically damaged including from being positioned incorrectly when tightening, missing, or to replace inappropriate sized washers.

Notes:

1. You see these listed by sellers such as this on AliExpress. Note the absence of long narrower washers in images. The description provides no clarity as to which washers are supplied.
2. The 4 narrow hook washers are relatively long compared to that in most other makes/models. For example, several mm longer than those on NAMI models which may assist with axil position to improve clearance between wheel and suspension compared to other hook washers.
3. Note the 16.8mm internal diameter is larger than that of necessary for M14, this allows for a couple of mm further positioning.
4. These washers differ to that used on Burn-e and Klima motors. ESN has the NAMI ones in stock, yet to add to store.
5. Also available in M12 size for most 10" models such as the Kaabo Mantis 10 Series.
6. Also known as hub motor assembly washer, axle fixing washer, motor locking washers, wheel locking motors and axil nut washers.
7. Hook washers retain the wheel in position and prevent the axil from spinning under throttle and braking. They secure the axil, shown at the front on the Kaabo Wolf Warrior GT diagram as BOM item number 74.
