Yuanxing 10x2.125" Tube Straight

• The Yuanxing 10x2.125" tube with straight valve suits models running 10x2.125" tyres such as:
  • Ninebot F Series such as F20, F25, F30, F40 & F65 and Ninebot D series such as D18, D28, D38.
  • InMotion Climber and Air Series (Air and Air Pro).

• Includes captive nut.
• Manufactured by Yuanxing with white nameplate marking YUAN XING, embossed with 102125-XX and blue line on underside.

Notes:

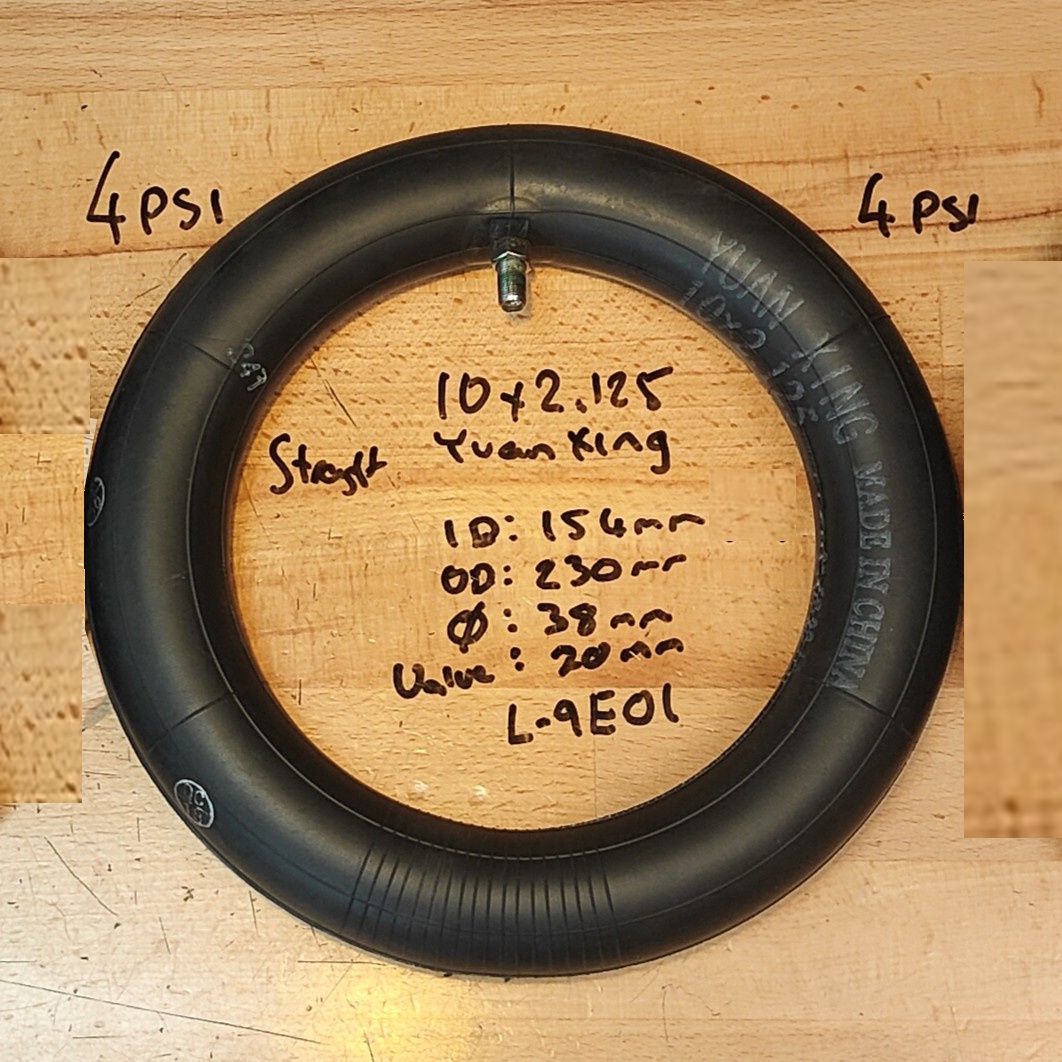

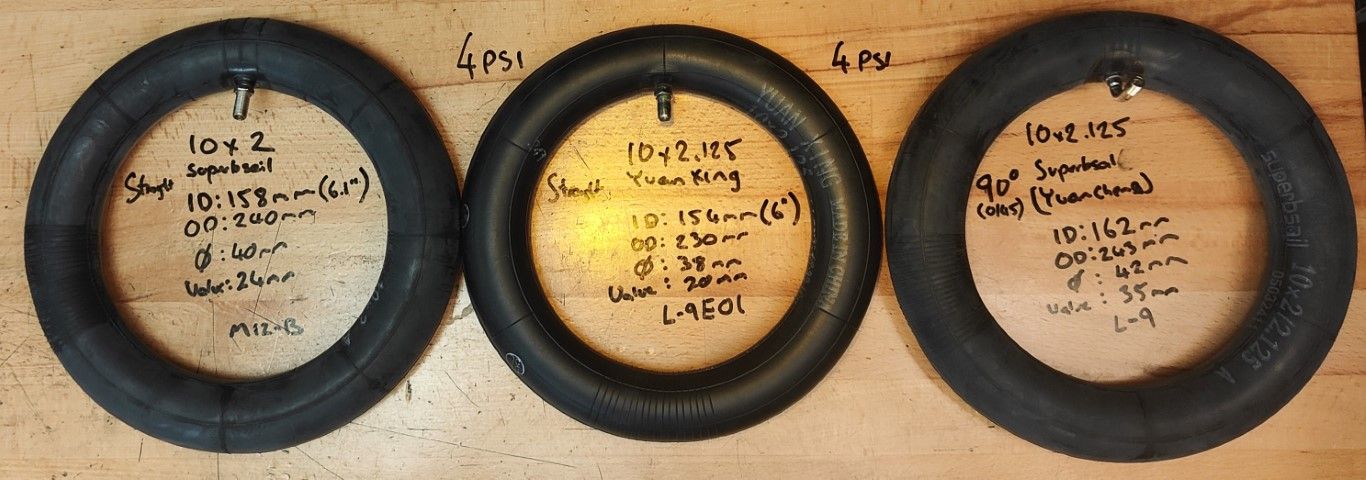

1. Image below shows this 10x2.125" straight valve tube (in centre) adjacent to two other tubes intended for smaller 6" rims: 10x2" straight (left) and 10x2.125" bent (right), measured at 4PSI. Counter-intuitively, this tyre has the smaller internal diameter despite being suited to larger 6.5" rims. The other two are typically used on smaller 6" rims with higher profile tyres such as the wider 10x2.5" {-6} or lower pressure (36 PSI) 10x2.125" {-6}. The 10x2.125" {-6.5) is relatively new, prior to this the 10x2.125 designation related exclusively to 6" rim for tyres such as the 10x2.125" {-6}. Nameplate and dimensions are not a conclusive method of determining appropriate fit relative to rim size and often 10x2/2.125" are not nameplated to inform appropriate rim size or compatible tyres. Choosing the appropriate tube is important for puncture resilience.


2. It is understood Ninebot F Series tyres can be fitted with a tubeless tyre in tubeless operation. A 60/70-6.5 {10x2.5} tyre is adopted with straight valve.
3. How to change the inner tube video from InMotion for the Climber. Climber was marketed as InMotion Commuter Climber in Australia through Scooter Hut.
