Round Tail 21.5mm Brake Pad

• The Round Tail 21.5mm brake pads support:
  • Later models of Dragon Cyclone (non-Pro). Earlier models use the Round Slotted Large Tail 22.5mm pad (see notes).
  • Most pre early 2024 VSETT models of 9/9+. Later models adopt 18.5mm pad (see notes)
  • T9 (Zero 9, Dragon X9) & T10 (Zero 10, Dragon Hunter X10 and other ODM's).
  • Teverun Blade Mini (non-Pro) & Kugoo M4.
• Easily identified as having a complete round plate with tail that is stubby (small lug / notch) and to lesser extent commonly with eclipse at opposite end of tail.
• Dimensions 24.5 (h) x 21.5mm (w).


• Supplied as a set (pair) two pads, one for each side. Order two sets for both front and rear wheels.
• Available in various compounds. To further understand merits of each compound, refer to the Brake Pads Category homepage.

Notes:

1. For further information on the Dragon GT, GTR & GTS (including V2), refer to the Round Tail 18.5mm Brake Pad product page and the Round Slotted Large Tail 22.5mm product page. The Dragon Cyclone (non-Pro) 10" Single motor DRA24CYCLONE0328 mid-late 2024 model), adopts this 21.5mm pad in the 750 V1 calliper shown below:


2. For VSETT 9/9+ models The length of the tail (notch) can assist determine appropriate pad. This Round Tail 18.5mm generally suitable for post-early 2024 models, it has a larger tail. The shorter tail Round Tail 21.5mm pad generally suits models prior to early 2024 (the pad on the earlier callipers being larger). Image below courtesy MACURY Store contrasts the pads for the old (21.5mm shown as 21.25mm) vs new (18.5mm shown as 18.51mm) size calliper. Do not use listings from Ride Electric or VSETT Australia as they are ambiguous., (pre-early 2024) calliper. You can also use the number of indentations on the back of the plate, this Round Tail 18.5mm has 4 indentations. Round Tail 21.5mm pad has two. Best to check/measure your calliper (not existing pad - as the one fitted may be incorrect).

3. This pad is typically fitted in JAK BRK-750 series calliper. Image below shows the 750 V1, 750 V2 & 751, with the VSETT branded version of the 750 V2 below. Teverun Blade Mini also adopts 750 V2.

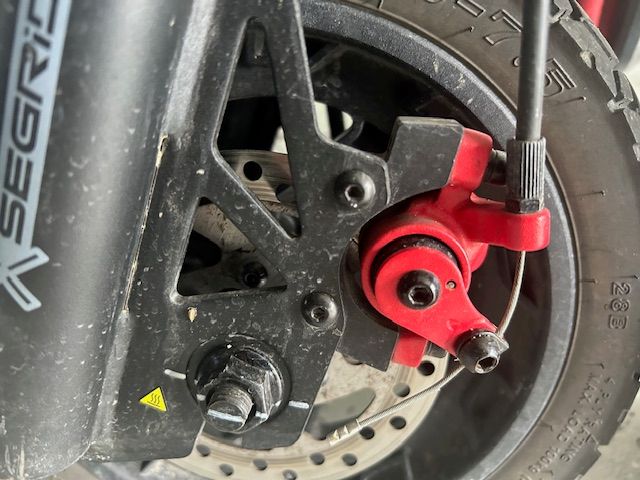

4. Images below show the red livery calliper for Zero 10 Front and Zero 9 Front. The calliper is known by Rev Rides as "Small Zero Disc Brake Calliper" as apposed to the larger that eScootNow stocks (Zero 10X type).
