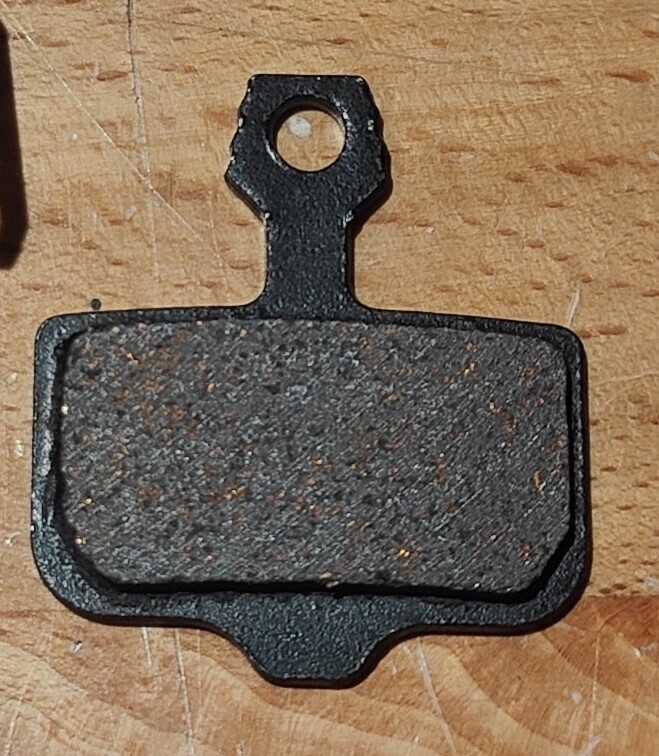

Rectangular "Crown" Brake Pad (29.75mm)

• The Rectangular "Crown" Brake Pad (29.75mm), named due to a distinct "Crown" stylisation on the tail, is a common brake that is relatively narrow allowing it to (often inappropriately) fit into almost any calliper that requires rectangular shape pad.
• Suits (well):
  • Dragon Raptor (non-Pro) yellow calliper and other VDM-10 ODMs such as Mukuta 10 Dual (not Plus), Bolzzen Dynamo/Gladiator Gen 1 (non-hydraulic), Carbon Oxy and non-hydraulic builds of Apollo Ghost.
    • Hydraulic models (such as Raptor Pro and Raptor X) fitted with Zoom HB-875E Hydraulic Calliper require Zoom DB-03 Pad.
  • Zero 10X non-hydraulic models and other T10-DDM ODM's such as Dragon Hunter X10, Bexley, Black Edition and MiniWalker Tiger 10 Pro+.
    • Hydraulic models fitted with NUTT A5-D Calliper (such as Zero 10X Limited) require NUTT YD-01 pad. Zoom HB-875E Hydraulic Calliper models require the Zoom DB-03 Pad.
  • Zero 10 Rear.
    • Front uses Round Tail 21.5mm pad.
  • Zero 8X (T8-DDM).

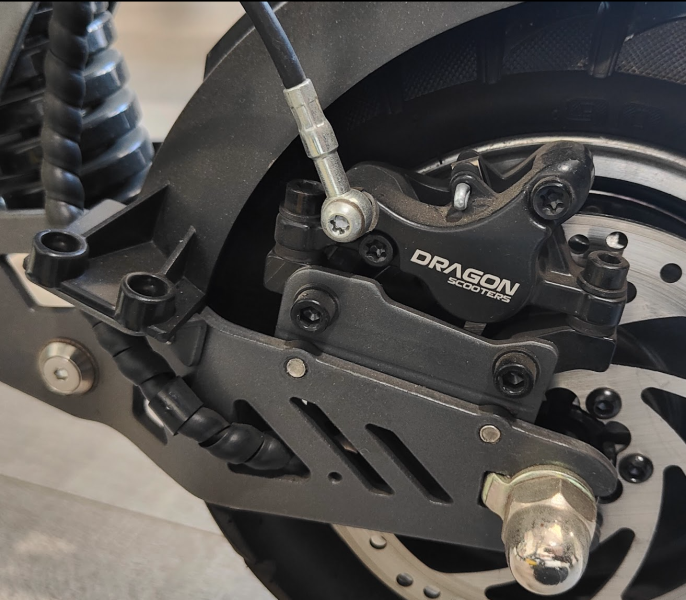

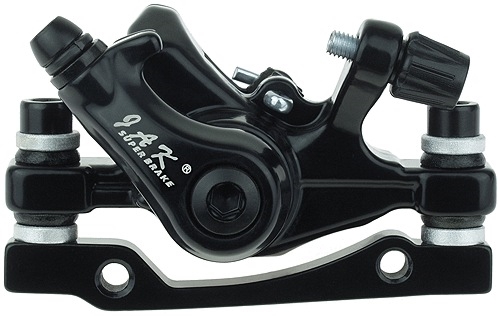

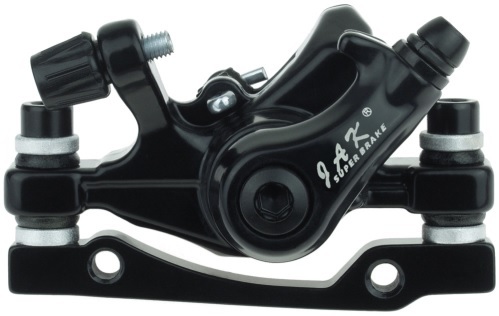

    The models above have calliper that looks like this (Zero is red, Dragon Raptor is yellow, others often black):


• Segway Ninebot GT1 and GT2 (both front and rear).
  Calliper looks like this (also in black):

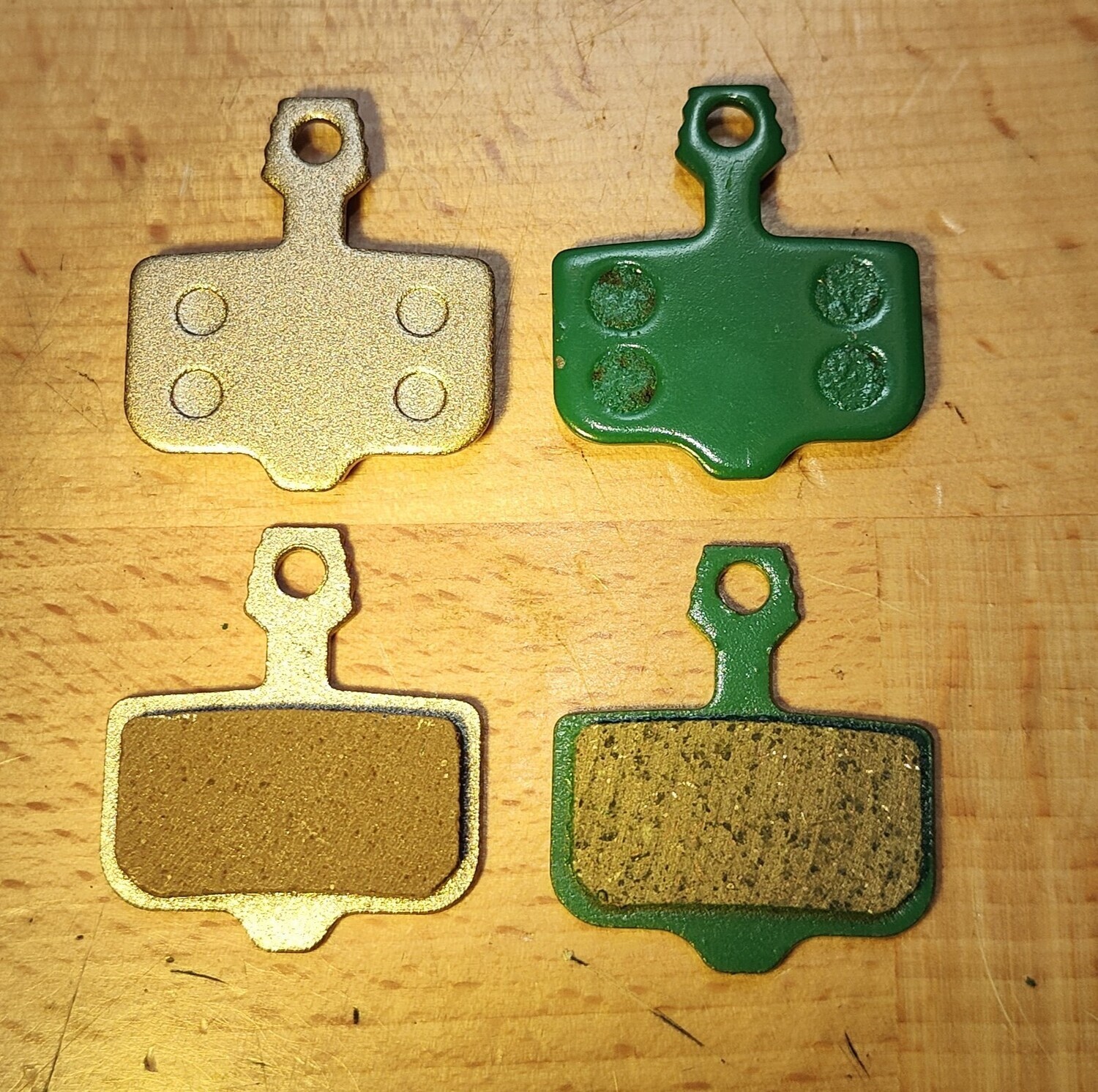

• Available in four compounds. To further understand merits of each compound, refer to the Brake Pad Reference Page.
• Supplied as a set (pair) two pads, one for each side with retaining spring and pin. Order two sets for both front and rear.

Notes:

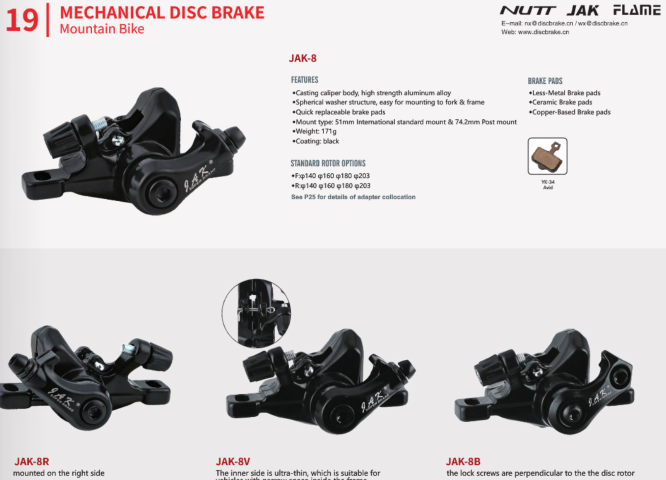

1. LONER BIKES demonstrate pad replacement procedure on JAK Super Brake Calliper:
2. This Crown pad being relatively narrow (29.75mm) will fit into almost any calliper that requires a rectangular shape pad, however it is best to use pad of precise original size so that pad posture is as intended by the manufacturer. Do not assume the existing pad is the appropriate pad.
   1. This pad can be fitted in Zoom HB-875E Hydraulic Calliper, although eSN recommends using the Zoom DB-03 Pad as most appropriate width and depth. Shimano B01S/M315 Pad will not physically fit in Zoom HB-875E Calliper (too wide).

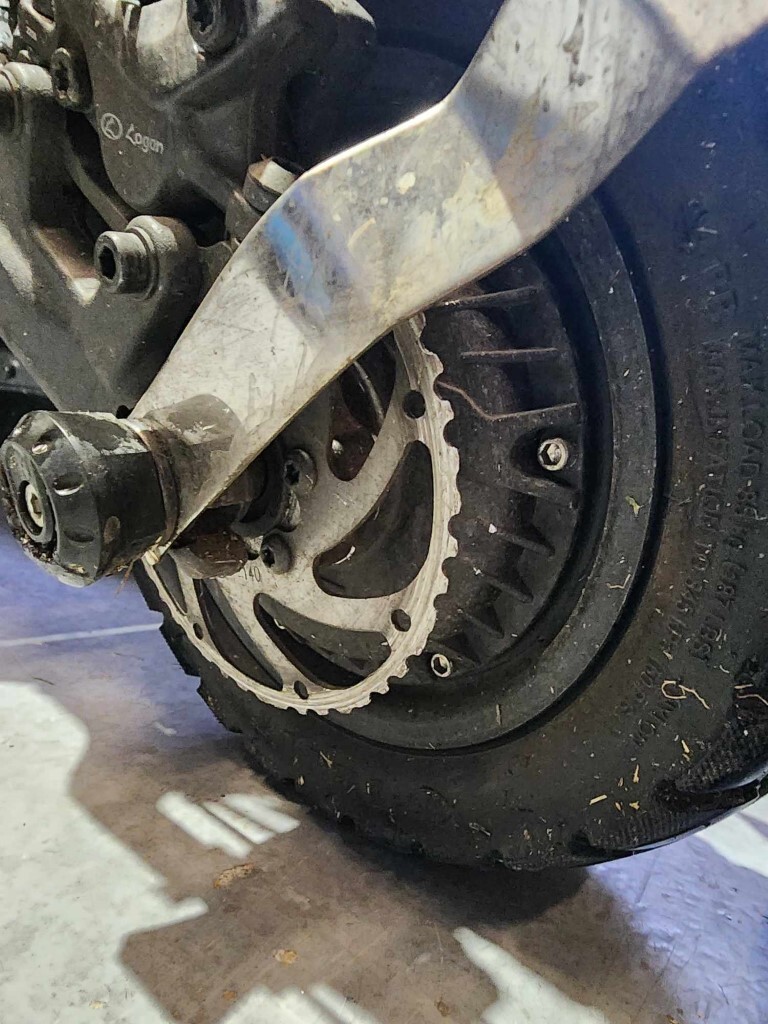

   2. This pad can be retrofitted to Logan 2-piston Hydraulic Calliper, although eSN recommends using the Shimano B01S/M315 Pad as most appropriate width and depth.

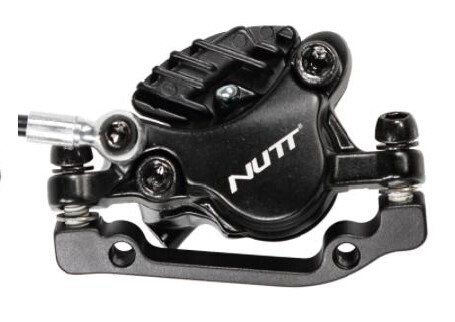

   3. This pad can be retrofitted to NUTT A5-D Hydraulic Calliper, although eSN recommends using the NUTT YD-01 Pad as most appropriate depth. Zoom DB-03 Pad will also fit in NUTT A5-D but will be deeper.
   4. This pad can be retrofitted in XOD H800/880 Hydraulic Calliper, although eSN recommends using the Shimano B01S/M315 Pad as most appropriate width and depth.

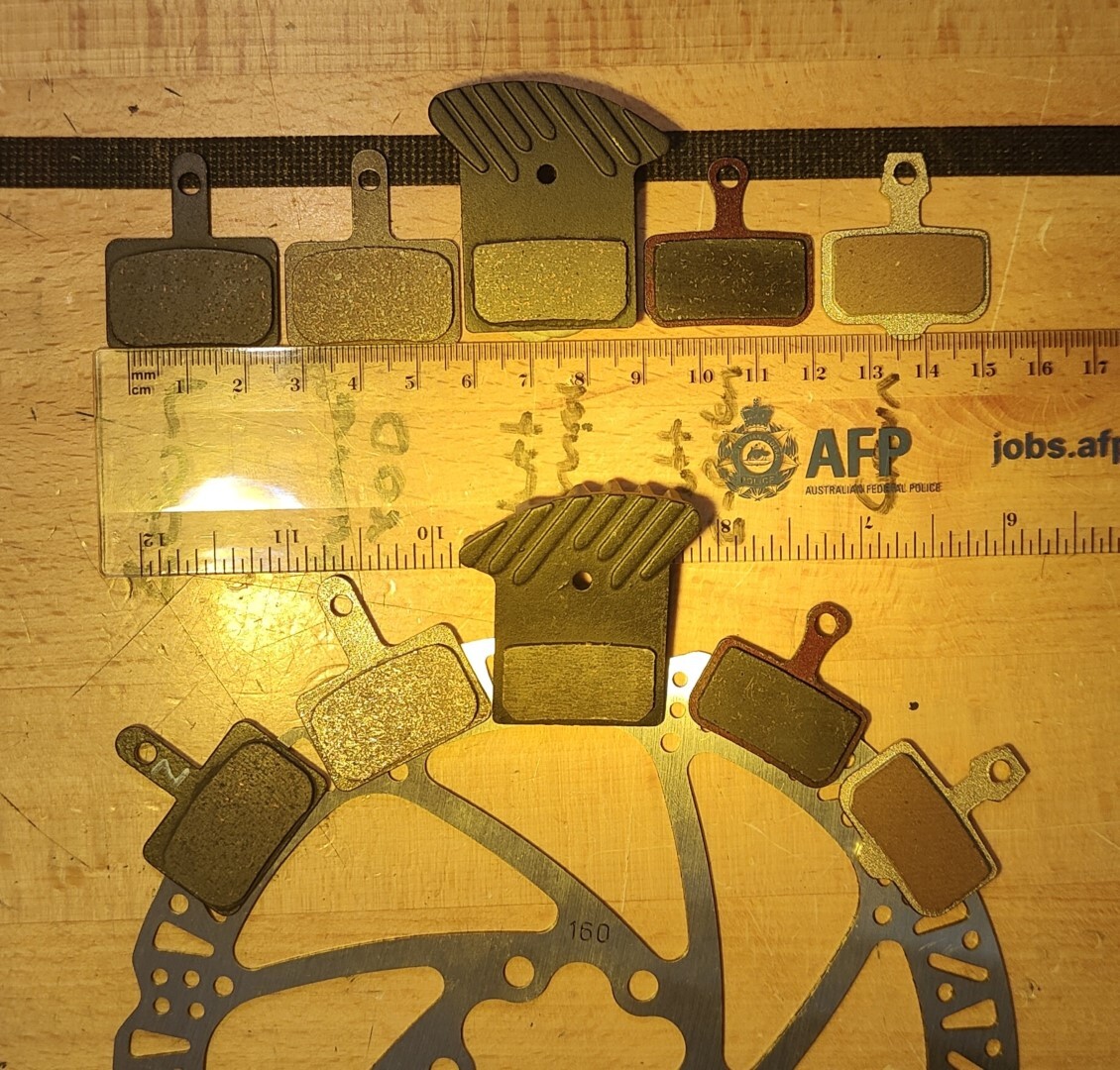

      Image below showing from left-to-right: 1) Zoom DB-03 Pad, 2) Shimano B01S/M315 Pad, 3) NUTT YD-01 Pad, 4) an uncommon pad that is occasionally seen in NUTT callipers and 5) Crown Pad (this pad). Pad surface height on first two is 16.5mm vs 14mm on other three:
