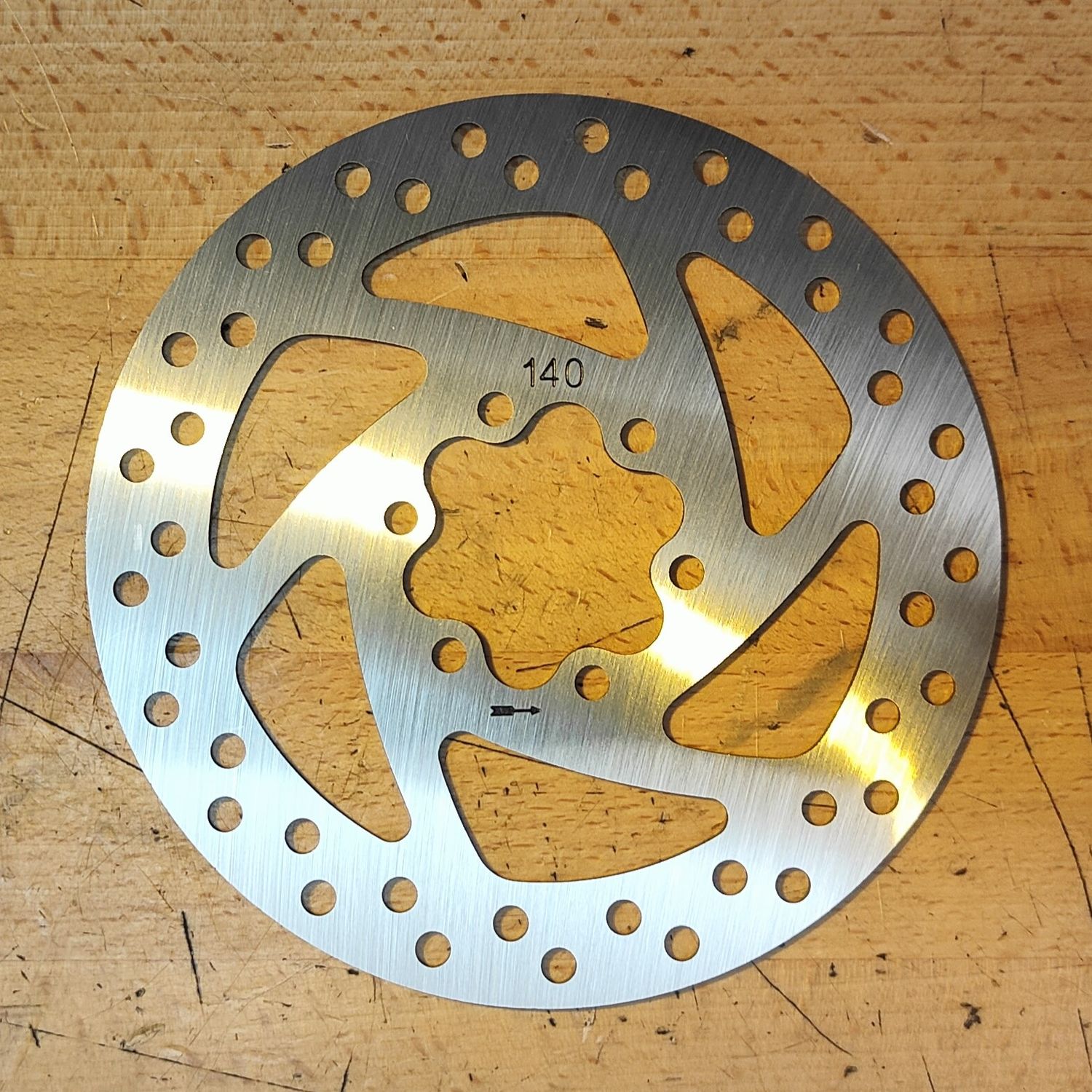

140mm Brake Disc Rotor Round [2mm]

• Disc rotor suits most eScooters with 140mm diameter brake systems (6 holes 44mm PCD).
• Round design.
• 2.0mm thickness.
• Sourced as Kaabo Mantis 10 or Zero 10X (T10-DDM) factory spare.
• Optional M5 button head screws available.

Notes:

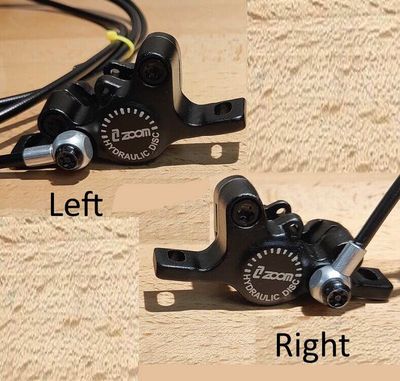

1. VSETT 10+ supports 140mm and 145mm (earlier models were NUTT, later models were Zoom although both callipers have same spacing, with the 145mm likely fitted with more spacer washers on calliper bracket).
2. 140mm is supported on the mechanical/cable brake version of T10-DDM (Zero 10X, Dragon Hunter X10, MiniWalker and other ODM's). The Hydraulic models of Zero 10X typically 145mm ("oil" versions). According to Falcon PEV, some of these models can accommodate 160mm although this would likely require a higher bracket. Amongst the hydraulic models, the 10X Limited version adopts NUTT brakes rather than Zoom on non-limited. Given the variation, measure your disc prior to ordering, they are normally stamped on one side.
3. eScootNow recommends considering wave style discs which have preformation that improves cooling effect to reduce overheating compared to round design. The wave discs have greater surface-area to mass/density ratio and cooling opportunities, allowing them to cool quicker. The heat retention associated with round discs increases brake temperature increasing likelyhood of glazing the pads (lazy brake) and premature failure of calliper (seals) and hydraulics. It is common to see "smoke" and "gas" from callipers on heavy braking in makes fitted with Zoom Hydraulic brakes, whereas it is less common on similar brake systems on different makes that have adopted wave style disc (e.g. Teverun and Dualtron).
