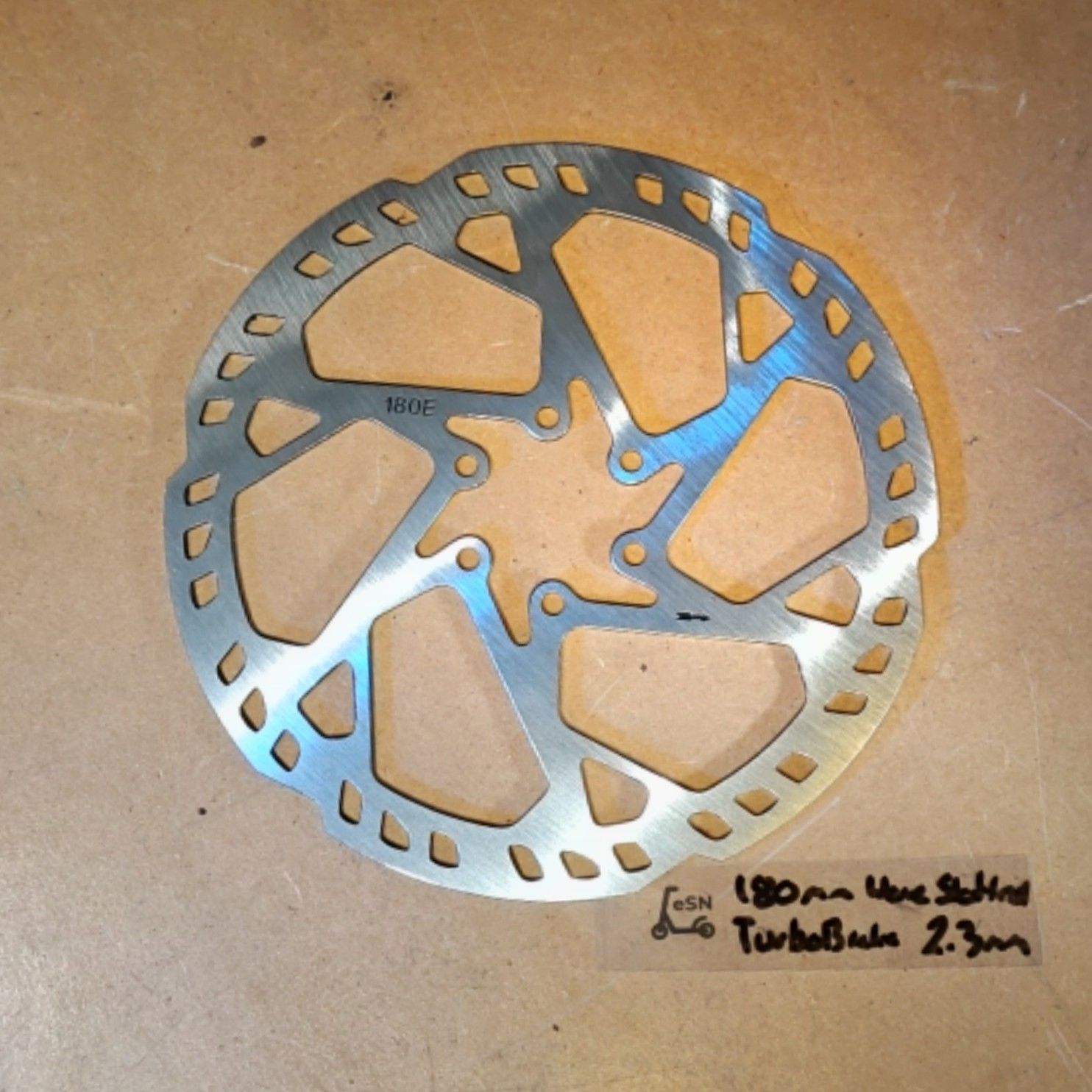

180mm Brake Disc Rotor Wave [TurboBrake 2.3mm Slotted]

• The 180mm Brake Disc Rotor Wave [TurboBrake 2.3mm Slotted] is eSN's signature 180mm rotor.
• 2.3mm (208 grams), our recommended performance rotor: Not too thick to assist clearance and alignment, not too thin to warp or bend easily.
• This is a larger version of the TurboBrake 160mm rotor which is factory fitted on current model Teverun FIghter and Dragon Beast, and the 140mm version which is factory fitted on the other later model Dragon eScooters.
• Adopts slotted design for strength and warp resistance.
• 44mm PCD (Pitch Circle Diameter), as adopted on almost all eScooters.
• Choose optional Black M5 Button Head Screws as desired. Typically required when the Hex/Allen head has stripped. Higher tensile screws have a more robust head, go easy on torque with the high tensile to ensure they do not strip the thread in the motor

Notes:

1. If uplifting from 160mm, you might want to check the notes for the HB427-4M calliper as it has tips on brackets.
2. As previewed in the new additions video:
