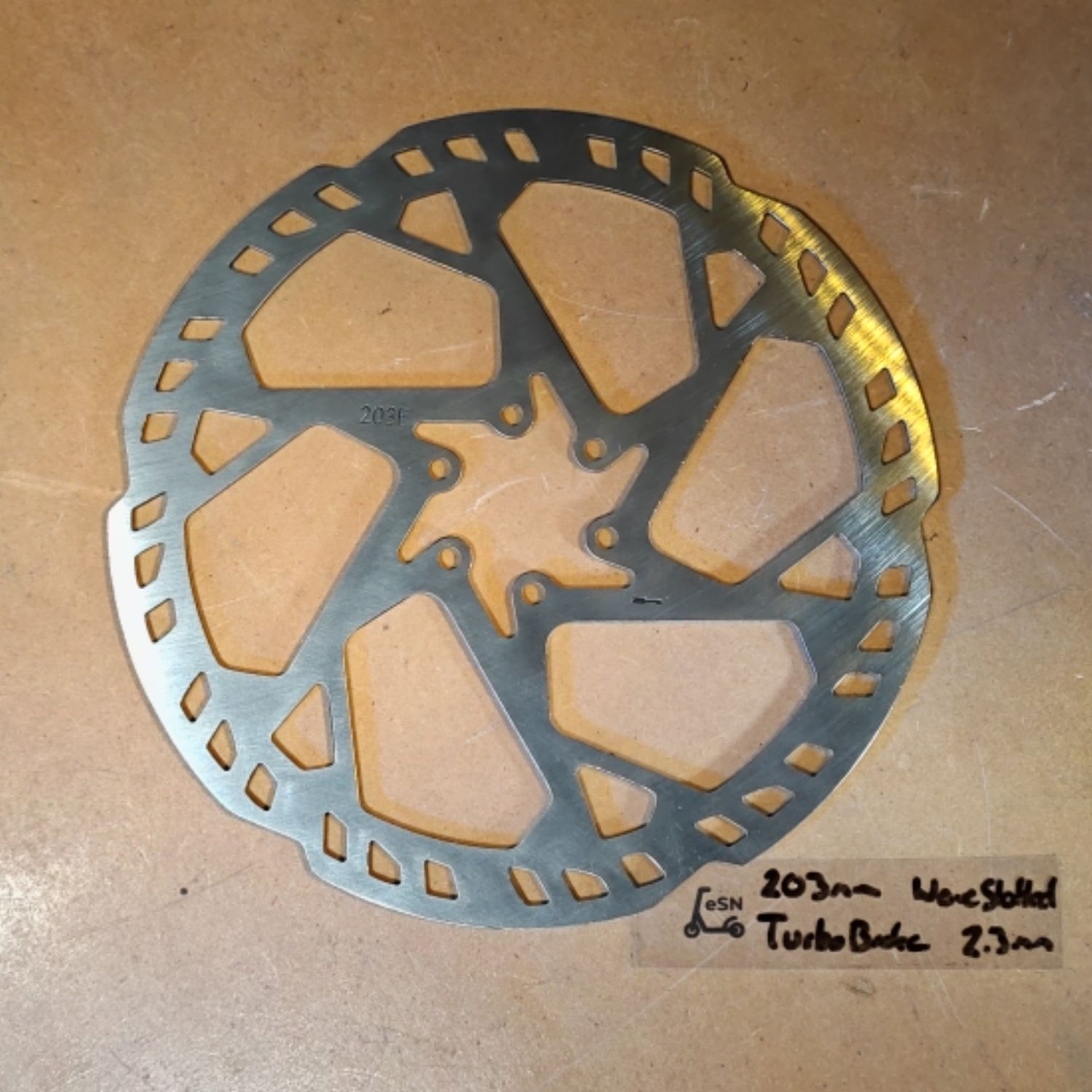

203mm Brake Disc Rotor Wave [TurboBrake 2.3mm Slotted]

• The 203mm Brake Disc Rotor Wave [TurboBrake 2.3mm Slotted] is eSN's signature (and only) 203mm rotor.
• 2.3mm (261 grams), our recommended performance rotor: Not too thick to assist clearance and alignment, not too thin to warp or bend easily.
• This is a largest of the TurboBrake wave rotors, typically not fitted on eScooters. It is a larger version of the 180mm, 160mm (factory fitted on current model Teverun FIghter & Dragon Beast) and 140mm (factory fitted on the other later model Dragon eScooters).
• Adopts slotted design for strength and warp resistance.
• 44mm PCD (Pitch Circle Diameter), as adopted on almost all eScooters.
• Choose optional Black M5 Button Head Screws as desired. Typically required when the Hex/Allen head has stripped. Higher tensile screws have a more robust head, go easy on torque with the high tensile to ensure they do not strip the thread in the motor

Notes:

1. If uplifting from 160mm, you might want to check the notes for the HB427-4M calliper as it has tips on brackets.
2. 203mm rotors are typically found on mountain bikes, downhill bikes and electric mountain bikes (e-MTBs), usually front wheel.
3. As previewed in the new additions video:
