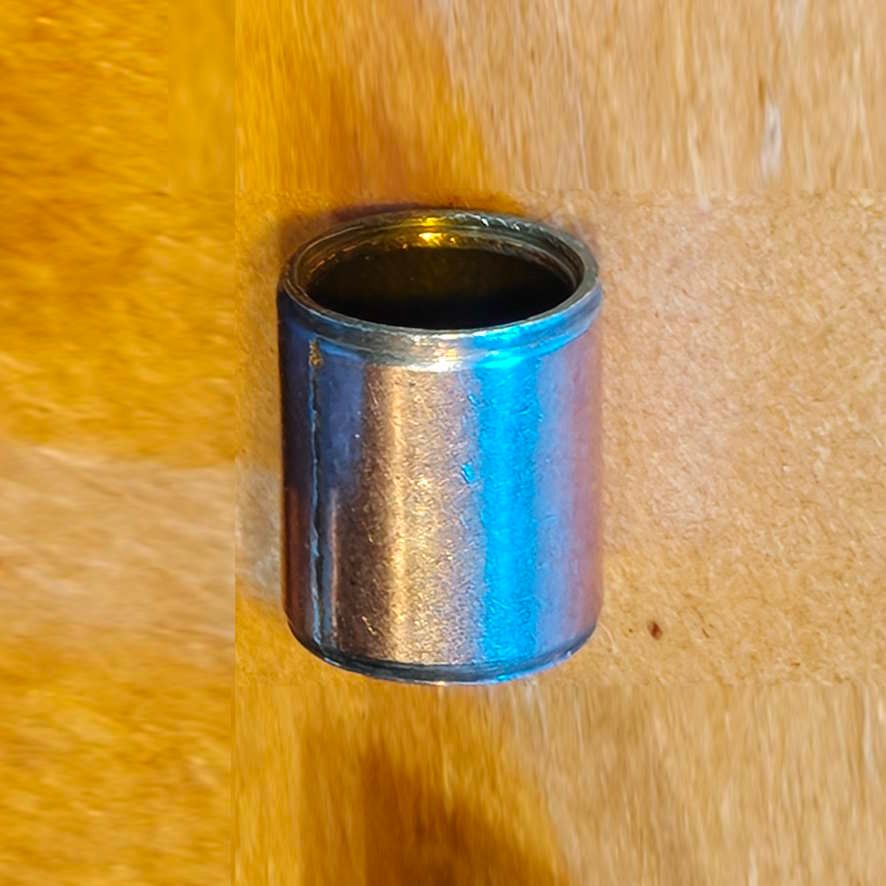

TurboTight SF-1 Self-Lubricating Bearing (sleeve / bushing, non-flanged)

• The TurboTight SF-1 Self-Lubricating Bearing (sleeve / bushing, non-flanged) is a dry-friction design, composite bushing featuring a solid lubricant layer made of PTFE. They are typically used to support shafts through alloy casting such as pivot point or suspension shafts on eScooter swing arms.
• Also available SF-1F (flanged).
• Key characteristics:
  • Self-lubricating: Requires no grease during its lifespan (maintenance-free).
  • Low friction: The PTFE lining yields a low coefficient of friction and smooth sliding performance without stick-slip behavior.
  • Protects: softer alloy casting (such as swing arms) from rapid steel shaft impact.
• Comprised of three-layers (composite):
  • Backing (outer side): A low-carbon steel or bronze/stainless steel outer shell that gives the bearing mechanical strength and structural support.
  • Interlayer: A porous sintered spherical bronze layer bonded to the steel backing to provide strong thermal and mechanical anchoring.
  • Surface Layer (inner side): A mixture of PTFE (polytetrafluoroethylene/Teflon) and filler materials (often including lead or lead-free alternatives) rolled into the bronze pores to create a low-friction, wear-resistant sliding face. During operation, the PTFE layer transfers a microscopic film onto the mating shaft, making them completely maintenance-free under dry-friction conditions.
• Typically required to replace end-of-life factory-fitted bearings (or retrofitted) to restore precision to matting parts, such as swing arm shafts.
• Naming convention, expressed in millimeters (mm):
  Long form: ID (inner bore diameter) x OD (outer diameter) x Length
  Short form: ID (inner bore diameter, 2 digit) x Length (typically 2 digit, 3 digit implies 3rd digit as decimal, e.g. 075 = 7.5mm)

Example: 16x18x15 (SF-1 1615).

Notes:

1. This catalogue item was created Q4 2026 and variations progressively being built out.
2. Application guidance:
   • Kaabo:
     • Mantis:
       • 08x10x06 (SF-1 0806) pair located within each side lower section of stem on Mantis adjacent to the Folding Hinge and also within TurboTight Kaabo Mantis 10 Hinge Service Kit.
       • 08x10x15 (SF-1 0815) located centrally within Folding Hinge suit Mantis and also within TurboTight Kaabo Mantis 10 Hinge Service Kit.
       • 08x10x20 (SF-1 0820) pair located adjacent each side Kaabo Fast Body Removal Plate suit Wolf 11/GT/GTR.
     • Wolf:
       • 12x14x10 (SF-1 1210) pair located within Spring Bracket suit Wolf 11/GT.
   • Shock absorbers:
     • 12x14x14 (SF-1 1214) pair located top and bottom of FZ Shocks.
     • 12x14x15 (SF-1 1215) pair located top and bottom of KKE Shocks (such as those on NAMI, Kaabo & Teverun).
