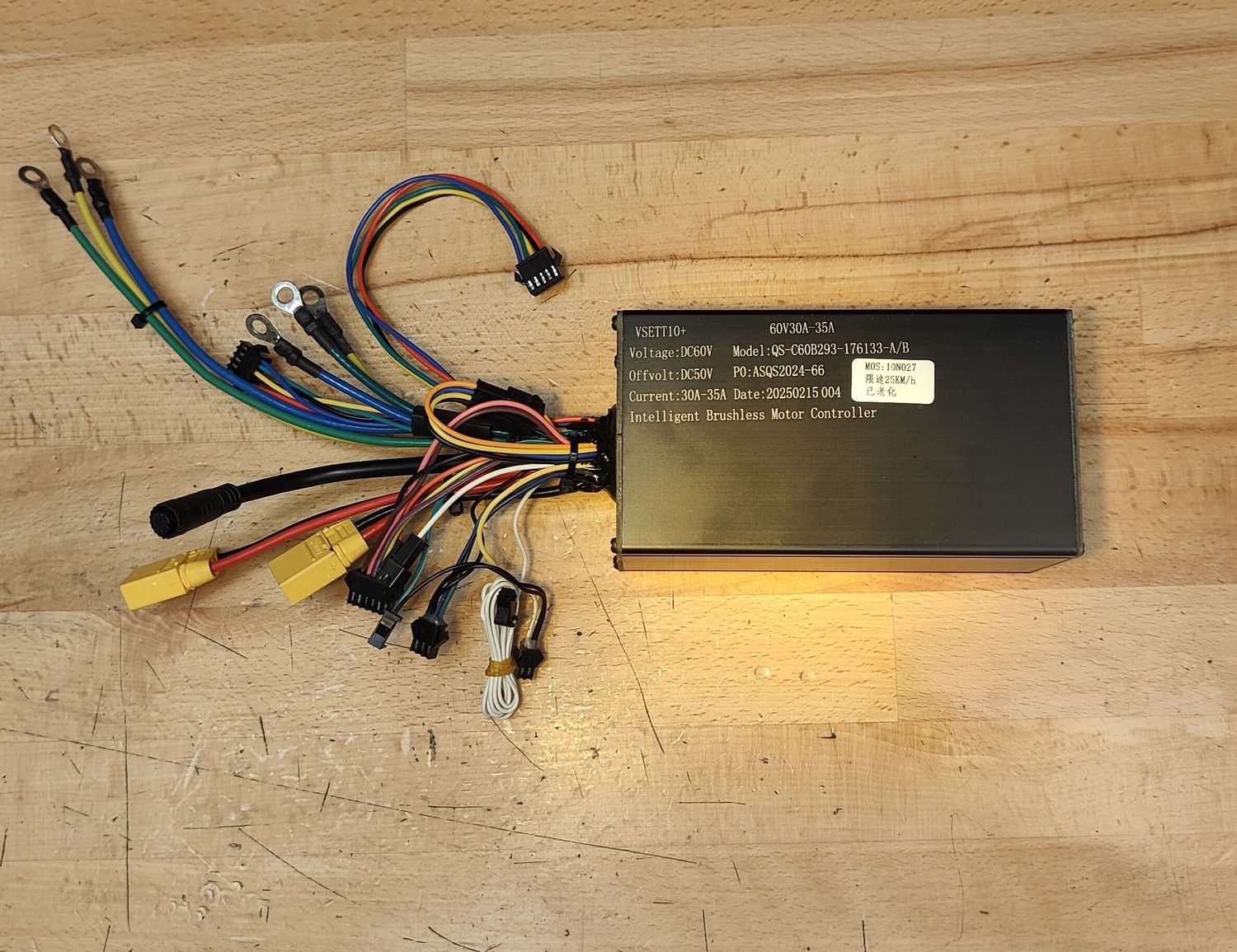

VSETT 10+ Controller

• The VSETT 10+ Controller is the stock controller fitted exclusively in VSETT 10+ model electric scooters.
• Newer, black enclosure version.
• Typically required as replacement for original when relevant error codes are on display or there is resistance when freewheeling (suggests controller MOSFET damage).

Notes:

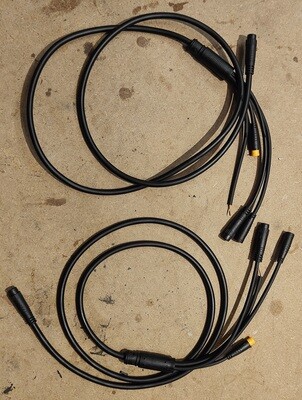

• Typically paired with NFC Display/Throttle or upgraded Central Display which are connected via Communications Cable.
• Speed limiting is performed via the two white wires that have black JST SM 2-pin connectors (limiter wire) When these two are connected, speed is limited to 25km/hr.
• Not suitable for the VSETT 10+ Apex model, which has two separate front and rear controllers.
• Some riders disable the regenerative braking to reduce likelihood of damage from over-voltage, particularly where rider is heavy and braking on significant downhills when battery reserve is high. It is unknown if these newer black enclosure models are more resilient.
• When fitting, ensure you have appropriate heatsinking applied for good thermal heat dissipation into the frame. Heatsink paste or thermal pads would be suitable.
