Dragon Black Junction Box suit Cyclone, Predator and Hurricane [Langfeite]

• The Black Junction Box provides interconnection of all the wiring harnesses. Initially inventoried as suitable for the Dragon Hurricane model (Langfeite H1). It is understood this junction box is universal across the models of Predator (Langfeite C5) and newer Cyclone (Langfeite C3) models.

• Supplied as Genuine Dragon Spare.
• Uses JST XH Connectors.

Notes:

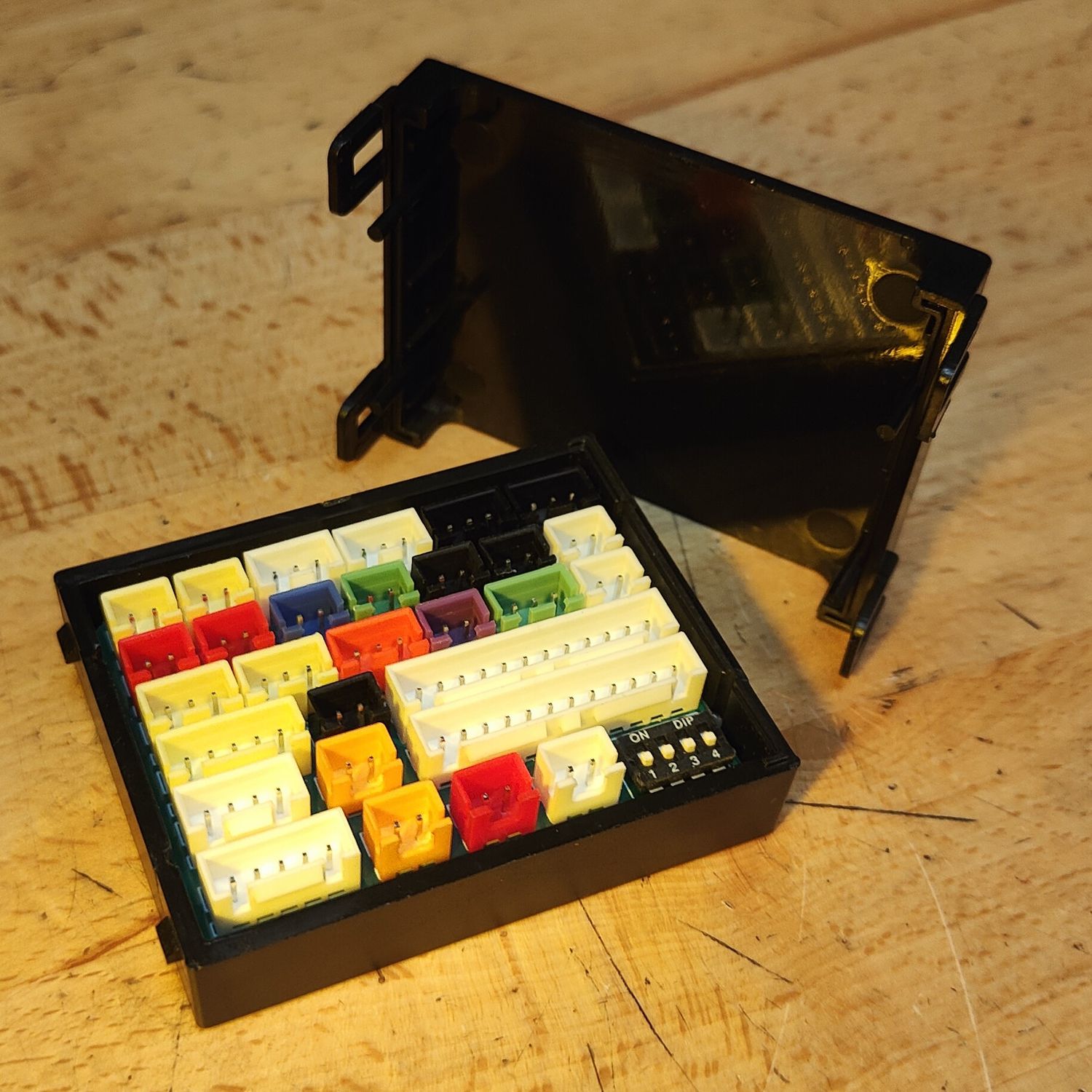

1. Product images shows configuration of dip switches in different positions. Observe the position of switches of the box you are replacing. It is understood the switches impact kick-to-start (push to start) operation and the front electric brake, or speed limiter, or some other undocumented combination of all and sundry. A non-limited config would be 1-up, 2-down, 3-up & 4-up, thanks to Kev at Scooteroo, Perth and Luke at BlingAU.

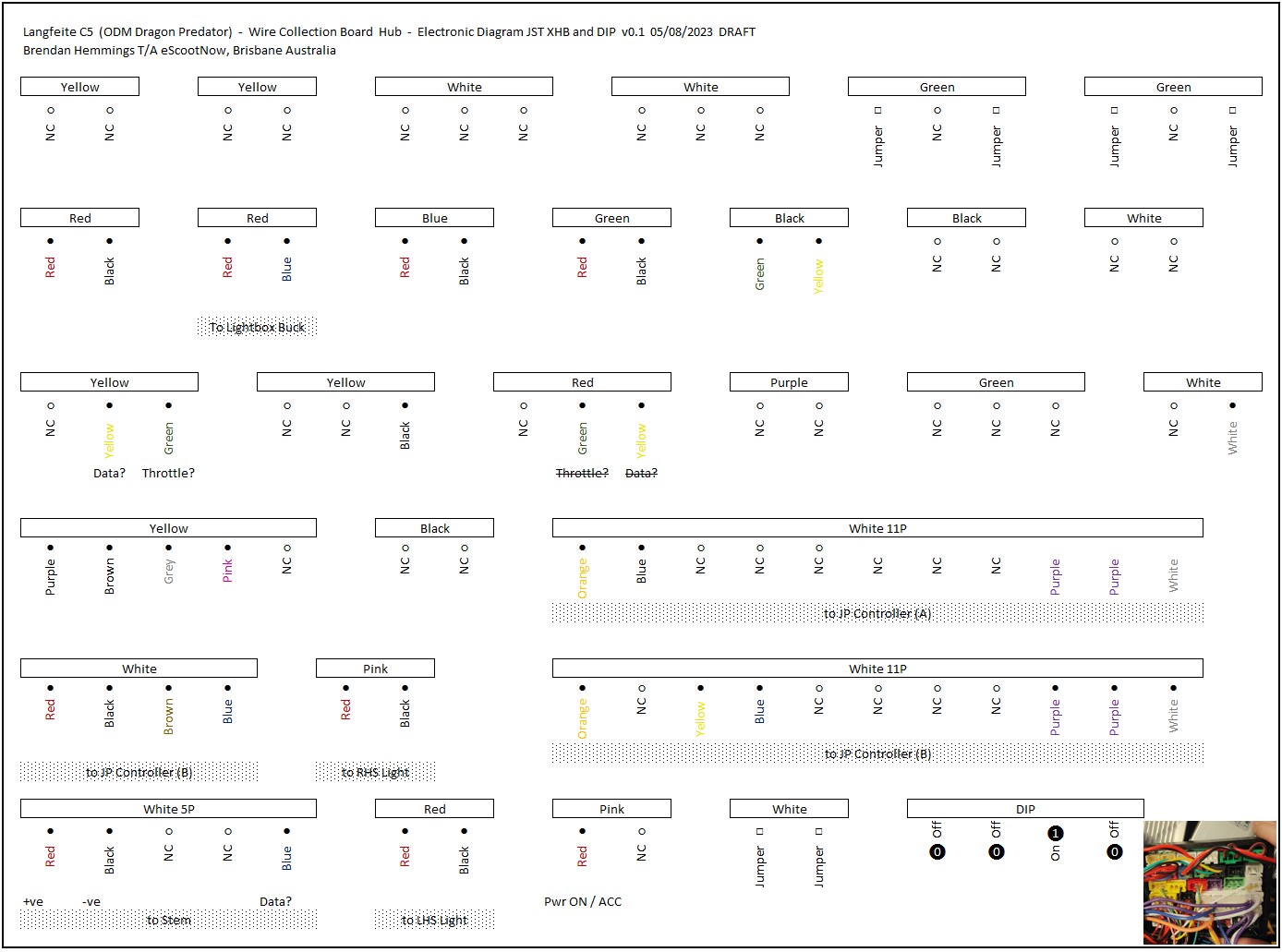

2. Image below shows wiring colours / plugs as observed Dragon Predator (Langfeite C5).
   1. Note some errors, e.g. White 2-pin has NC/White wrong way around.

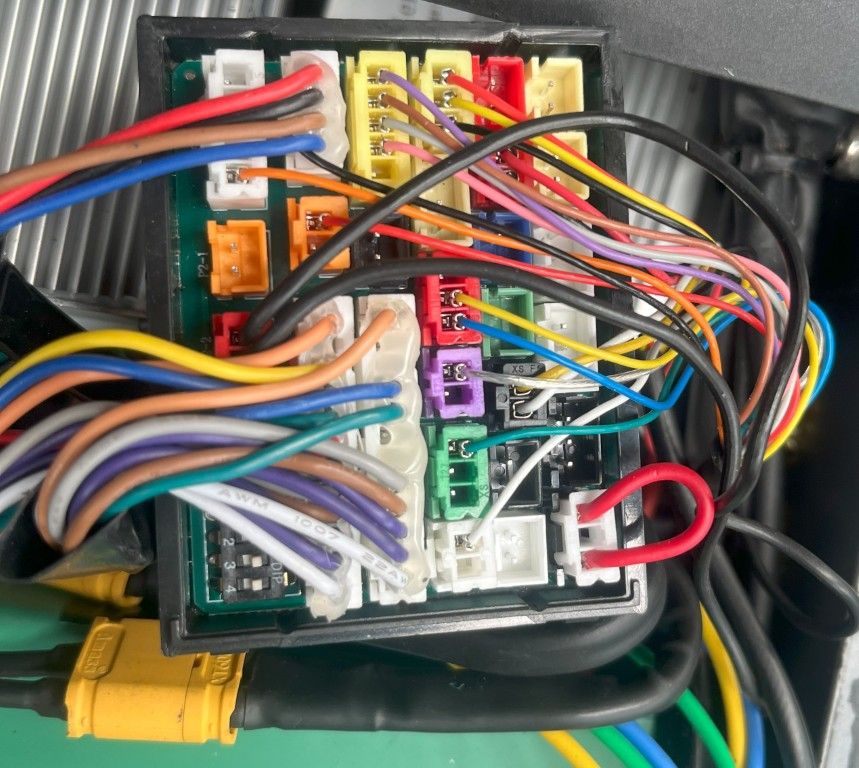

3. Image below shows as observed in Dragon Cyclone Pro (Langfeite C3), courtesy Kev Scooteroo. Note there are significant differences in the colours between the Predator (above) and Cyclone Pro (below) and it is understood that none of this is documented by Bike Scooter City or the manufacturer Langfeite. By comparison Kaabo and NAMI have extensive documentation and crowdsourced materials, so of those may be of some assistance to the Langfeite models.
