JST White XH Connector Series

• JST White XH connectors are used for internal wiring in electric scooter, such as models of Kaabo with Wire Collection Board and Dragon Junction Box.
• XH2.54 (2.54mm pitch) specification.
• Termanology:

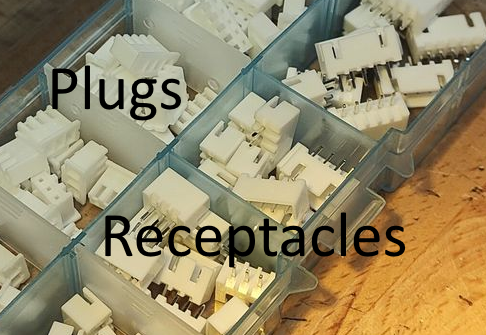

  • Each connector incorporates a white plastic housing and a metal conductor, which is either a
    • Plug: has female conductor (you could say male housing)
      Crimped. Typically fitted to cables / fly leads.
    • Receptacle: has a male conductor (you could say female housing)
      Soldered. Typically fitted to printed circuit boards or inline application.


• Available as:

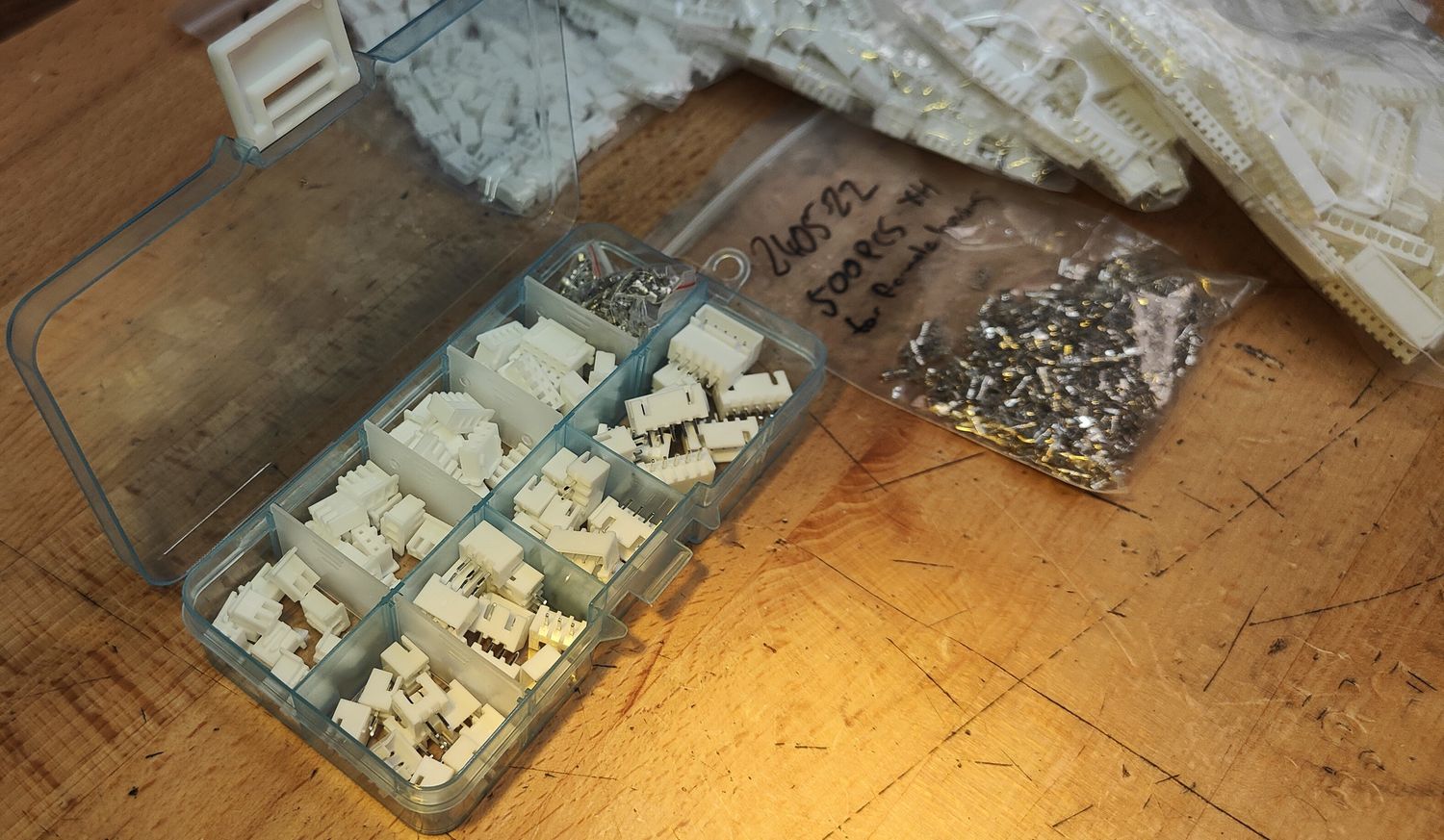

  • 230 piece kit in hard case containing:
    • 80 housings being 10 pieces of each plug & receptacle pair across 2, 3, 4 & 5 pins.
    • 150 pins for the plugs.
  • or as Single Plug / Receptacle: for picked in your choice of pins of 2, 3, 4 & 5, and for plugs the 6, 8 & 9 comprising:
    • Housing.
    • Suitable amount of metal conductors.

Notes:

1. XH is compatible with XHB which has a latch on the (friction lock type, hot glue / silicon as alternative).
2. For wiring diagrams across common Kaabo range eScooters, refer to Kaabo Spares Category Home Page. The Kaabo Wire Collection Board
3. Resources for JST and other e-Bike cables:
   1. Definitive Guide to Ebike Connectors
   2. JST Connector (Wikipedia)
   3. Electric bike connector types
   4. Connectors - Learn
