TurboCharge Fast YZ Charger [YZ500 Yangzidianyan]

• TurboCharge Fast YZ is eSN's charger offering:
  • Built-in display showing voltage and charging current.
  • Dual fan design, quieter than typical (such as TurboCharge MC).
• Available in two voltage variant::

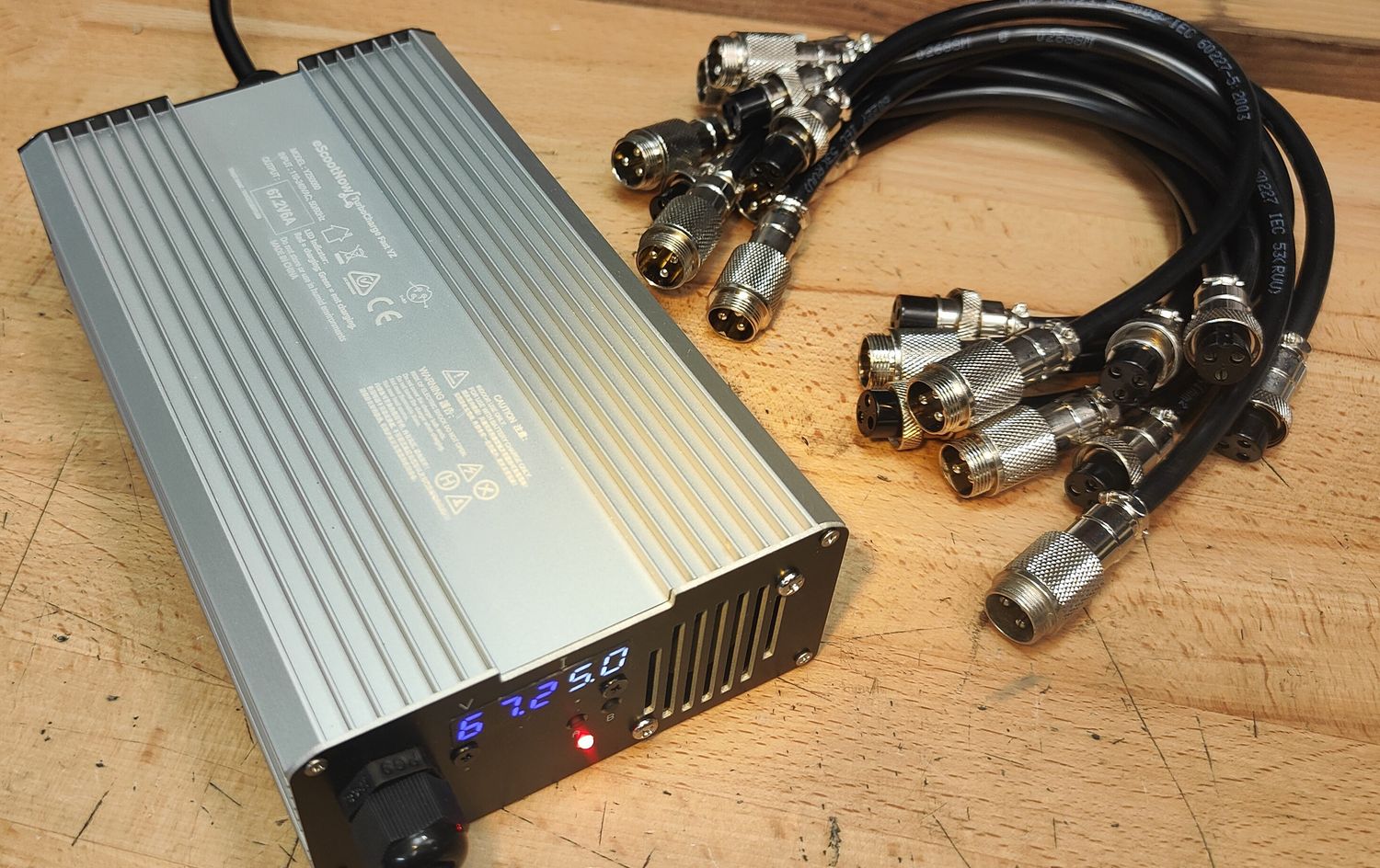

  • YZ50060 67.2V 6A (403.2 watts) for 60V system (as shown in product image).

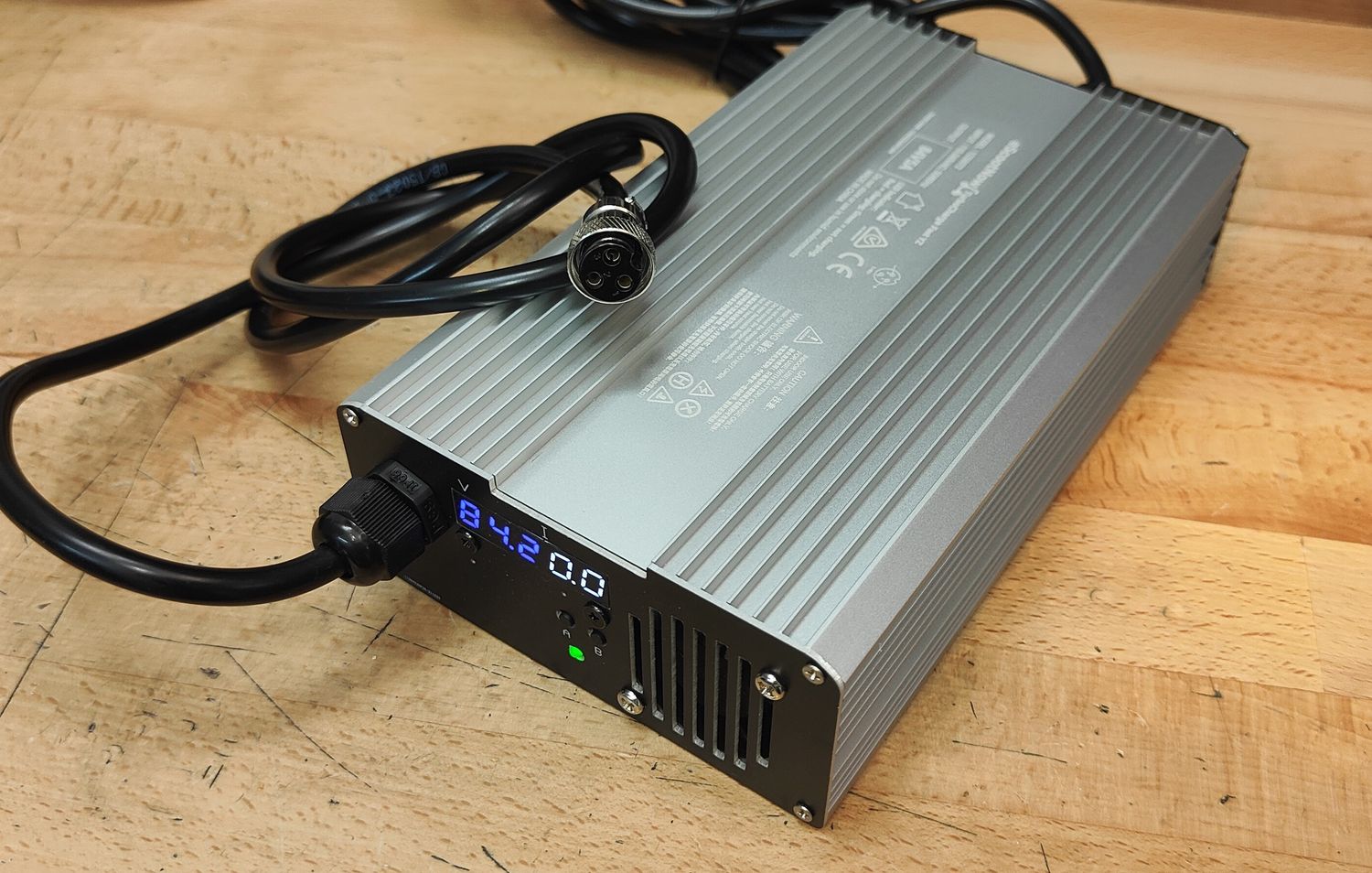

  • YZ50084 84.0V 5A (420.0 watts) for 72V system.

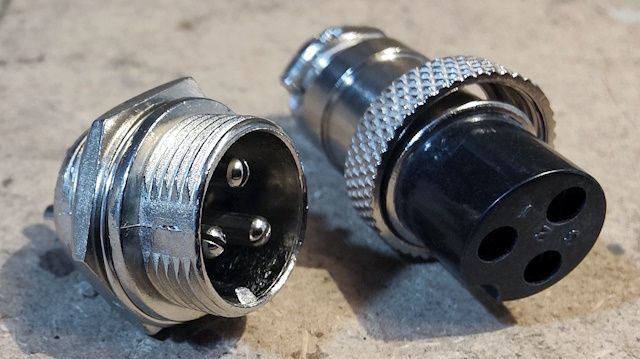

• Fitted with GX16 3-pin plug (as pin 1 +ve, pin 3 -ve) which is adopted by most common makes and models of earlier model scooters that have charging ports like this. If pin 1 +ve, pin 2 -ve is required include comment at checkout and a complimentary patch lead will be included.
• Input cable accepts 110-240 volts. Hard wired cable with Australian 3-pin power cable (1.4 meter length).

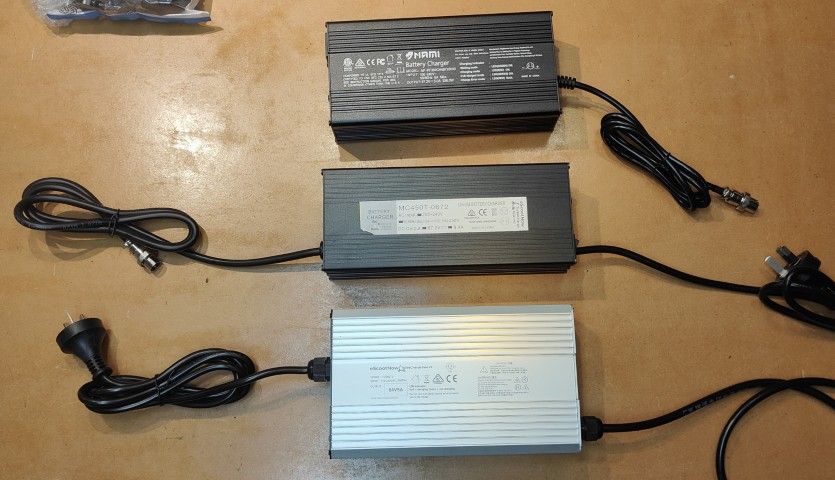

• Output cable 2 x 1.0m² cores with generous 1.1 meter length. In contrast, the TurboCharge MC model has 2 x 1.5mm cores.

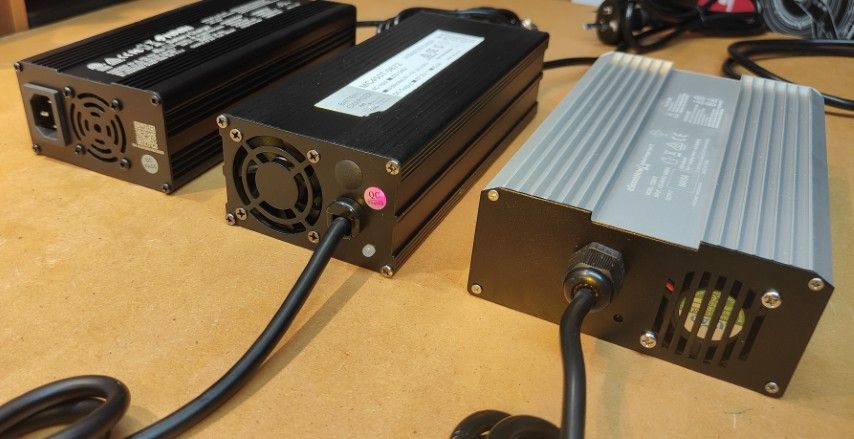

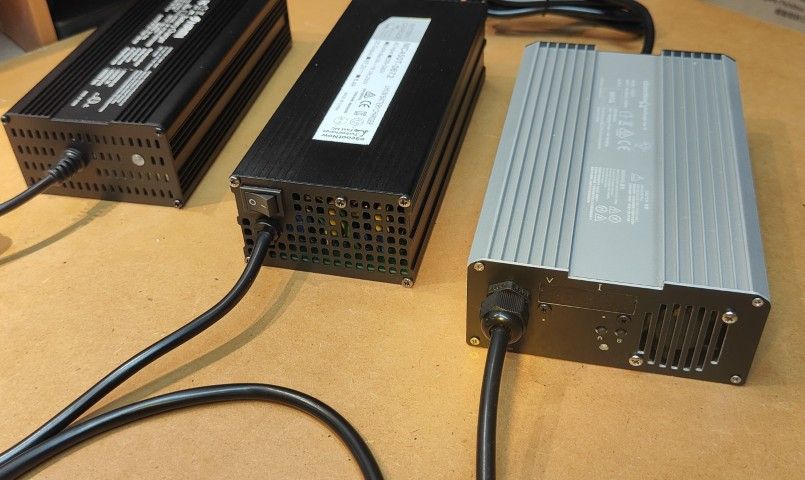

• 2 x 40mm fan (secured with 2 screws each, located at each end). Slightly quieter than TurboCharge MC. LED charging status indicator switches from green to red when charging.
• Chargers have certification to ISO testing, those required for EESS Australian compliance for Regulatory Compliance Mark (RCM) with appropriate proof of RCM compliance certification.
• YZ series is to 450 watts (standard escooter chargers are typically 130 watts). Manufactured by YZPOWER - Guangzhou Yangzi Power Supply Co., Ltd. for custom order spec by eScootNow.
• Weight with cables approximately 1.5kgs in a flat 208mm x 123mm x 55mm silver colour alloy enclosure.
• For your safety, include your scooter's make / model / serial / voltage and battery Ah capacity as order comment on checkout so that the appropriate voltage can checked to best of our ability as part of order fulfilment. Remember some makes have models that are available in variants that have different voltages and inappropriate selection of higher voltages is a common cause of thermal runway and house fires folks.

Notes:

1. The two buttons adjacent to the display are not enabled. They are reserved for the adjustable model (expected late 2025 +~$25).
2. Although "fast chargers" are quick, they typically do not exceed the recommended charge rate of the cells, except for small capacity batteries (e.g. Chinese 18Ah packs). You may also need to check the internal fuse in the scooter is sufficiently rated as many are by default only 5 amp which only caters for stock 2 amp chargers.
3. Part of the eSN's TurboCharge range.


4. YZ series OEM is also adopted by Caprouge, who accommodate the eBikes.
5. Regulatory Compliance Mark (RCM)

   The Electrical Compliance Mark indicates compliance with EESS (Electrical Equipment Safety Scheme). For electrical safety, in-scope electrical equipment must not be sold unless the item is marked with the RCM in compliance with AS/NZS 4417.1 & 2.
   Responsible Suppliers, equipment and certifications (including certificate number) of are registered with Electrical Regulatory Authorities Council (ERAC).
   There is a public search tool to check registration and compliance, the Certificate Number is printed underneath the RCM logo on equipment nameplate which looks like this:

   EARC Equipment safety requires an Australian based assessor to issue certificate of RCM compliance. The assessment considers a number of standards and guides such as::
   • Australian/New Zealand Standards:
     (i) AS/NZS 3000, Wiring Rules.
     (ii) AS/NZS 3820, Essential safety requirements for low voltage electrical equipment.
     (iii) AS/NZS 4417, Marking of electrical products to indicate compliance with regulations AS/NZS 4417.1, Part 1: General rules for use of the mark.
     (iv) AS/NZS 4417.2, Part 2: Specific requirements for electrical safety regulatory applications.
   • International Standards and Guides (mostly ACMA for EME):
     (i) ISO/IEC 17000, Conformity assessment -- Vocabulary and general principles.
     (ii) ISO/IEC 17025, General requirements for the competence of testing and calibration laboratories.
     (iii) ISO/IEC 17050, Conformity assessment - Supplier's declaration of conformity.
     (iv) ISO/IEC Guide 2, Standardization and related activities -- General vocabulary
     (v) ISO/IEC Guide 65, General requirements for bodies operating product certification systems.
     (vi) ISO/IEC Guide 67, Conformity assessment – Fundamentals of product certification.
     (vii) Joint Accreditation System of Australia and New Zealand.
     (viii) JAS-ANZ Procedure 15, General Requirements for Bodies operating Product Certification Systems (identical to IAF GD 5).

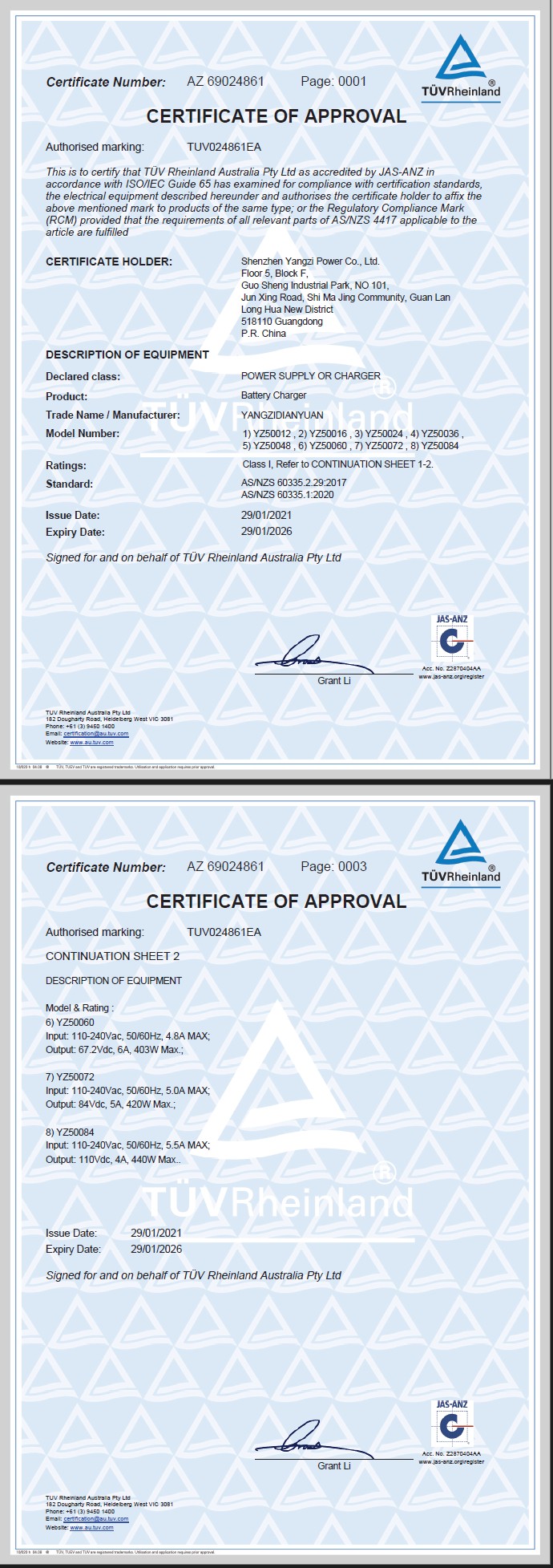

   Certificate (approval #): AZ 69024861
   Applicant (certification): TUV Rheinland Australia Pty Ltd
   Brand/Trade Name: Yangzidianyan
   Model Number: YZ50012, YZ50016, YZ50024, YZ50036, YZ50048, YZ50060, YZ50072, YZ50084
   Equipment Class: Level 3
   Certificate Holder: Shenzhen Yangzi Power Co.,Ltd.
   Status: Approved
   Expiry Date: 29/01/2026


6. Voltage reference chart:
