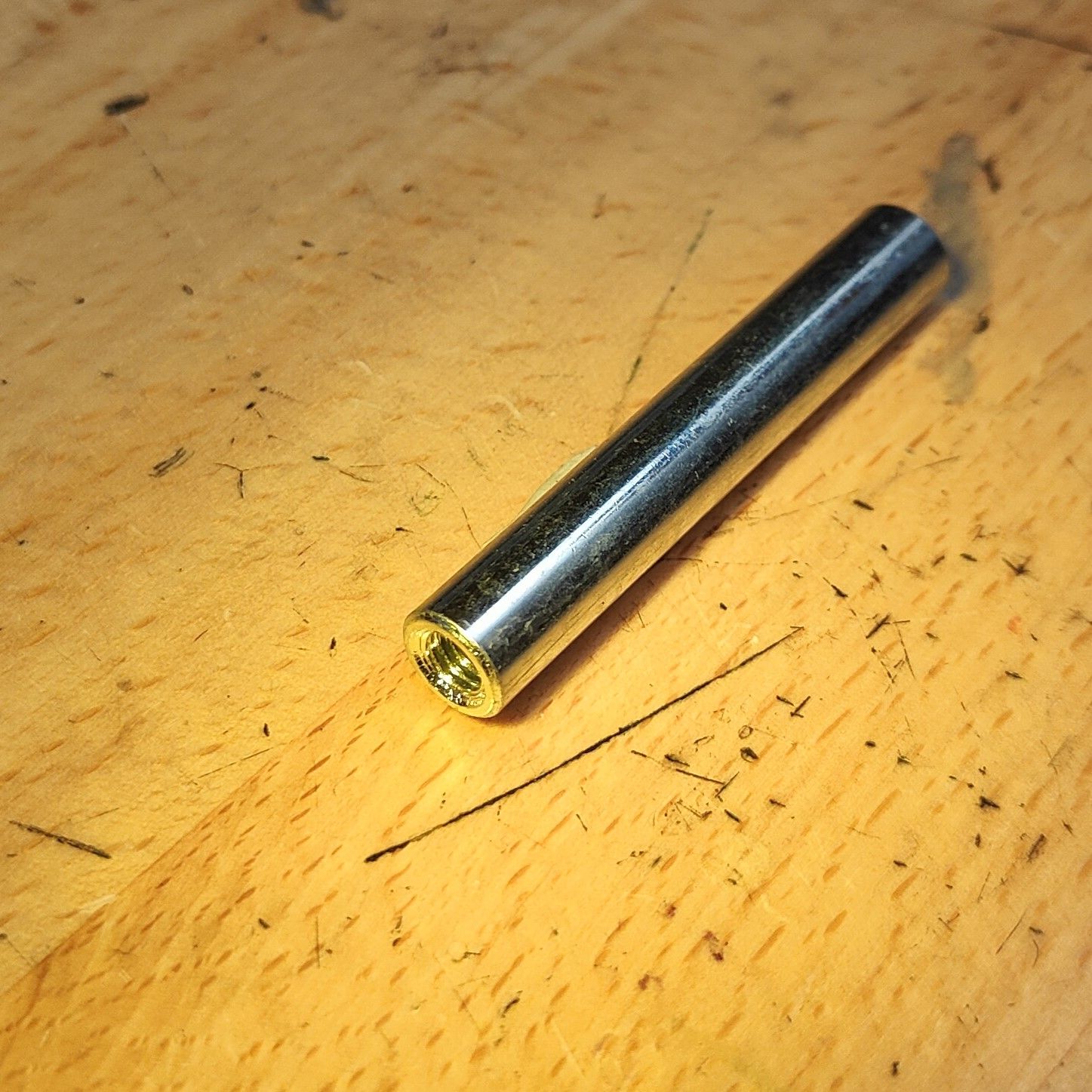

NAMI Electric stock factory shaft for the top of suspension.
Suits all Klima models.

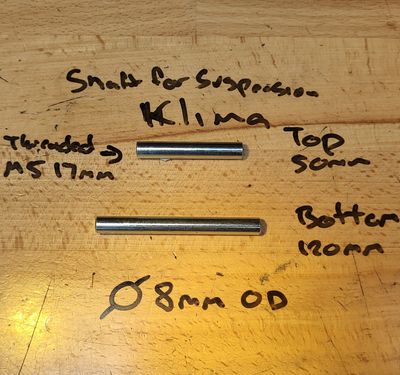

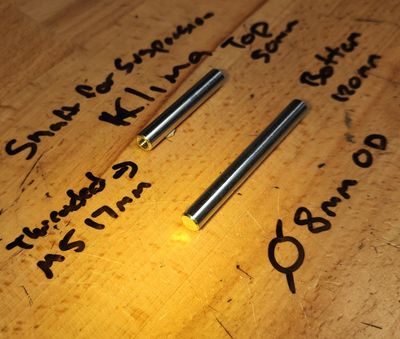

Length: 50mm.
Outer diameter: 8mm.
Weight: 15 grams.
This top shaft is a pair screw (threaded) without the screws/bolts (for each end of shaft). In most instances you can re-use the stock silver socket head screw. The thread inside the shaft is M5 with ~16mm depth of thread. Some of the more recent stock has been supplied with pair of black ungraded M5x18mm button head screws/bolts.
Typically required when original has deformed which would result in vertical "play" in the shaft and a "knocking sound". This sound and feel can be observed when front wheel is lifted off the ground. In these instances, accurate measurement tools such as micrometre or callipers will reveal the shaft diameter has worn out of tolerance, which can be as little as a <0.4mm reduction.
Genuine NAMI Electric factory spare.
Notes:
Ensure the hole in casting for the suspension shaft is clean before fitting the shaft.
