TurboTorch Cobra 3600/M8 Headlight (NAMI/Teverun)

• TurboTorch Cobra 3600/M8 Headlight is a 3-LED, high-performance, petite aftermarket headlight for plug-and-play fitment into eScooter models of NAMI and Teverun (the later via Conversion Cable).

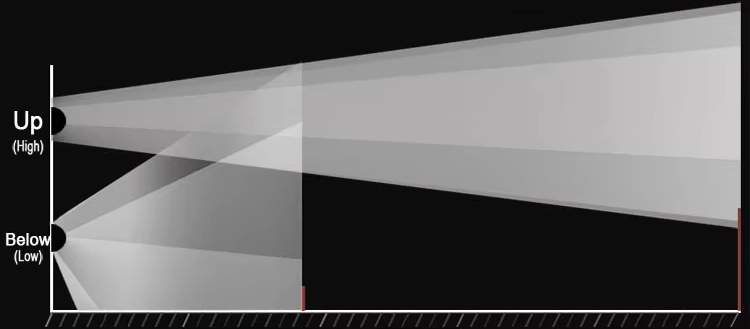

• The luminaire draws 16 watts across three CREE XM-L2 emitters and puts out a sharp but not too cold 6000 Kelvin (K) colour temperature producing 3600 Lumen (lm) with all three emitters having a long-throw beam width of 10 degree (earlier models featured in product photo had one lens being wide).
• As an upgrade from stock headlights, Cobra 3600/M8 throws a lot more light a good 10-30 meters ahead of the rider.

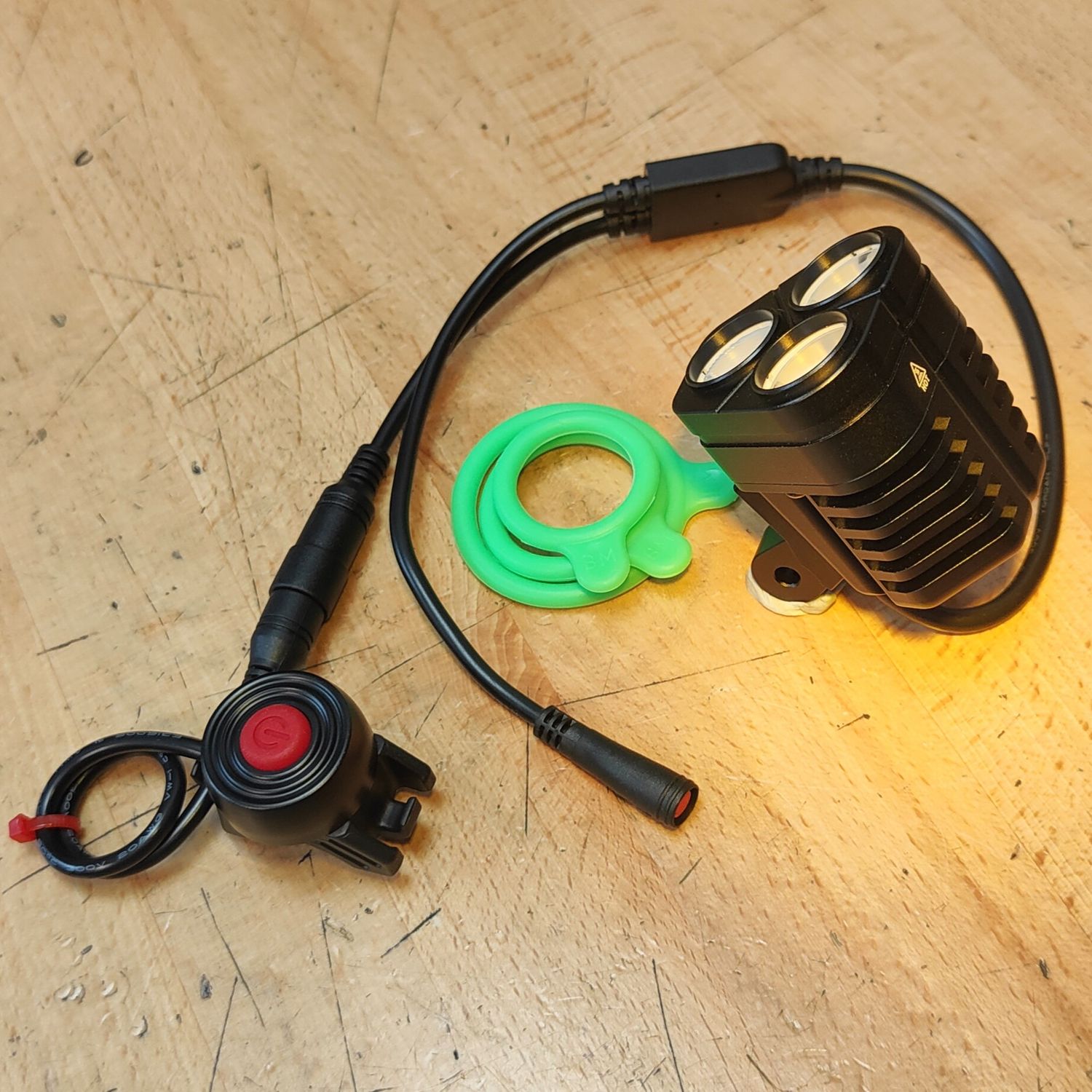

• Includes handlebar remote switch which is secured with a green O ring (three sizes).
• The UI (user interface) is factory configured to eSN design requirement which is purposed specifically for use on eScooters that have a factory stock headlight switch. When power is applied to the fixture, the headlight starts automatically in low brightness mode (1st mode). Modes are cycled with either remote button or the button in order:
  • 1st: Low (default when power applied to light).
  • 2nd: Medium.
  • 3rd: High.
  • Subsequent button press reverts to 1st (loop)
  • Long hold = Off.
• Supports wide voltage 12-90V.
• NAMI Plug-and-play, fitted with red 2-pin M8 connector to either replace or compliment stock headlight, powered from headlight circuit or Auxiliary Power Output on TurboTap NFC Bypass Switch.

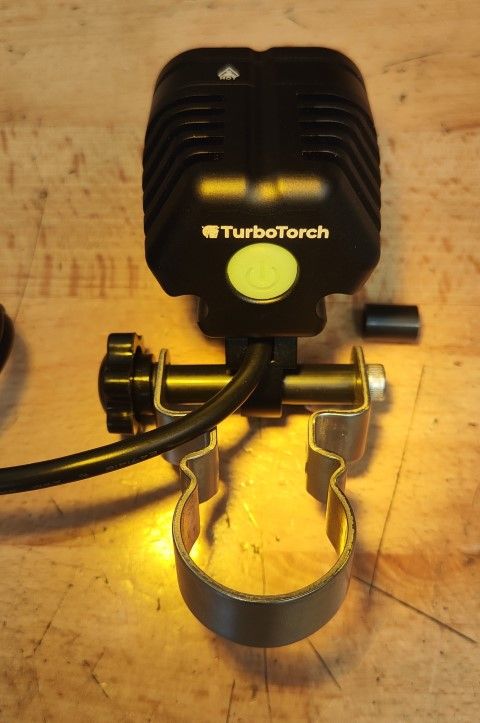

• The mounting plate is 40mm wide, suitable as drop-in-replacement with stock holder/brackets from NAMI, Teverun and Kaabo. An optional M5 Hardware Kit is available if needing to renew the nut/bolt, required for Teverun due to Teverun stock pair screw being 6mm OD bolt.. The kit includes an M5x50mm bolt (304 A2-70 stainless), M5 Bakelite Nut, M5 Lock Nut, M5 Wedge Washer and a couple of fine tuning washers.
• With mounting, you can either replace or co-exist with existing headlight:
  • Replace the existing headlight, such as those on NAMI, Teverun or Kaabo and re-use existing holder/bracket such as NAMI Head Light Holder or Kaabo Bracket.
  • Co-exist (add) the TurboTorch as an additional light in conjunction with the stock NAMI headlight, running both concurrently with these items:
    • NAMI Head Light Holder
    • M8 2 Pin Red Female-2xMale (Y Splitter) Prepared Lead

• Lightweight: 173 grams

Notes:

1. As demonstrated by ScootNChill:

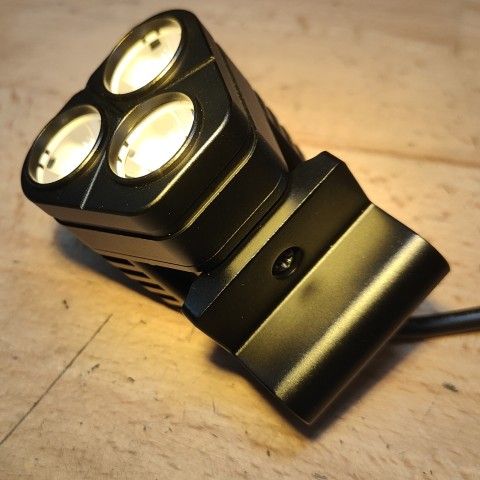

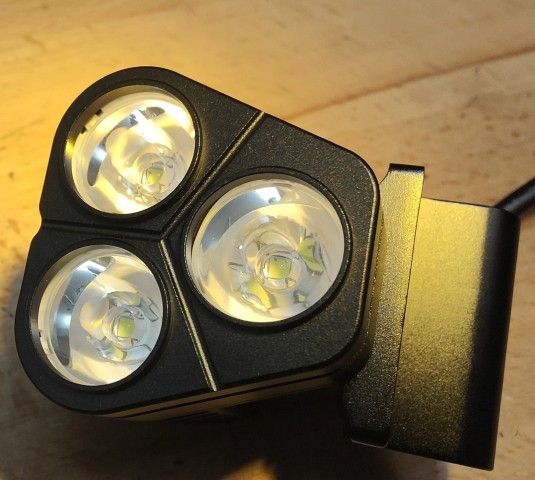

2. Some of the product images show the inaugural version that had one emitter with 60x15 beam pattern and narrower 9mm mount. Images below show the newer / current version, all three are 10 degree and the mount is 40mm native. The changes provide better throw and simplifies the mounting hardware count.

3. Manufactured by Shenzhen Beam-Tech Electronic, ODM brands include ITARLIGHTS and FluxMotion, Belgium. Beam-Tech's products are also supplied as ODM brands in large Australian retail stores.
4. Showcase of the headlight low/high quick flick function with TurboTap switch as shown in UI showcase 21m:20s.
5. Photo's are difficult to assess, here are some of the factory images. "Brightness" is not significantly less than the Bushmaster 5000, which has more photographs.

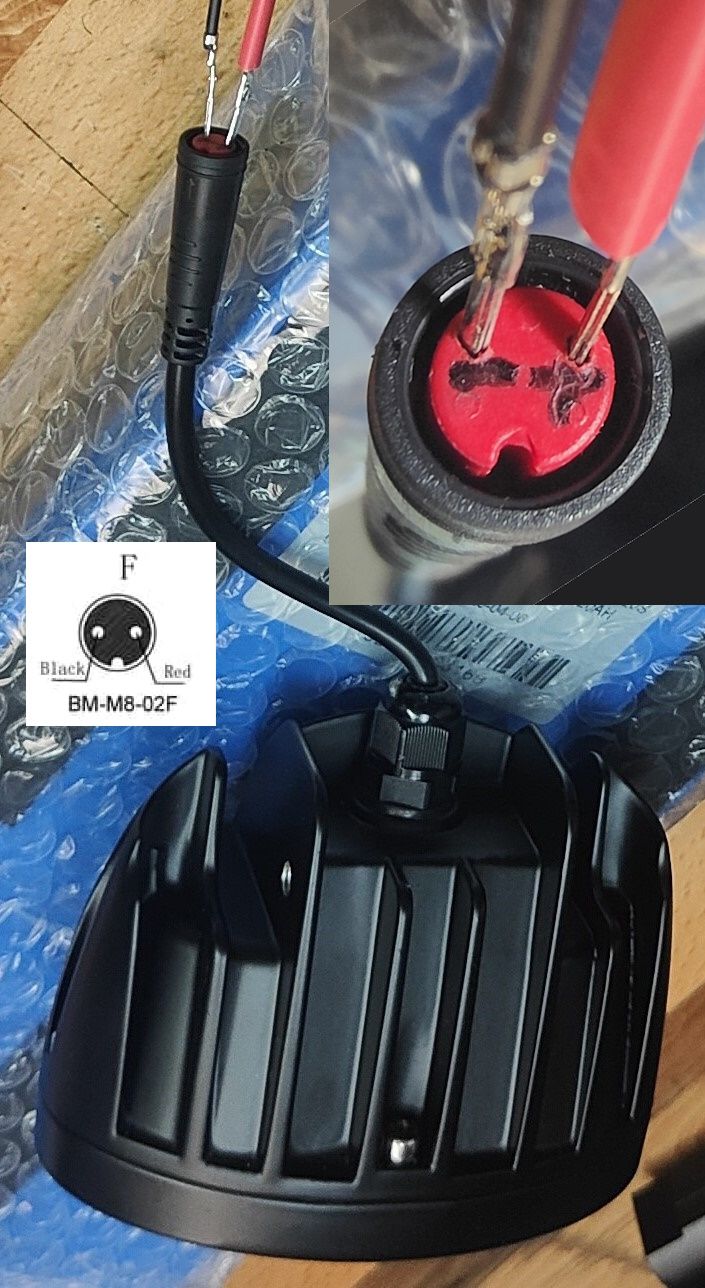

6. Image shows the wiring configuration adopted on TurboTap M8 and the stock NAMI headlight. The connector can be adopted for other makes in accordance with this wiring configuration.
