TurboTorch Bushmaster 8200/M8 Headlight

Includes Bushmaster 8200 fixture fitted with M8 connector for NAMI models and an external remote.

• Measured on meter to consume 100 watts, delivering 8200lm and will drop back with thermal management as required, assumed to sustain 80 watts nominal due to excellent thermal design.
• Fixture has siz Cree XHP50.2 emitters at 6000K colour temperature with 70CRI configured as:
  • 4 x Spot with 10 degree beam width.
  • 2 x Wave with 60x15 degree beam width.

• Includes handlebar remote which is secured with a green O ring (three sizes).
• Support wide voltage 12-90V.
• NAMI Plug-and-play, fitted with red 2-pin M8 connector to either replace or compliment stock headlight, powered from headlight circuit or Auxiliary Power Output on TurboTap NFC Bypass Switch.
• Bushmaster 8200 has a mounting plate 40mm wide for an M5 bolt, designed specifically for 40mm brackets such as the stock headlight holder/brackets from NAMI and Kaabo. An optional hardware kit is available comprising of:
  • Bolt: M5x50mm (304 A2-70 stainless)
  • Nut: M5 Bakelite
  • Black ABS spacer 2mm.
  • Two washers: 1mm and 0.5mm
  • You can choose option to:
    • Replace the existing headlight, such as those on NAMI or Kaabo and re-use existing NAMI Head Light Holder or Kaabo Bracket with the 40mm mounting kit option, or
    • Add the TurboTorch as an additional light in conjunction with the stock headlight and mounting kit option and two additional items:
      • NAMI Head Light Holder
      • M8 2 Pin Red Female-2xMale (Y Splitter) Prepared Lead

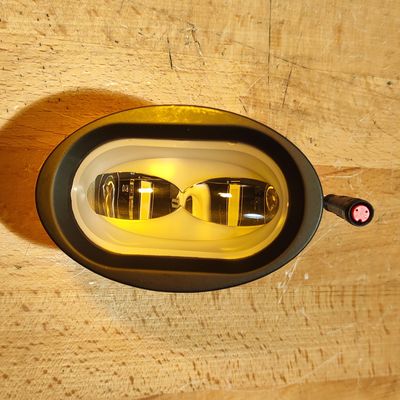

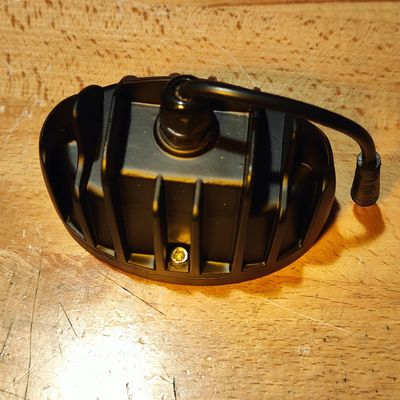

If you require spacers for a different length other than 40mm, please add comment at checkout we will see what we can do. Images below show 9mm to 40mm kit of the TurboTorches and the NAMI headlight and Head Light Holder.

• Fixture weight: 420 grams.

Notes:

1. With a large count of narrow 10-15 degree emitters (four) 8200 is well suited for long throw..
2. UI factory configured for scooter light switch integration whereby turning scooter headlight switch ON starts in mode 1 (low). Intentionally no flash mode to allow cycle between intensity modes with remote (or top) button.
   1. Low is 2x 60x15 degree (wide)2. Medium is 4x 10 degree (narrow)
   3. High is combined all 2x 60x15 degree (wide) and 4x 10 degree (narrow)
   4. Off

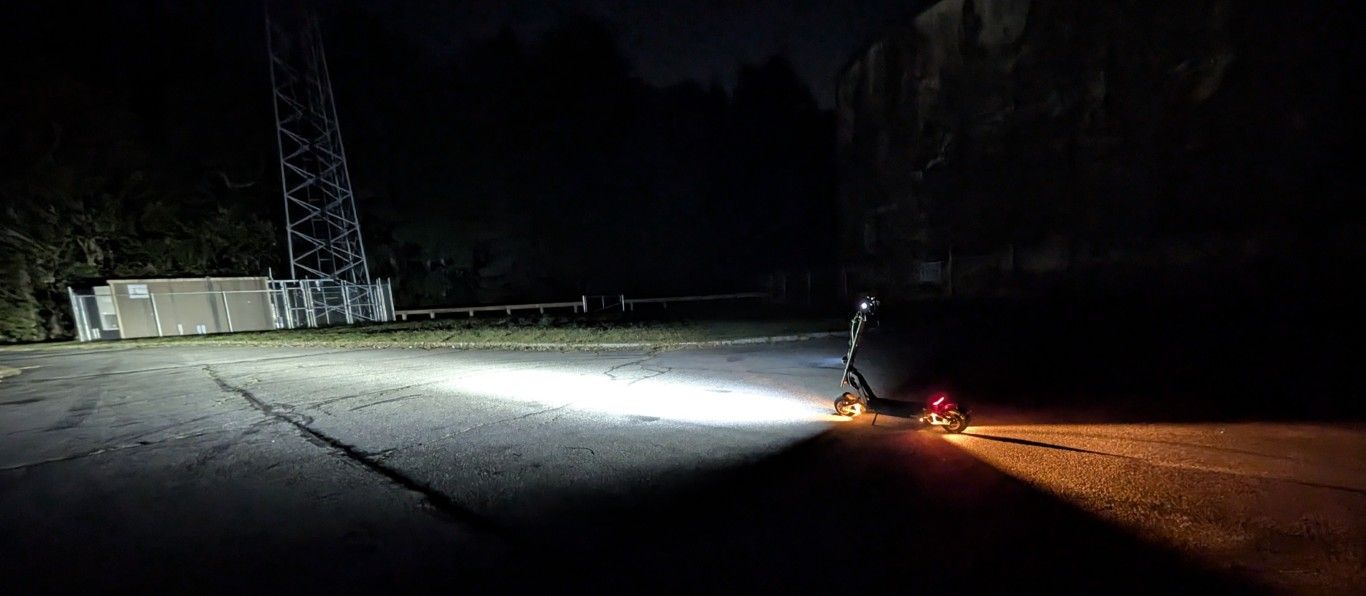

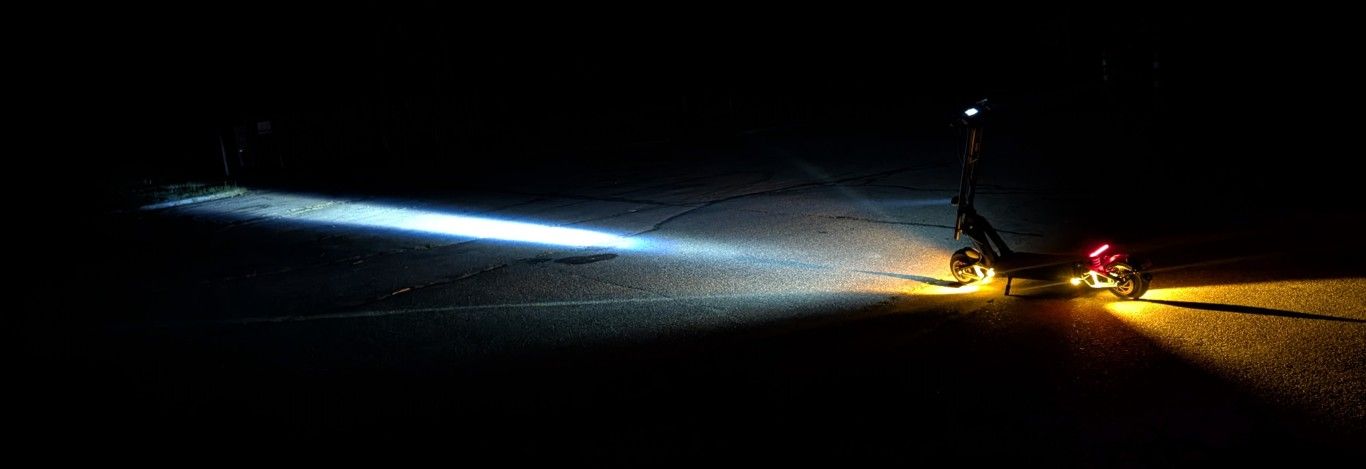

3. Images showing InMotion RS Stock light vs BushMaster 8200, courtesy Marc (Massachusetts, USA)

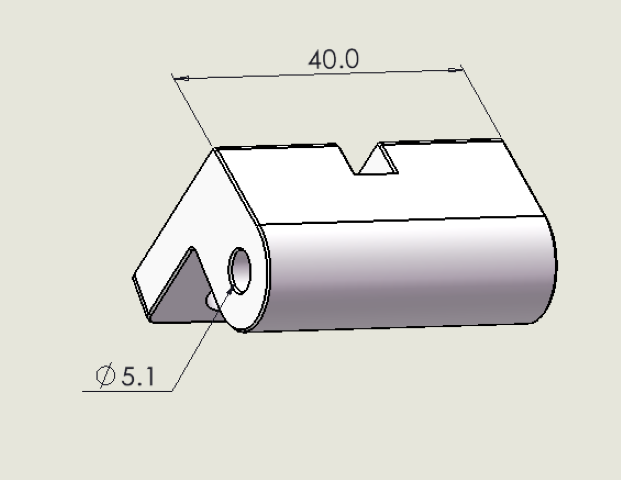

4. Drawing of fixture bracket (included) and photo of the NAMI Head Light Holder which combined provide perfect fit on NAMI models:

5. Manufactured by Shenzhen Beam-Tech Electronic, ODM brands include ITARLIGHTS and FluxMotion, Belgium. Beam-Tech's products are also supplied as ODM brands in large Australian retail stores. One AliExpress seller offers this fixture with undisclosed battery at AUD$520. They are premium fixtures!

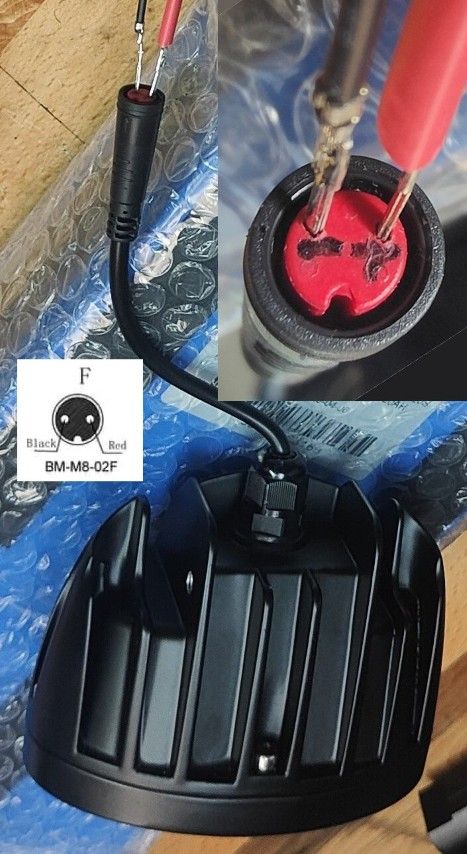

6. With NAMI systems, as a replacement to the stock NAMI headlight, a slightly different user interface applies. The TurboTorch M8 headlight will not automatically turn on when light switch is on. When the fixture (or remote) button is pressed, the headlight will turn on at full brightness. The same buttons adjust brightness and can turn off the headlight even if the light switch is on. Operation differs if connecting via the TurboTap NFC Bypass Switch with Auxiliary Power Output, which is fully independent of the light switch. Image shows the wiring configuration adopted on TurboTap M8 and the stock NAMI headlight. The connector can be adopted for other makes in accordance with this wiring configuration.
