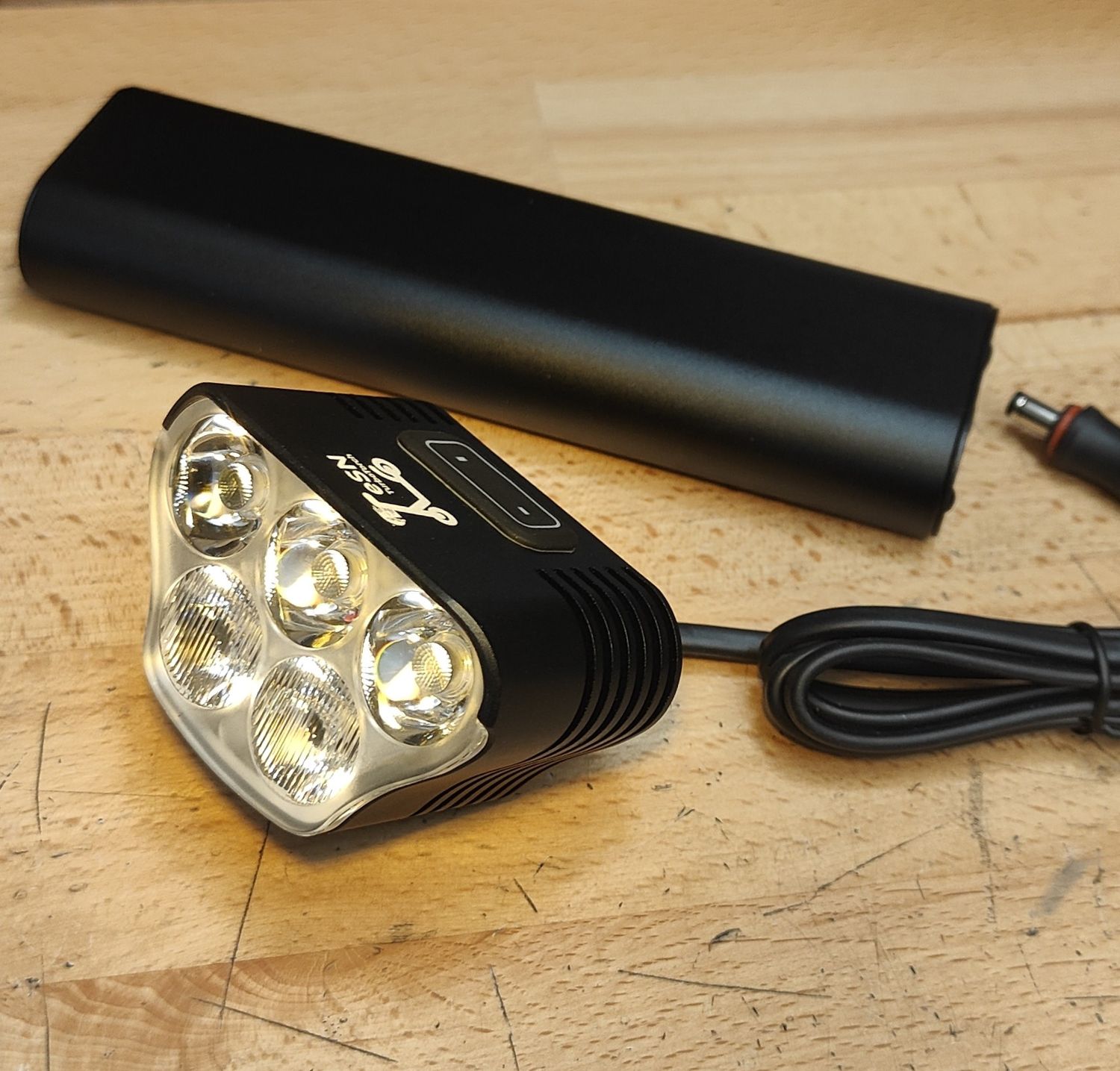

TurboTorch Enduro 5000/72Wh Headlight

• The TurboTorch Enduro 5000/72Wh Headlight delivers 5000 Lumen (lm) of light output with 72 Watt Hours external battery making it exceptional value for run-time.

• Five (5) Cree LED emitters totalling 5000lm comprising of two banks:
  • Three (3) LED's XHP50 with 20 degrees lens that provides a spot beam. The spots are still relatively broad making them good for medium range at medium brightness. Located in the top bank with cool 6000 kelvin colour.
  • Dual (2) LED's XP-L with 30 x 10 degrees wide lens. Good for use in high pedestrian areas or as a compliment to add warmth to brighter, whiter emitters. Located in the lower bank with warm 4500 kelvin colour.
    If using as a primary light, typically the three white XHP50's are operated at medium brightness for 5 hours runtime.
• Lens of approximately 20 degrees (cool) and a broad 30 degrees (warm).
• 72Wh delivered by external 20,000mAh battery (4x 5,000mAh 21700 cells) presented as 7.4v (nominal) to light fixture and with USB Type C charging port for charging. Supports concurrent charge.
  • The light will operate when USB Type C is connected and/or battery is being charged.
• Supports USB Type A output (5V 800mA-1A) to charge other USB devices.
• Expect runtimes of:
  • 2 hours with all 5 LED's on high (initially at 56 watts).
  • 3 hours with 3 LED's on high.
  • 5 hours with 3 LED's on medium (eSN's recommended setting, ~12 watts producing 1500 lumen).
  • 24 hours with 2 LED's on low.
• UI has two buttons, one for the each bank. Single press: 1. High, 2. Medium, 3. Low, 4. Flash, 5. SOS, 6. OFF (long hold also OFF). Double press: 1. All 5 LED's High, 2. All 5 LED's Medium, 3. All 5 LED's Low, 4. OFF.
• 3 LED's (green) on rear to show Battery Status and one on each of the two buttons (green & blue) to inform which bank(s) are operating. There is also an LED on the battery near the USB Type C charging port that presents green when charging.
• Waterproof design IP64 with waterproof plug. Aluminium housing. Includes 360 degree adjustable holder (bracket) to clamps to handlebar (with quick release) and straps for battery.
• Weight: 700 grams (185g light, 421g battery, 40g clamp, 53g straps), size of light: 70mm x 50mm x 52mm, size of battery:152mm x 52mm x 25mm.

Notes:

1. Manufactured by Dongguan Yaqi Outdoor Products (model M5) who ODM as Mangel Eyes brand.
2. The user manual of current stock suggests emitters are XP-E, however it is assumed the specification is manual is generic. It also does not reflect concurrent charge which is now supported.
3. Current draw with all 5 emitters on high, medium, low accordingly: 6.7A (56w), 3.5A (29.4w), 1.5A (12.6w) @ 8.4VDC. With all 5 LED's operating, thermal management may drop output to approximately 3500 lumen.
