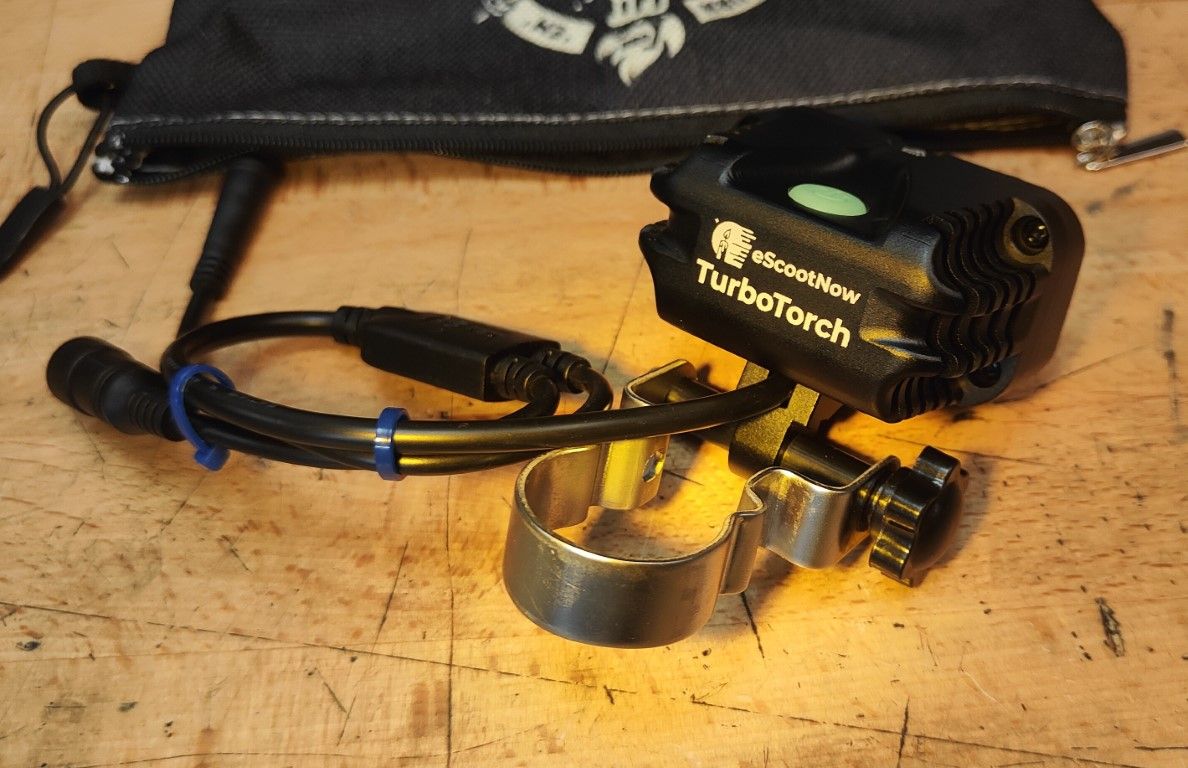

TurboTorch Bushmaster 5000/M8 Headlight (NAMI)/Teverun)

• TurboTorch Bushmaster 5000/M8 Headlight is a 2-LED, high-performance, aftermarket headlight for plug-and-play fitment into eScooter models of NAMI and Teverun (the later via Conversion Cable).
• The luminaire draws 20 watts across two CREE XHP50.2 emitters and puts out a sharp but not too cold 6000 Kelvin (K) colour temperature producing 5000 Lumen (lm) with a long-throw beam width of 10 degree.
• As an upgrade from stock headlights, Bushmaster 5000/M8 throws a lot more light a good 10-40 meters ahead of the rider.

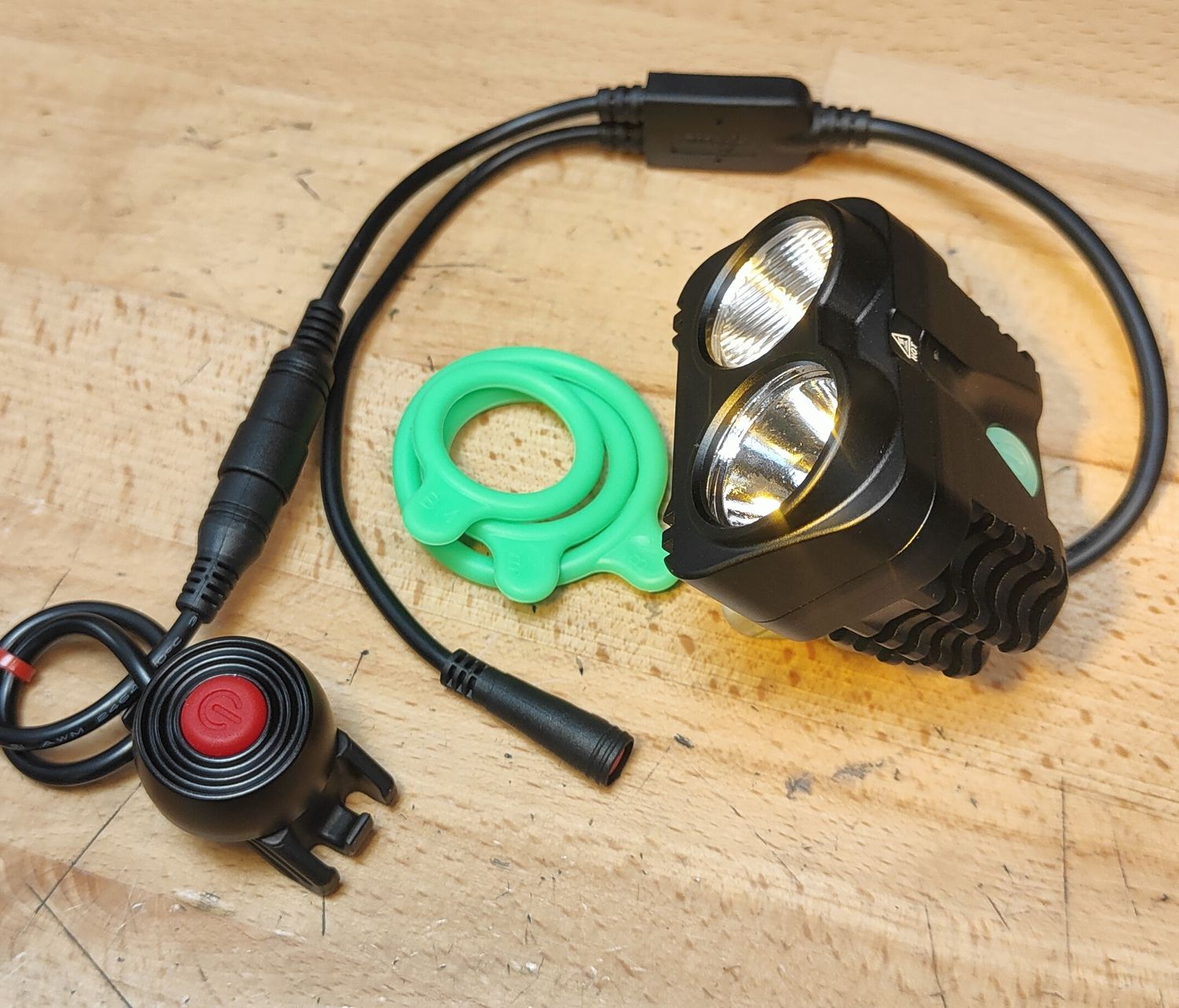

• Includes handlebar remote switch which is secured with a green O ring (three sizes).
• The UI (user interface) is factory configured to eSN design requirement which is purposed specifically for use on eScooters that have a factory stock headlight switch. When power is applied to the fixture, the headlight starts automatically in low brightness mode (1st mode). Modes are cycled with either remote button or the button in order:
  • 1st: Low (default when power applied to light).
  • 2nd: Medium.
  • 3rd: High.
  • Subsequent button press reverts to 1st (loop)
  • Long hold = Off.
• Supports wide voltage 12-90V.
• NAMI Plug-and-play, fitted with red 2-pin M8 connector to either replace or compliment stock headlight, powered from headlight circuit or Auxiliary Power Output on TurboTap NFC Bypass Switch.

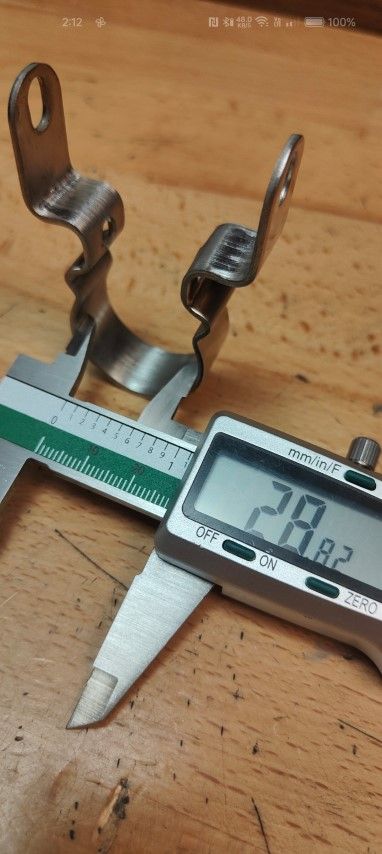

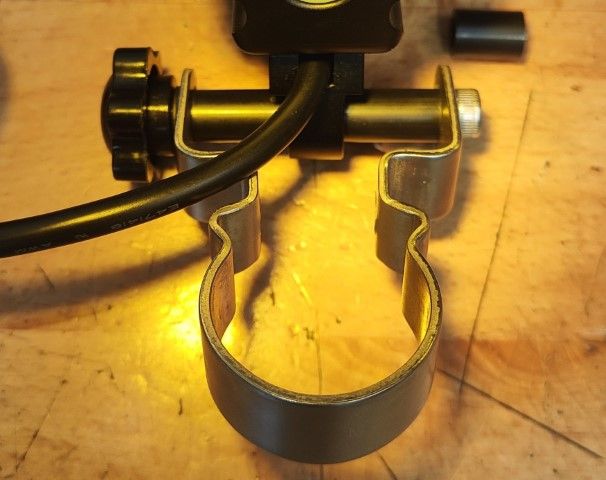

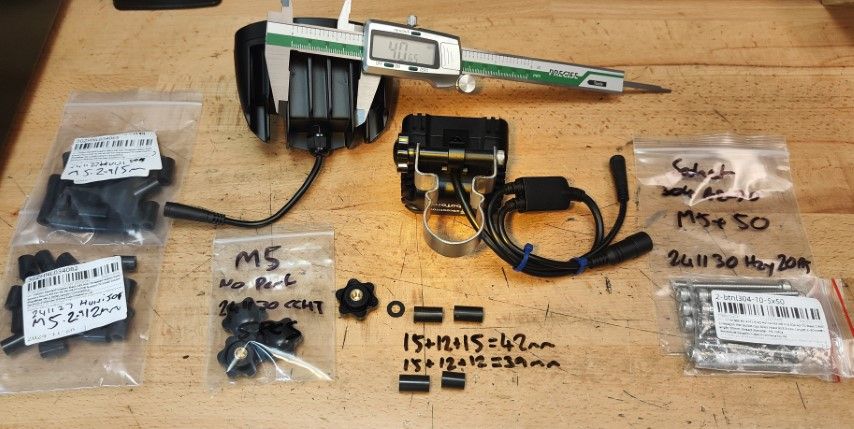

• The mounting plate is 40mm wide, suitable as drop-in-replacement with stock holder/brackets from NAMI, Teverun and Kaabo. An optional M5 Hardware Kit is available if needing to renew the nut/bolt. The kit includes an M5x50mm bolt (304 A2-70 stainless), M5 Bakelite Nut, M5 Lock Nut, M5 Wedge Washer and a couple of fine tuning washers.
• With mounting, you can either replace or co-exist with existing headlight:
  • Replace the existing headlight, such as those on NAMI, Teverun or Kaabo and re-use existing holder/bracket such as NAMI Head Light Holder or Kaabo Bracket.
  • Co-exist (add) the TurboTorch as an additional light in conjunction with the stock NAMI headlight, running both concurrently with these items:
    • NAMI Head Light Holder
    • M8 2 Pin Red Female-2xMale (Y Splitter) Prepared Lead
• Lightweight: 200 grams.

Notes:

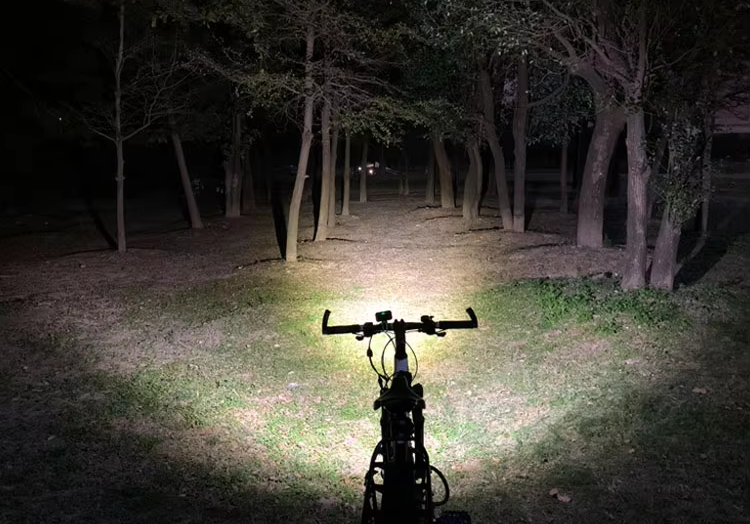

1. Some of the product images show the older version that had one emitter with 60x15 beam pattern and 9mm mount. Design evolved since those photo's were taken as now all three emitters are 10 degree beam pattern and the mount is 40mm native. The changes provide better throw and simplifies the mounting hardware count.
2. Manufactured by Shenzhen Beam-Tech Electronic, ODM brands include ITARLIGHTS and FluxMotion, Belgium. Beam-Tech's products are also supplied as ODM brands in large Australian retail stores. One AliExpress seller offers this fixture with undisclosed battery at AUD$520. They are premium fixtures!
3. Showcase of the headlight low/high quick flick function with TurboTap switch as shown in UI showcase 21m:20s.
4. Field footage Bushmaster 5000 from Toohey Forest Park, Brisbane, Queensland, Australia (inaugural model 1x10 degree spot, 1x15x60 degree wide).
5. Field images courtesy Grayson, NSW, Australia (inaugural model 1x10 degree spot, 1x15x60 degree wide):

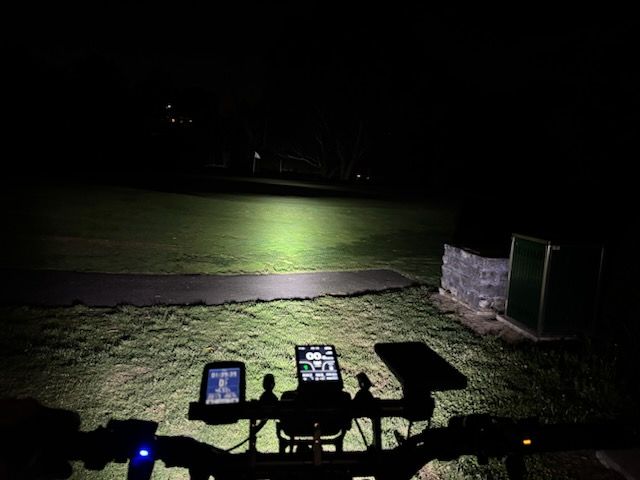

   1. Kaabo Wolf Warrior 11/X/GT Stock Headlight (AUD$30)

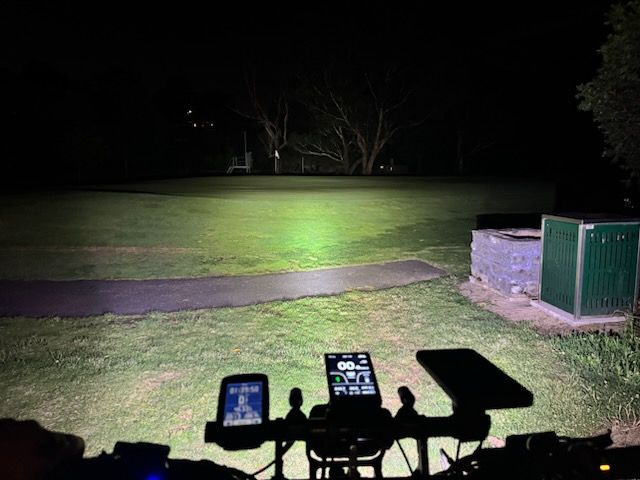

   2. Kaabo Wolf Warrior 11/X/GT Stock Headlight with TurboTorch Bushmaster

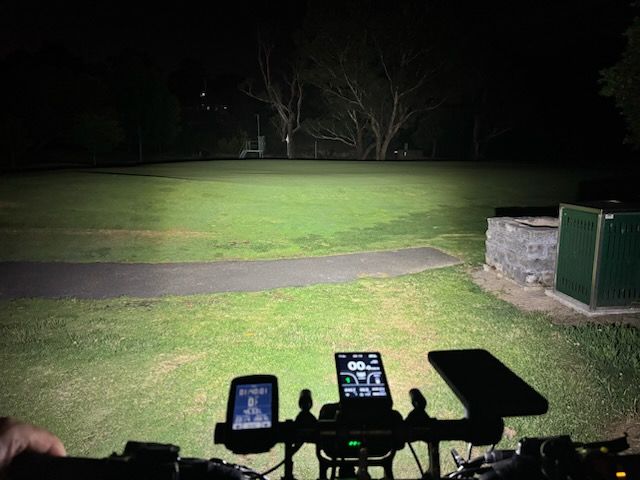

   3. Magicshine Monteer 12000 (AUD$800)

6. Footage of rider field report from Chicago, Illinois, USA of the Bushmaster 8200 fitted to NAMI Burn-e. The camera panning off to the side denotes remote switch press (low, medium, high). The rider, Darryl (ESN-SO3564) runs the Kaabo Wolf Warrior headlight concurrently with Bushmaster 8200. The high CRI and 6000K kelvin across Bushmaster and Cobra helps differentiate between stick and cottonmouth. For those closer to eSN and surrounds, that would be a Cane Toad and a rock. Footage shows inaugural model 8200 with 4x10 degree spot, 2x15x60 degree wide).

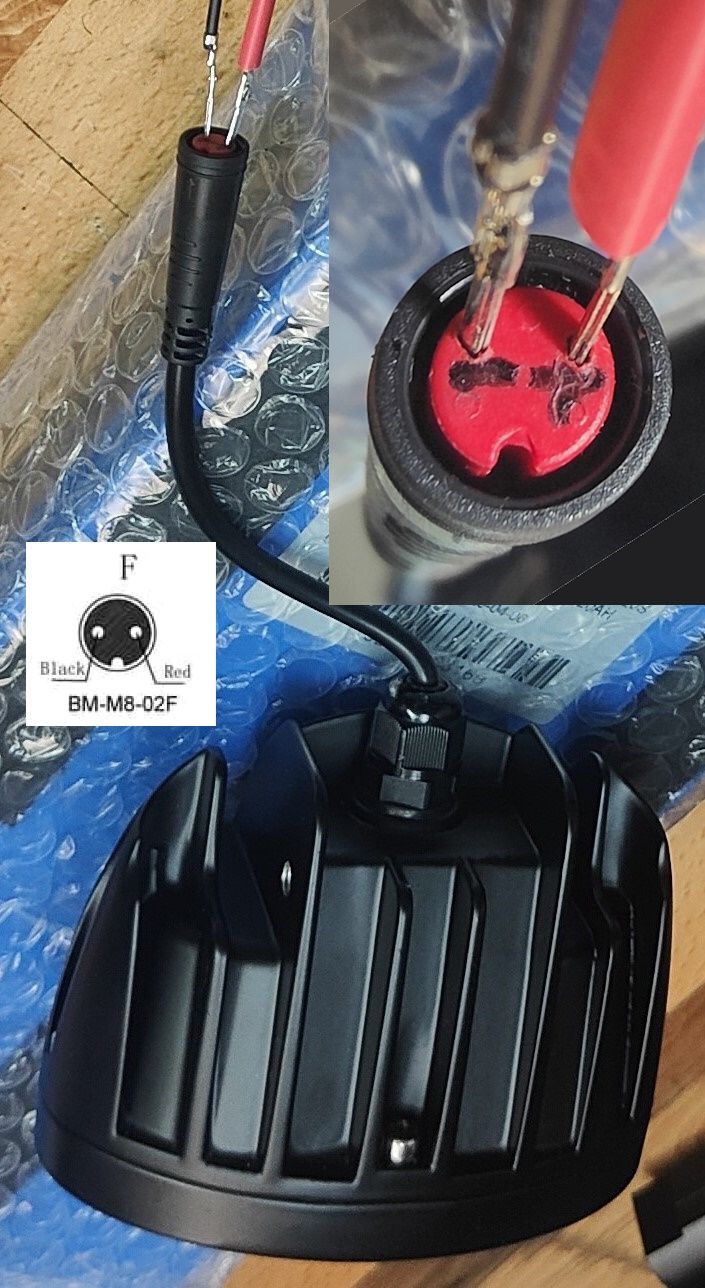

7. With NAMI systems, as a replacement to the stock NAMI headlight, a slightly different user interface applies. The TurboTorch M8 headlight will not automatically turn on when light switch is on. When the fixture (or remote) button is pressed, the headlight will turn on at full brightness. The same buttons adjust brightness and can turn off the headlight even if the light switch is on. Operation differs if connecting via the TurboTap NFC Bypass Switch with Auxiliary Power Output, which is fully independent of the light switch. Image shows the wiring configuration adopted on TurboTap M8 and the stock NAMI headlight. The connector can be adopted for other makes in accordance with this wiring configuration.


8. Factory image.
