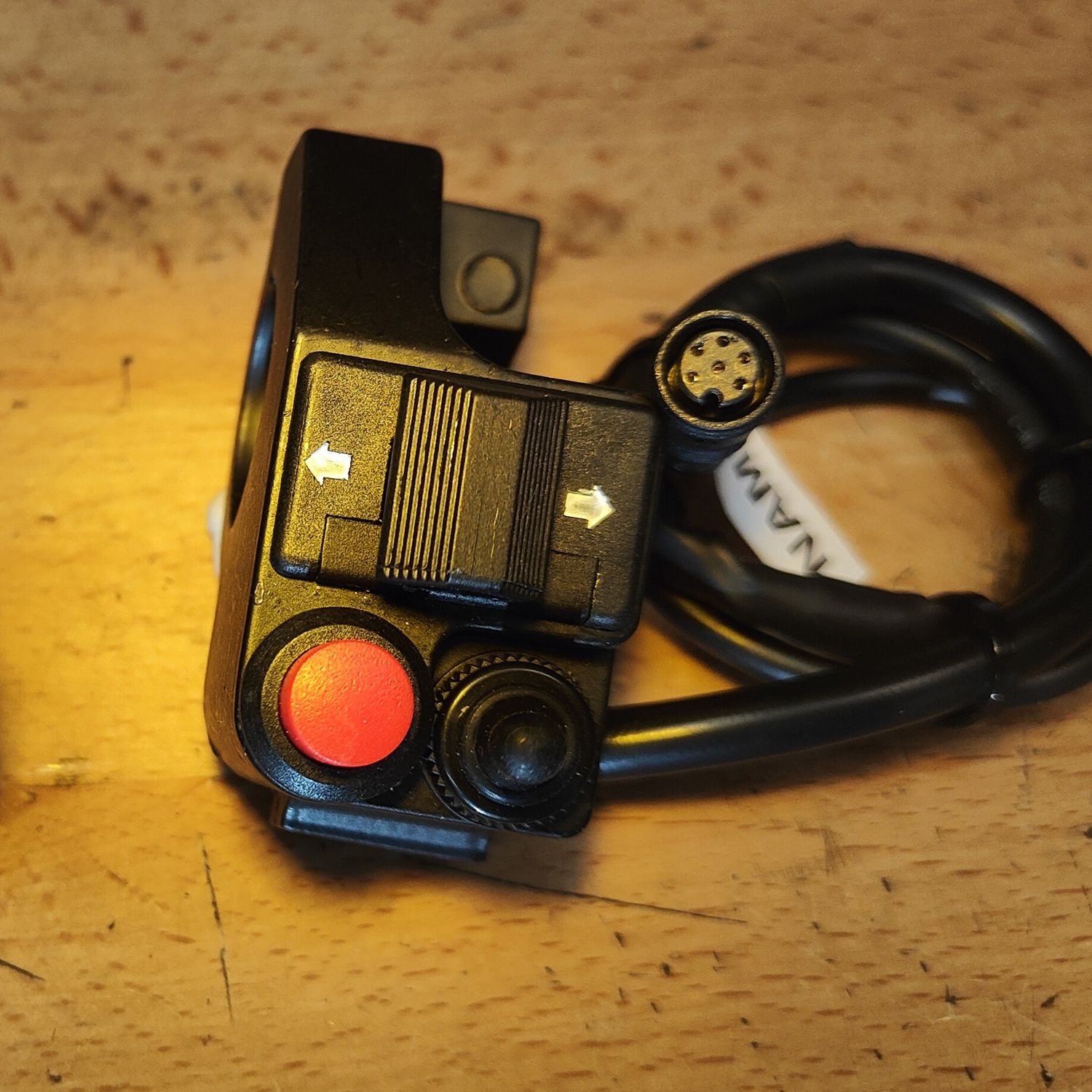

TurboTap Light and Horn Switch for NAMI

• eScootNow's TurboTap Light and Horn Switch for NAMI is a plug-and-play aftermarket drop in replacement switch suitable for all NAMI Electric models (including Burn-e, Klima, Stellar and Blast).
• Adopts a female M8 6-pin black connector using the same wiring configuration as that of the NAMI Light and Horn Switch.
• Typically sought after due to:
  • The turn signal slider / rocker mechanism allows rider to easily feel signal switch position and is much more comfortable to use due to no press/depress.
  • Easier to press horn button.
  • Headlight uses toggle mechanism allowing more convenient "quick flick".
  • Higher switching contact providing improved reliability for switching high loads such as brighter aftermarket horns and headlights such as eSN TurboTourch BushMaster M8.
• Includes 69x32x1 self-adhesive rubber strip. Apply the strip to the bar before fitting to form waterproof seal.
• The casing features a "rear view mirror mount" which can be used for accessories such as phone holders intended to mount to motorcycles.

Notes:

1. Released as part of the eSN Originals line-up October 2025, manufactured by eSN' TurboTorch M8 NAMI aftermarket headlights.

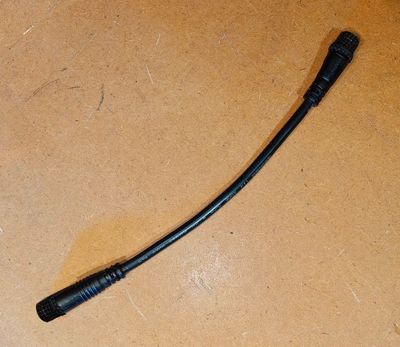

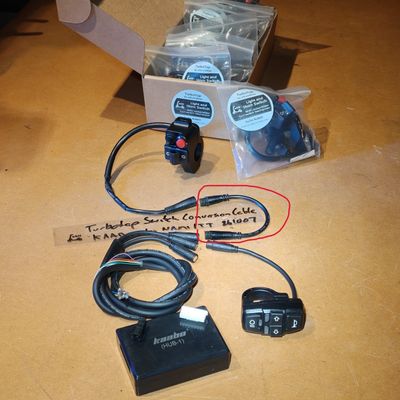

2. Conversion cables for Kaabo and Teverun are currently in product development backlog, this would allow for plug-and-play compatability with those makes.
3. The TurboTap switch has a female 6-pin black connector and is a drop in replacement for the factory original NAMI Light and Horn Switch, both the early 5-pin versions and the 6-pin versions (introduced early 2023). The 6th pin, located in center allowed the newer (post 2023) factory switches to introduce LED status lights for turn (adjacent to the buttons). The 6th (center) pin is not used on the TurboTap switch as it is without turn status LED, the turn position can be felt with finger.
4. Showcase of the headlight low/high quick flick function with TurboTorch M8 as shown in UI showcase 21m:20s.

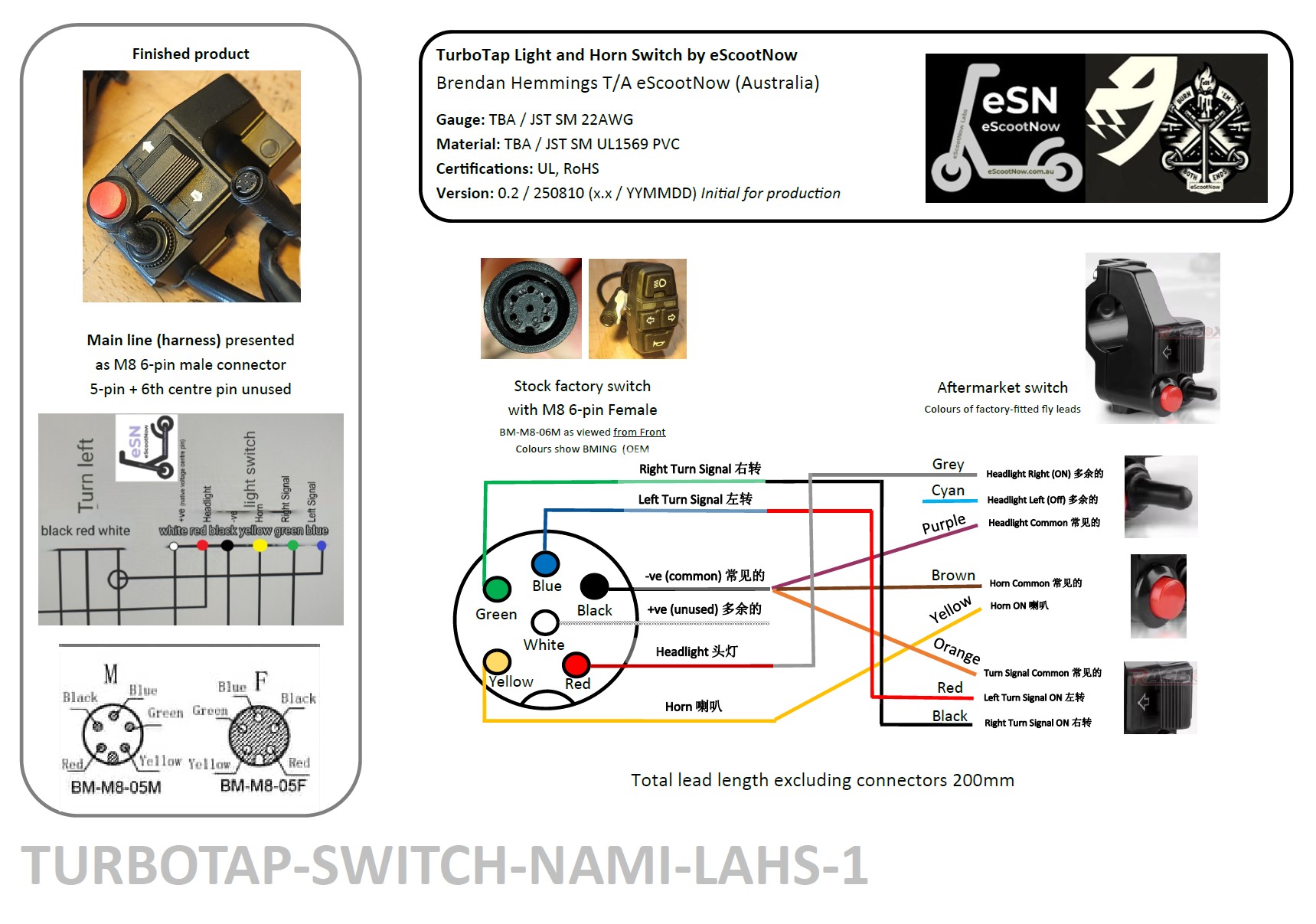

5. Wiring schematic diagram.
