NAMI Horn (suit Burn-e, Klima and Blast)

• Horn Suits Burn-e, Klima and Blast.
• Typically required when replacement is needed from physical damage.
• 66mm diameter.

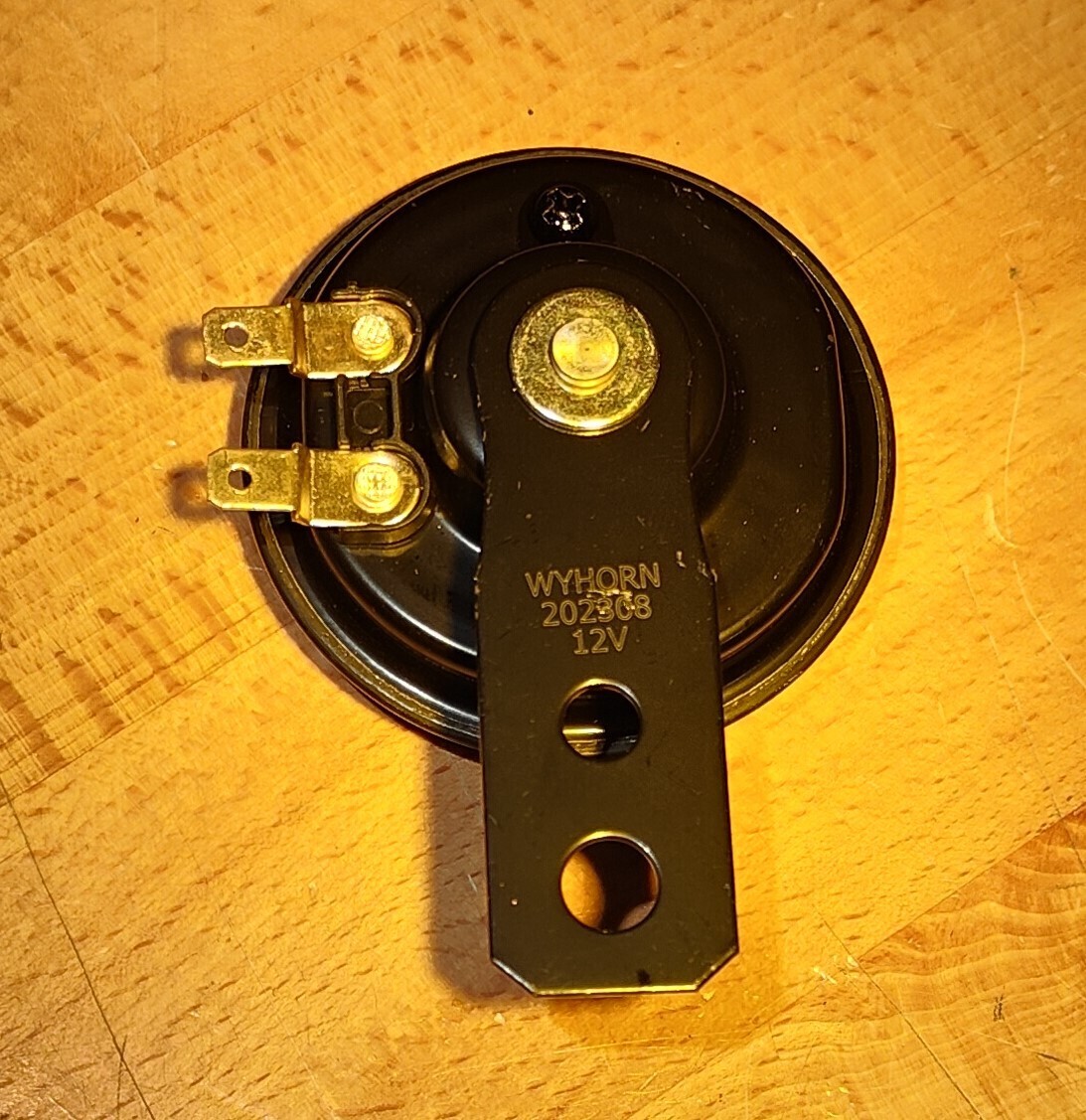

• 12 volt, 110dB, 1.5A, nameplate DL-1265 (front) WYHORN yyyymm 12V (rear).
• Requires capacitor or the new moulded horn connector which serves the task of the capacity (drops voltage down to 12V)..
• Genuine NAMI Factory Spare, wired for plug-and-play installation.

Notes:

1. Does not suit NAMI Stellar.
2. Understood to be 480Hz according to similar designation from DL-1265H spec sheet from Changzhou Fujie Vehicle Components Co.,ltd.
3. For a lower frequency horn (deeper sound), consider the aftermarket 430Hz.
4. This is the newer model horn that is without capacitor. It relies on the newer moulded horn connector that was developed January 2023 as described by Michael Sha - that connector has the active components inside the moulded connector to drive this 12 volt horn. The moulded horn connector negates need for external capacitors to be exposed on the horn terminals, which is a more resilient design than the older, somewhat troublesome exposed arrangement. You only want one capacitor - the one within within this product (newer, moulded) or the older external one (with non-moulded connector) as shown below.

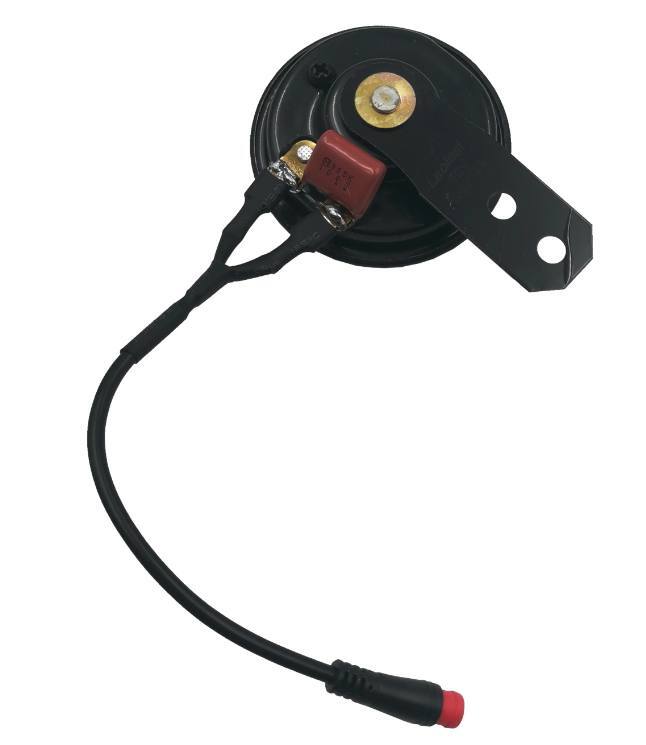

Image below shows the older, external capacitor soldered to horn.

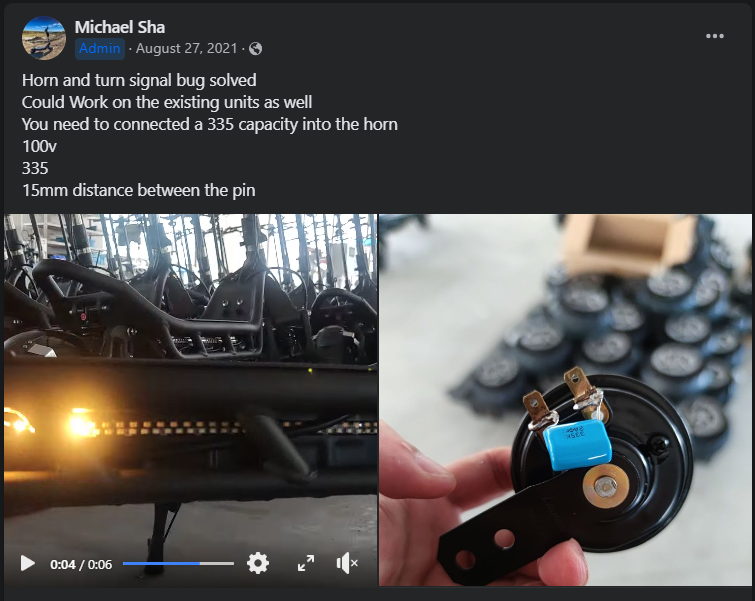

Specification of ideal external capacitor below (100v 335j) as described by Michael Sha.
