NAMI Swing Arm for Motor (suit Burn-e)

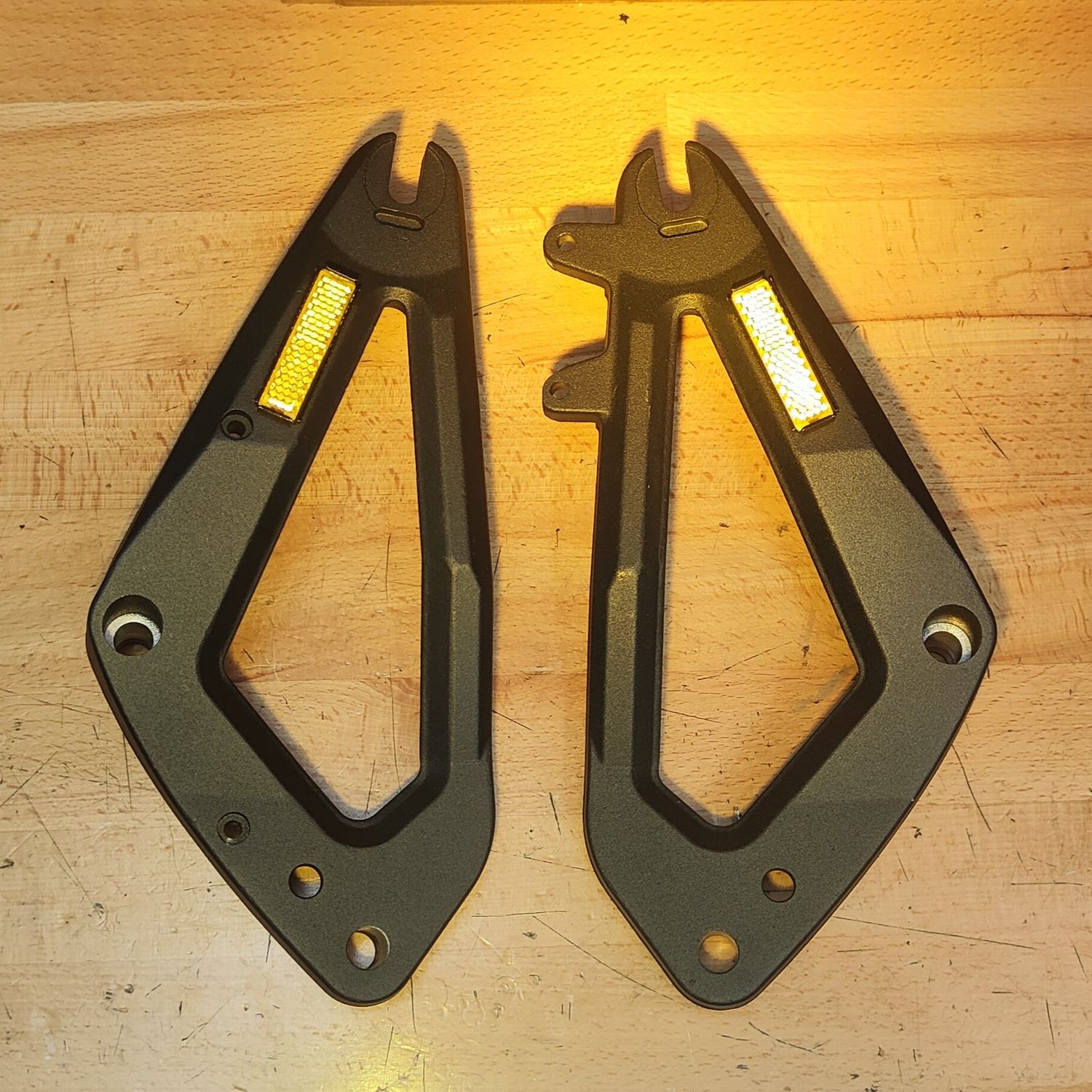

• Swing Arm's for Motors on NAMI Burn-e are produced in two variants:
  • Left:
    • Motor mounts on the left end of the arm as viewed from the side.
    • Suits front left or rear right.
    • Has provision for motor cable protection plate with 5mm unthreaded hole in casting.
  • Right:
    • Motor mounts on the right end of the arm as viewed from the side.
    • Suits front right or rear left.
    • Has provision for mounting the brake bracket and calliper with two 5mm unthreaded holes in casting.
• Both arms have:
  • 12mm unthreaded hole in casting on pivot end to accommodate the shaft for swing arm.
  • 10mm opening at the other end for the motor axil shaft.
  • 12mm unthreaded hole in casting center bottom with observed length of 32mm to directly accommodate the Suspension Shaft for Bottom, 120mm. The cavity for the screw head / washer is 16.75mm.
  • Two M5 threaded holes in casting for mounting of the plastic fender.

• Typically required when replacement is needed from physical damage such as front end collision or similar significant impact. Often renewed as part of heavy maintenance if the suspension shaft holes have deformed resulting in play in suspension.
• Genuine NAMI Factory Spare.

Notes:

1. Ensure the holes in casting are all nice and clean before fitting the shaft.
