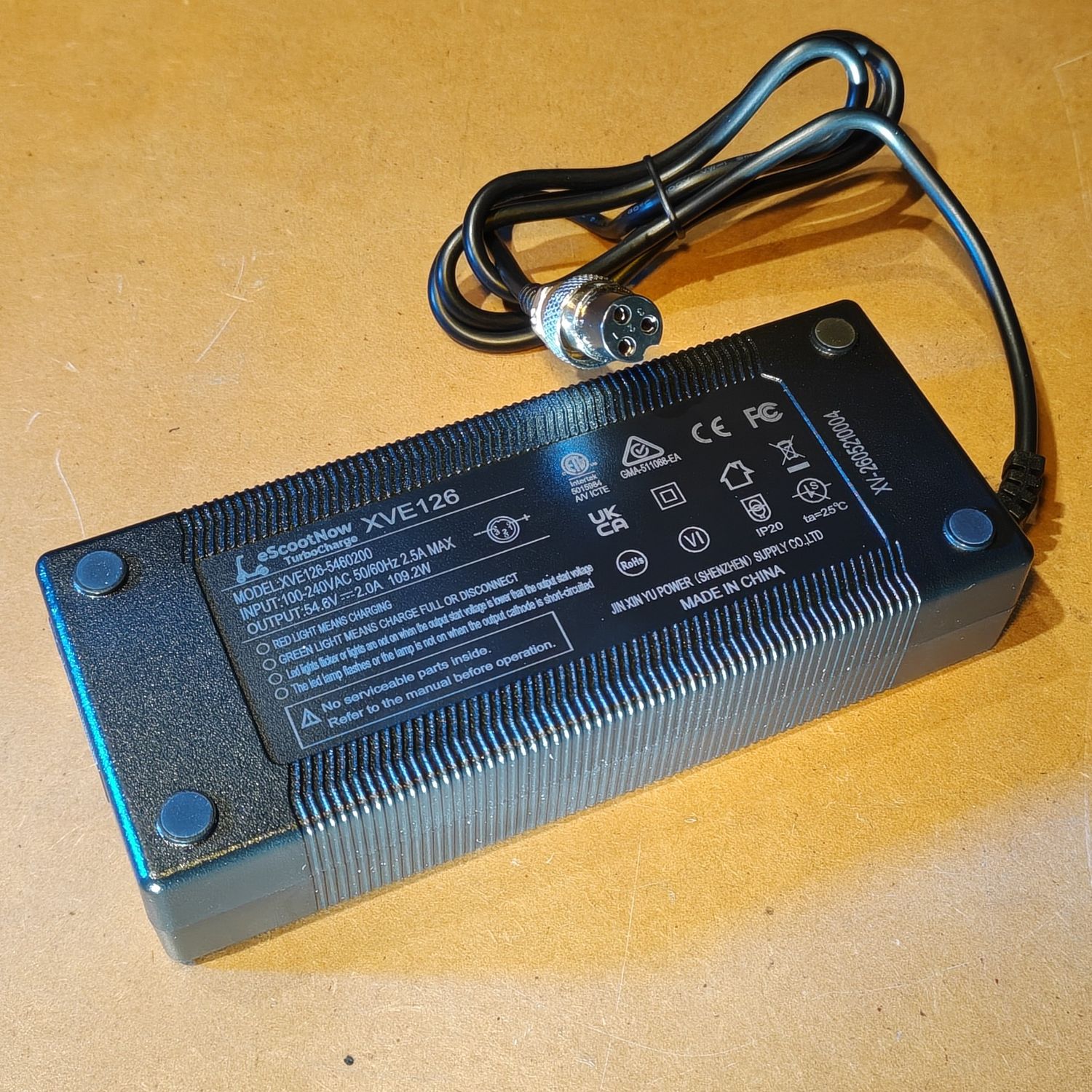

TurboCharge Charger 54.6V for 48V GX16-3F 2A [XVE126]

• The TurboCharge Charger 54.6V for 48V GX16-3F 2A [XVE126] is a common charger used on 48 volt models.
• Fitted with GX16 3-pin female plug (as pin 1 +ve, pin 3 -ve) which is adopted by most common makes and models that use this plug. If you require negative on pin 2 rather than pin 3, use a conversion cable.
• Suits:
  • Dragon GTS and GTR (including V2) 1st Generation models which use convention of pin 1 +ve & pin 3 -ve. Refer to the VIN nameplate underneath deck:
    • GTS to and including DRA22GTS570 (except 36V models),
    • GTS V2 to and including DRA22GTSV2419,
    • GTR to and including DRA22GTR620 (except 36V models),
    • GTR V2 to and including DRA23GTRV20500.

      2nd Generation builds of Dragon GTS and GTR (including V2) use pin 1 +ve & 2 -ve. This charger with a conversion cable is suitable for gen 2. 3rd Generation requires charger with YJ20 4-pin connector..
  • Early model Dragon Cyclone (inaugural Non-Pro model, dual motor 8" tyres, late 2022-2023). Subsequent 10" Cyclone are 52V.
  • Dragon Slayer and other Joyor S Series 48V builds such as Bolzzen Commando Generation 1 (green swing arms).
  • Dragon Eagle with conversion cable.
  • Zero 8 & 9 (but not 8X which is 52V system) and Dragon X9.
  • Kaabo Sky 8s & Sky 10C.
  • Teverun Fighter Mini (usually with conversion cable) and Blade X Eco.

• 100-240 volt input via C8 panel socket, includes Australian 3-pin power cable with C7 female plug.
• Charging status led presents Red = charging, Green = full or disconnect.
• Silent, fan-less design.
• Manufactured for eSN by XVE, well known charger manufacturer.
• Compliant with Regulatory Compliance Mark (RCM), proof of RCM compliance certificate number: GMA-511068-EA (to 25/10/26) and subsequent GMA-519079-EA (to 09/06/29)
• For your safety, include your scooter's make / model / serial / voltage and battery Ah capacity as order comment on checkout so that the appropriate voltage can checked to best of our ability as part of order fulfilment. Remember some makes have models that are available in variants that have different voltages and inappropriate selection of higher voltages is a common cause of thermal runway and house fires folks.

Notes:

1. Functionally identical to to the Gojusin alternative.
