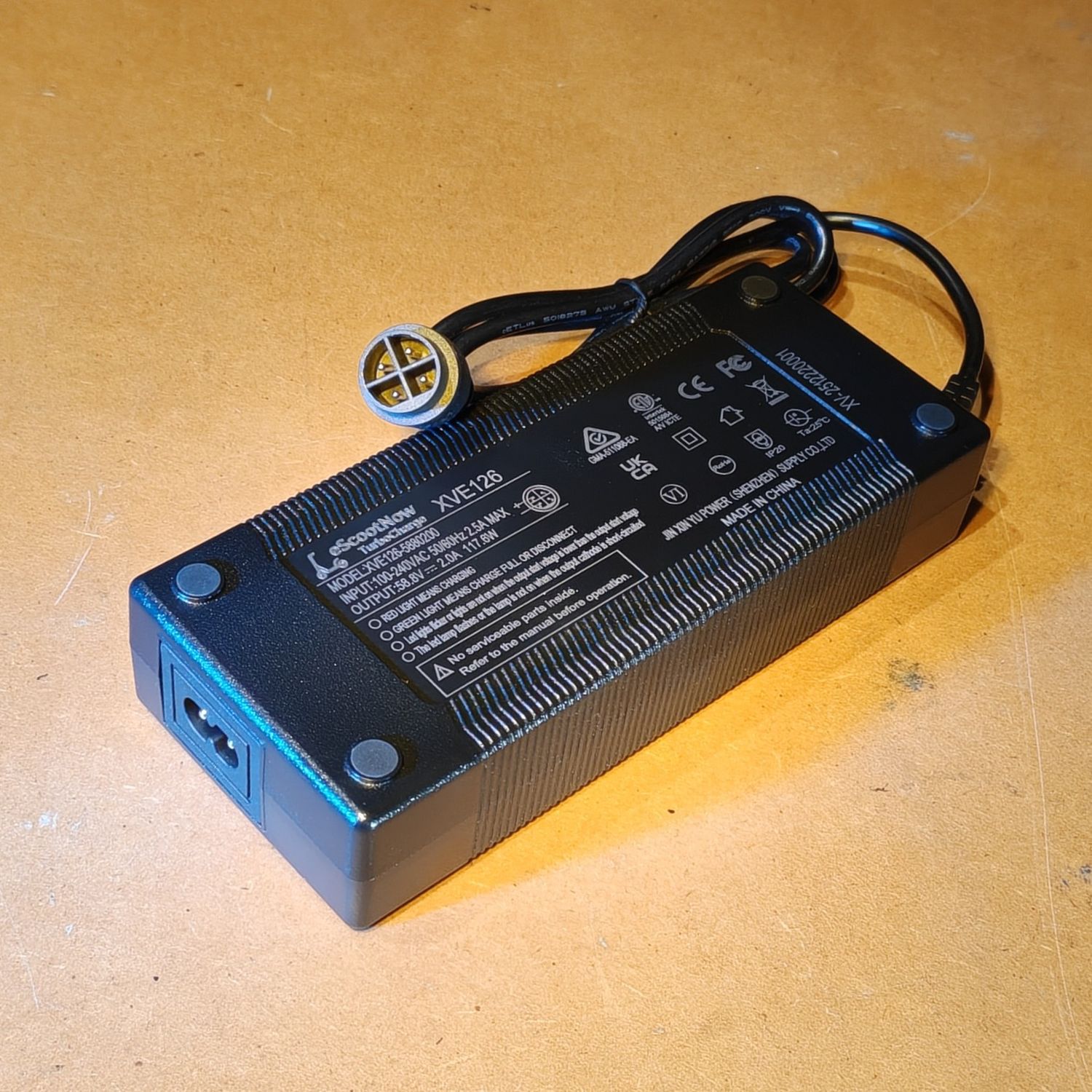

TurboCharge Charger 58.8V for 52V YJ20-4M 2A (Dragon Cyclone/Scorpion) [XVE126]

• The TurboCharge Charger 58.8V for 52V YJ20-4M 2A (Dragon Cyclone/Scorpion) [XVE126] is the factory original charger with the newer black moulded 4-pin connector to suit:
  • 2nd generation (2025) charging port builds of Cyclone series:
    • Dragon Cyclone (single motor) from DRA24CYCLONE0240
    • Dragon Cyclone Pro from DRA24CYCLONEPRO00480

1st generation (2022-2024) charging port builds are 3-pin and require a Charger with GX16 3-Pin connector (or XVE alternative). The early model Cyclone with dual motor, 8" tyres requires charger for 48V (or XVE alternative).

• Dragon Scorpion (all builds).
• If your scooter is one of these makes/models and the charging port looks like this with four pins, this charger will be appropriate. This charger is fitted with YJ20 4-pin male plug (as pin 2 +ve, pin 4 -ve).

• "Standard charge" speed, 2.0 amp.
• Charging status led presents Red = charging, Green = full or disconnect.
• 100-240 volt input via C8 panel socket, includes Australian 3-pin power cable with C7 female plug. Silent, fan-less design.
• Manufactured for eSN by XVE, factory original of Dragon and Kaabo.
• Compliant with Regulatory Compliance Mark (RCM), proof of RCM compliance certificate number: GMA-511068-EA (to 25/10/26) and subsequent GMA-519079-EA (to 09/06/29).
• eSN can check compatibility if you provide details of make/model in comment at checkout.

Notes:

1. Existing 3-pin chargers can be converted to 4-pin with TurboCharge Conversion Cable (variant: YJ20 4-pin Male [24] Dragon 52V Langfeite models (Cyclone & Scorpion)). This cable converts the more common GX16 3-Pin female charger such as this GX16 3-Pin for use on Scorpion or the Dragon Cyclone 2nd Generation charging port models which require JY20 4-Pin male charging plug.
