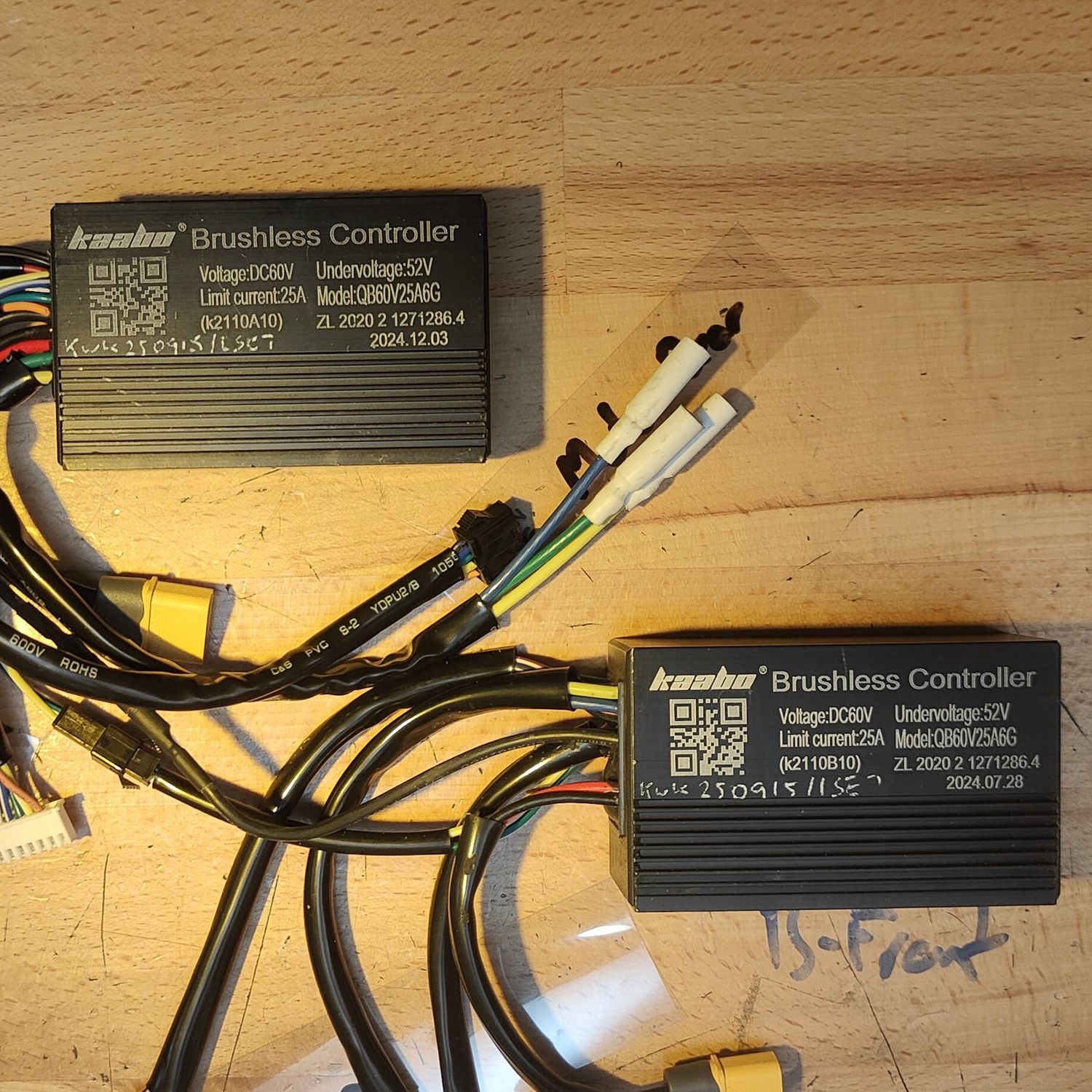

Kaabo Controller 60V 25A K2 {KM03 & CM06-K2} (select Mantis 10 Pro)

• The Kaabo Controller 60V 25A K2 {KM03 & CM06-K2} (select Mantis 10 Pro) is the factory stock controller on select CTO builds of Mantis 10 Pro (non-plus) introduced 2025-2026 that are easily identified as having being built with factory fitted KM03 Central Display.
• This controller uses K2 protocol (as noted by K2 prefix designation on nameplate) which is compatible with:
  • KM03 Central Display and
  • CM06-K2 display throttle, which has different main line to KM03 Central Display convention.
• Has white JST XH connectors which connect to the hub / wire collection board.
• Commonly required to due to damage from water ingress and/or MOSFET damage which can result in resistance on wheel when attempting to freewheel by hand when controller is connected to motors.
  • Also required if wanting to uplift from LT01 display/throttle to a K2 protocol display such as KM03 Central Display, which like CM06 introduces NFC capability.
• Supplied individually, order both A (Rear) and B (Front) for both front and rear controllers.

Notes:

1. Refer to Reference Materials for Kaabo Page for technical info including wiring diagram guidance.
2. Refer to the main lines product page for suitable types if uplifting from LT01 to KM03 Central Display as main line arrangements need accommodate the 3-pin yellow connector for throttle and changes to other instrumentation such as ECO/Turbo / Single/Dual switch.
3. This controller is not suitable to fit into models with an LT01 display/throttle, such models are K1 protocol controllers and require K1 controllers of V2 or earlier V1.
4. Unknown if supports forthcoming late 2026 model Mantis King Pro (60V 25A 18Ah) as that model has an app which is unknown to be core to controller).
