The NAMI Electric factory Suspension Bushing resides on the Suspension Shaft adjacent to, and on both sides of the shock. It centres the shock placement along the shaft and serves as bushing for the shock and castings.

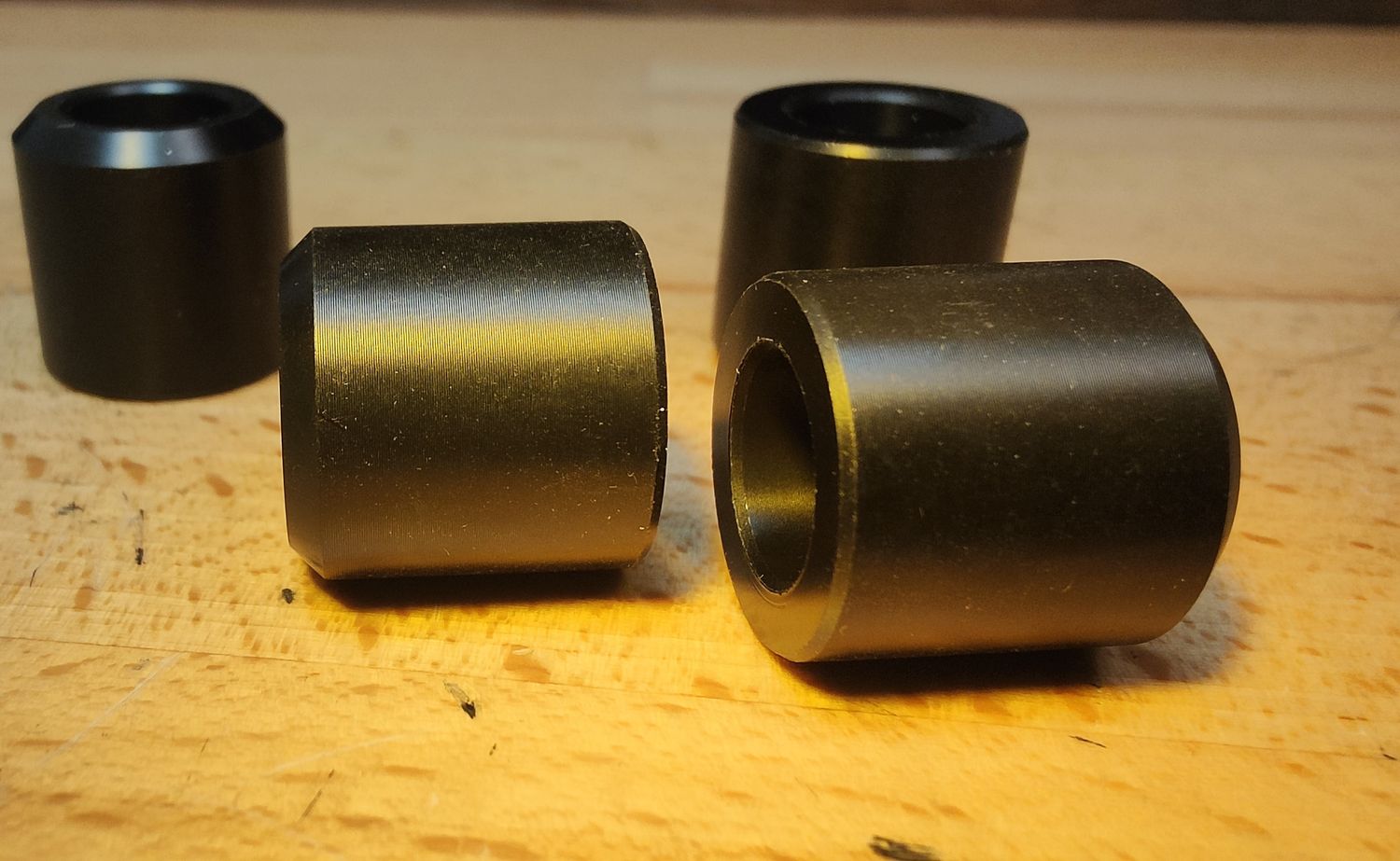

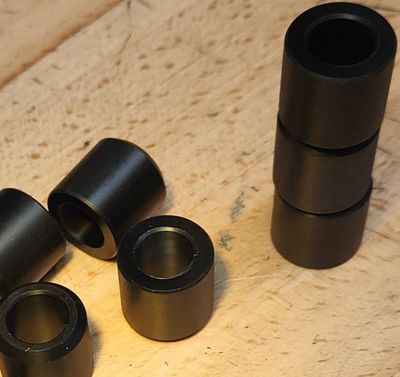

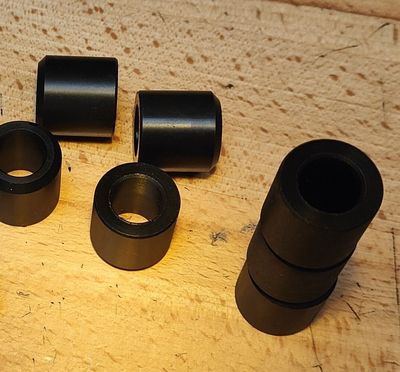

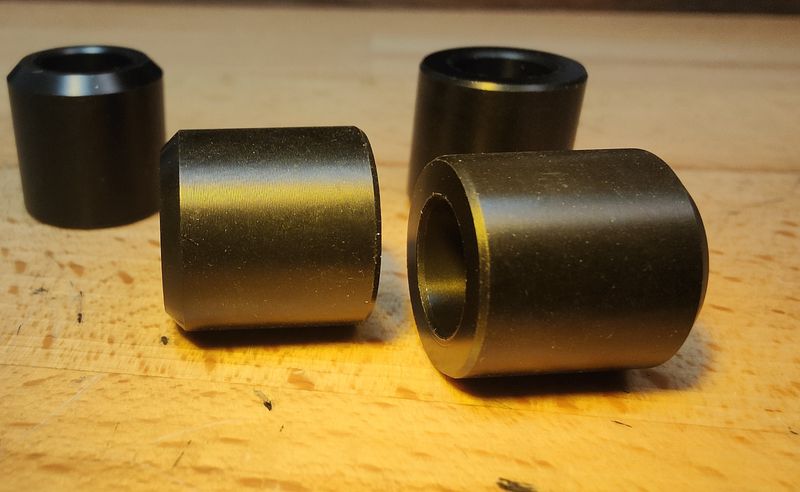

Black Plastic (poly PVC/ABS style). 12mm inner diameter, 20mm outer diameter, 20mm length, bevelled on one edge to 16mm for clearance.
Supplied individually (order qty 2 for both sides of THE shaft).
Suits all Burn-e and Blast models.
Typically required if original is damaged / worn or as part of heavy maintenance & cosmetic work. Not commonly required.
Genuine NAMI Electric factory spare.
Notes:
Image below shows rear top with ~1.4mm of additional silver stainless pack washers for the 1mm narrower FZ shock.
