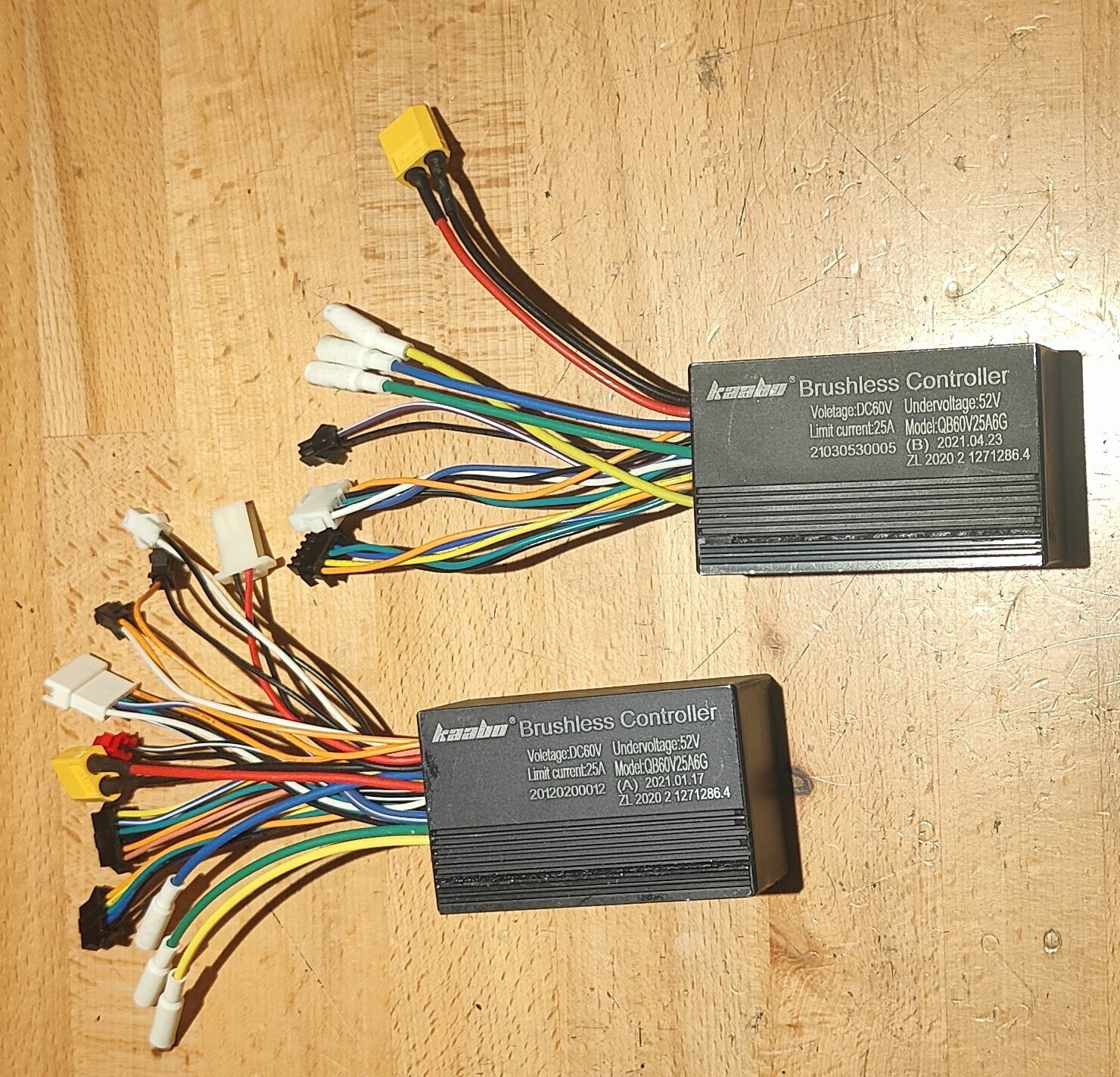

Kaabo Controller 60V 25A K1 V1 {LT01 & CM06-K1} (select Mantis 10 Plus)

• The Kaabo Controller 60V 25A K1 V1 {LT01 & CM06-K1} (suit select Mantis 10) is the factory stock controller on inaugural Kaabo Mantis 10 models, those prior to 2022. These models were without a headlight on the stem (and associated 3-pin yellow M8 plug) and were the inaugural "Plus" badge models often marketed in Australia as "Duo" (for dual motor) to differentiate it from the Mantis 10 PRO+ model which has the MiniMotors controller.
• This "V1" version is a legacy controller with black JST SM connectors which connect directly to the main lines. The subsequent V2 version controllers have white JST XH connectors which connect to the hub / wire collection board. Both versions use K1 (signalling) protocol and the are typically accompanied with the LT01 display/throttle. Both versions are legacy with the transition to the K2 protocol controller in 2025 which is usually accompanied with the CM06-K2 Kaabo Display (NFC).
• Commonly required to due to damage from water ingress and/or MOSFET damage which can result in resistance on wheel when attempting to freewheel by hand when controller is connected.
• Supplied individually, order both A (Rear) and B (Front) for both front and rear controllers.

Notes:

1. Some controllers (across both V1 and V2) have presence of a relatively thick gauge black wire with a gold bullet connector that is used to interconnect the two controllers (A+B) as a method of grounding/earth. If these wires are present on both controllers, connect these together. Leave unutilised if not present on one or both of the controllers.
2. Refer to eSN Kaabo Reference Materials page for further information including wiring diagrams and other helpful resources such as this relevant image (Sinewave/LT01 pinouts of version 1 Black JST).
