Kaabo Mantis 10 Pro / Wolf Warrior X Pro+ Controller V2 (MiniMotors EY3)

• Replacement controller to suit:
  • Kaabo Mantis 10 Pro newer versions with factory headlight (approximately 2022 onwards). These newer versions are identified by having factory headlight on the stem and have the hub / wire collection board inside the deck.
  • Kaabo Wolf X Pro+.
• The "newer version" has white JST XHB connectors whereas the older non-headlight versions use a black JST SM connector to connect controller to main line harness.
• Commonly required to due to damage from water ingress. The local go-to as Scooter Hut are out usually out of stock with these as they no longer have any older Mantis 10 Pro models in-warranty. This is a Kaabo Factory spare, if item shows out of stock allow 2 weeks for delivery against pre-orders or sort yourself out with one from AliExpress.
• Refer to Kaabo Spares Category Home Page for wiring diagram guidance.

Notes:

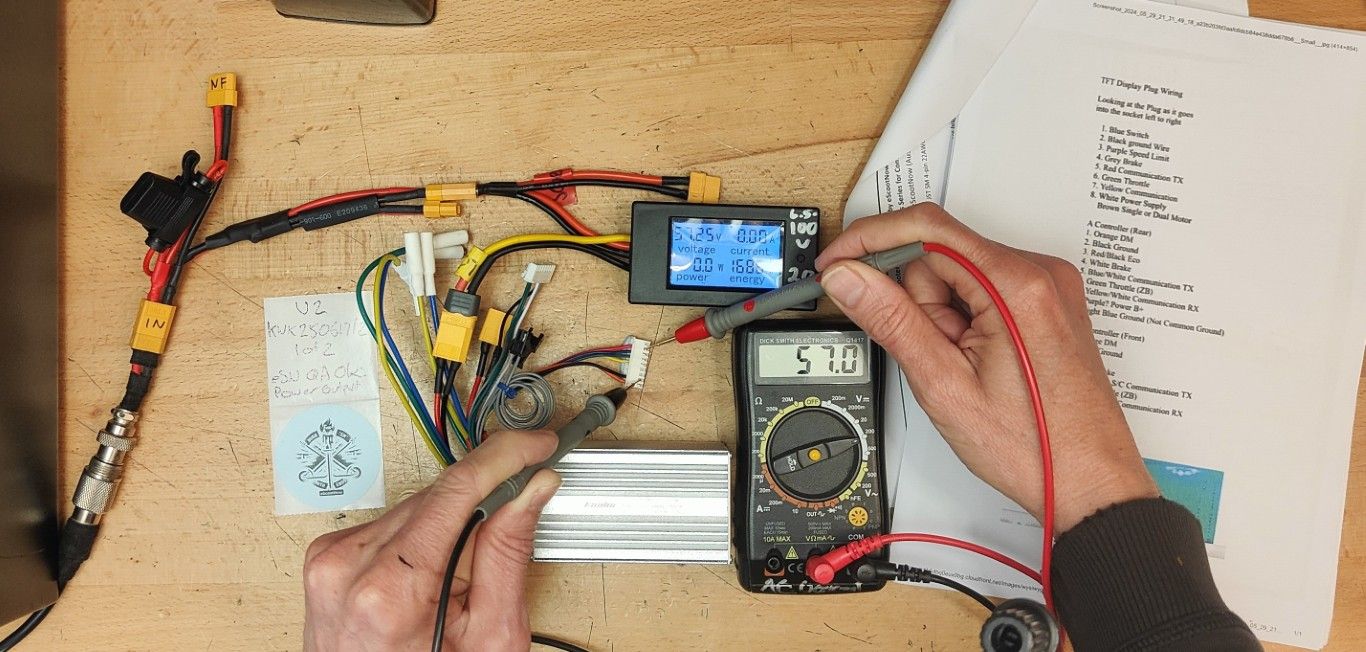

1. Image below shows testing power output from controller. This is one of the troubleshooting methods that can be adopted to determine if the controller is delivering power to the hub / wire collection board via the white XHB 9-pin connector. The meter shows power across the red and black wires.
