Kaabo Wolf Main Line (Main Cable for Warrior 11 & GT)

• The Kaabo Wolf Warrior Main Line (also known as main cable) is the harness that runs along the stem to connect handlebar instrumentation to the controller.

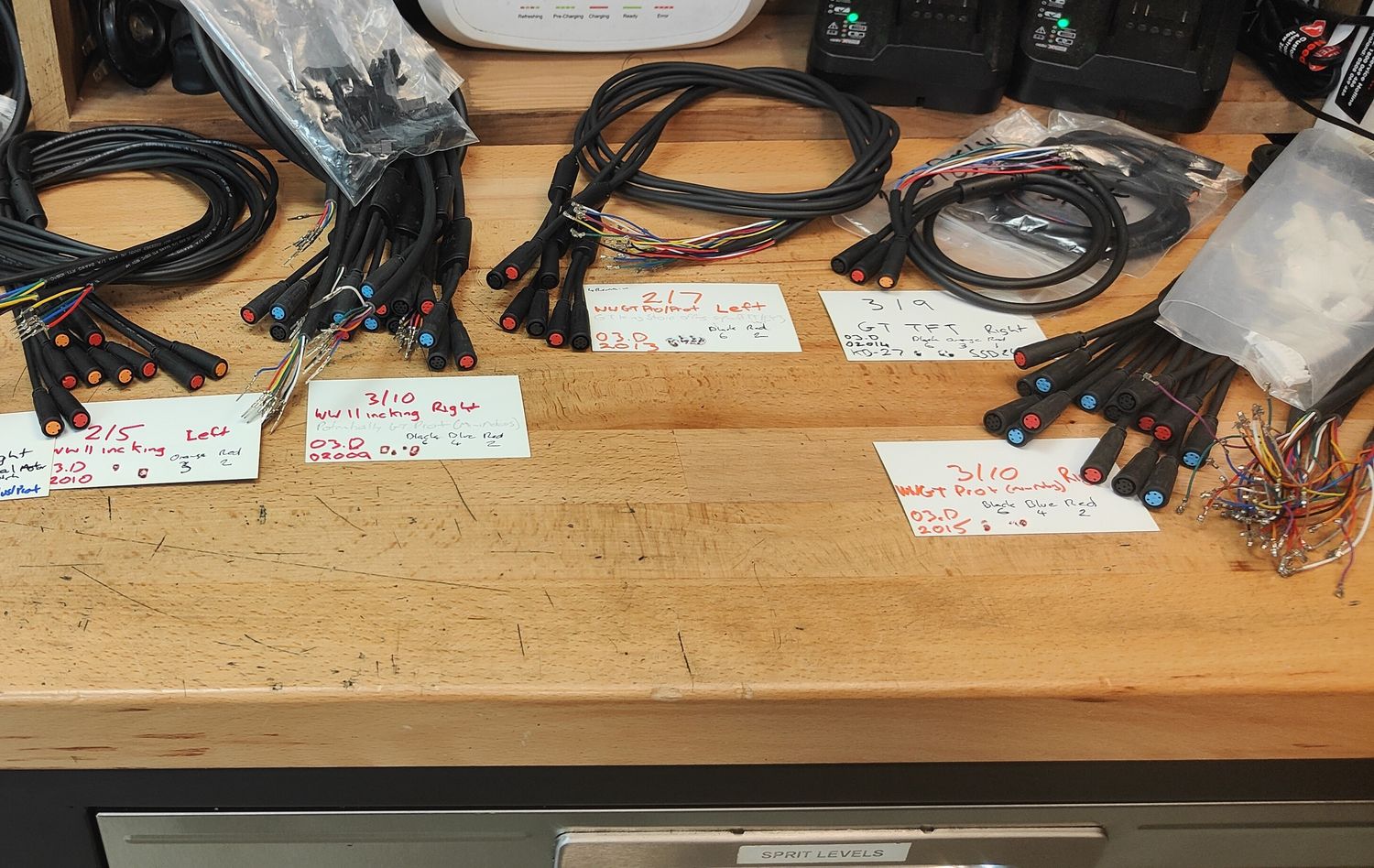

• Available in 5 variants:
  • For Wolf 11 models (Warrior 11 including King) universal across all variants being LT01 (Plus) and the MiniMotors EY3 (PRO+ & King), adopts black JST SM connectors:
    • Left Warrior 11 Plus/Pro+ (inc King) (2/5: 3-Orange Horn & front light switch, 2-Red Brake lever)
    • Right Warrior 11 Plus/Pro+ (inc King) (3/10: 6-Black Display, 4-Blue ECO/turbo/Single/dual switch, 2-Red Brake lever)
  • For Wolf GT models (Warrior and King Pro TFT models and Pro+ EY3) and Warrior X (Pro and Pro+). Left is universal across both GT and Warrior X models. Right has two variants, one suits Pro (TFT) the other for models of Pro+ and X (EY3 / LT01). These adopt white JST XH connectors to wire collection board.
    • Left GT / X (2/7: 6-Black for Horn and front light (+turn) switch and 2-Red for Brake Lever).
    • Right Pro+ / X non-TFT, models with EY3 (GT) or LT01 (X) (3/10: 6-Black Display, 4-Blue ECO/turbo/Single/dual Switch, 2-Red Brake lever.
    • Right Pro (TFT) (3/9: 6-Black Display, 3-Orange Throttle, 2-Red Brake lever).
• Typically required when replacement is needed due to physical failure of original cable (resulting in errors such as communications error or other unexpected behaviour).
• Wires are fitted with factory-crimped JST pins for insertion into JST housing (SM on 11, XH on GT and X). If any particular housing is required please specify in comment at checkout.
• Genuine Kaabo factory spare.

Notes:

1. Added to eSN catalogue March 2025.
2. Refer to Kaabo Spares Category Home Page for wiring diagrams.
