Kaabo Controller 60V 2x27A V2 {EY3} (select Mantis 10 inc PRO+ / Wolf Warrior X PRO+)

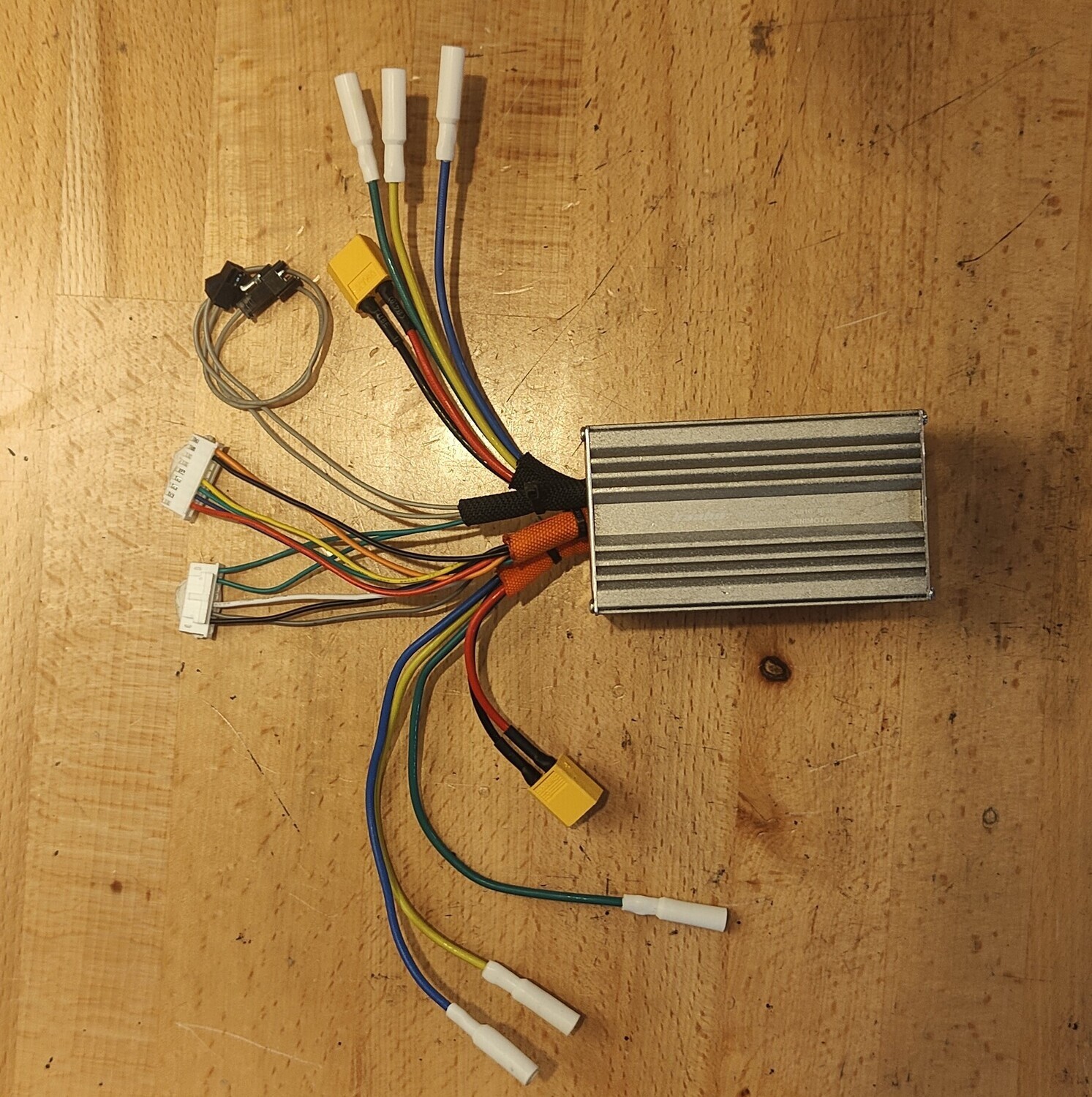

• The Kaabo Controller 60V 2x27A V2 {EY3} (select Mantis 10 inc PRO+ / Wolf Warrior X PRO+) is the factory stock controller on:
  • Kaabo Mantis 10 models of PRO+ models introduced in 2022 and subsequent Elite & SE badges. It is also factory fitted as option on select 10 Plus badge models including those marketed as "V2 2025".
  • Kaabo Wolf X PRO+.

These models have a MiniMotors EY3 display/throttle and hub / wire collection board.

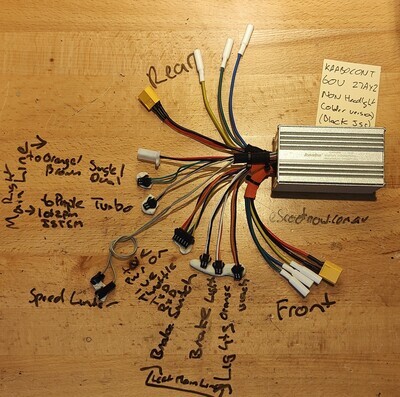

• This "V2" version has white JST XH connectors which connect to the hub / wire collection board. The predecessor controller on Mantis is the V1 version with black JST SM connectors and without hub / wire collection board (V1 controller wires connect directly to the main lines). Both versions use MiniMotors (signalling) protocol and the are typically accompanied with the MiniMotors EY3 display/throttle.
• Commonly required to due to damage from water ingress and/or MOSFET damage which can result in resistance on wheel when attempting to freewheel by hand when controller is connected.
• Often referred to as a "2-in-1" as it is a dual motor controller (for both wheels)..

Notes:

1. Refer to Reference Materials for Kaabo Page for technical info including wiring diagram guidance.
2. It is observed across V2 controller models with hub / wire collection board that a smaller gauge black wire runs from the hub / wire collection board to the underside of deck screw, assumed for grounding purpose.
3. Image below shows testing power output from controller. This is one of the troubleshooting methods that can be adopted to determine if the controller is delivering power to the hub / wire collection board via the white XHB 9-pin connector. The meter shows power across the red and black wires.
