TurboBrake Brake Lever

• TurboBrake Brake Lever is eSN's recommended strong but cost-effective brake lever.
• These are offered at reduced price as the factory only offers sets (lever and calliper pairs), so we can offer a somewhat exclusive, exceptional price on these. Bike Scooter City (Dragon/Langfeite brand owner) typically retail these without switch for AUD$65 (if they have stocks).
• These levers are OEM factory-fitted on current models of Teverun (including models of Blade and Fighter) and Dragon (Australia) Langfeite models of Predator, Hurricane, Scorpion and later models of the Cyclone (including Cyclone Pro) Lightning V2 & The Beast (typically models from 2024 onwards, non-XOD and non-Zoom models).
• Available in Left or Right hand side right (of handlebar).
• Lever includes Electric Brake Switch with generous 300mm length cable fitted with red 2-pin M8 connector which adopts the common convention used amongst nearly all eScooter makes being normally open (when lever is not activated the circuit is open) and closed when the lever is activated. The switch is identical to that of the Zoom Brake Switch as used on Kaabo but with slightly longer length for flexibility with handlebar uplifts. See notes on that page regarding the M8 plug.
• Features fluid reservoir viewport to allow visual assessment of fluid level.

• Current stocks are unbranded or with ST nameplate branding for Showtime FMX High Octane Entertainment. Branding is on the top face of the lever.
• Apply coupon code TURBOBRAKE-SET at checkout for 14% discount on cart of complete set comprising two callipers and two CNC levers.

Notes:

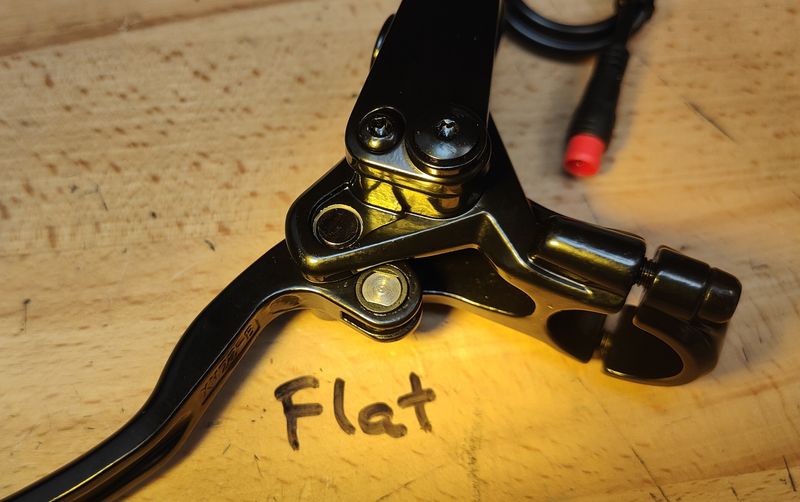

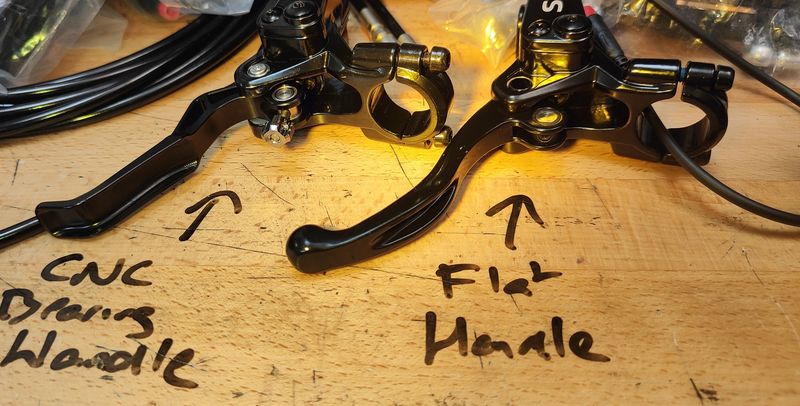

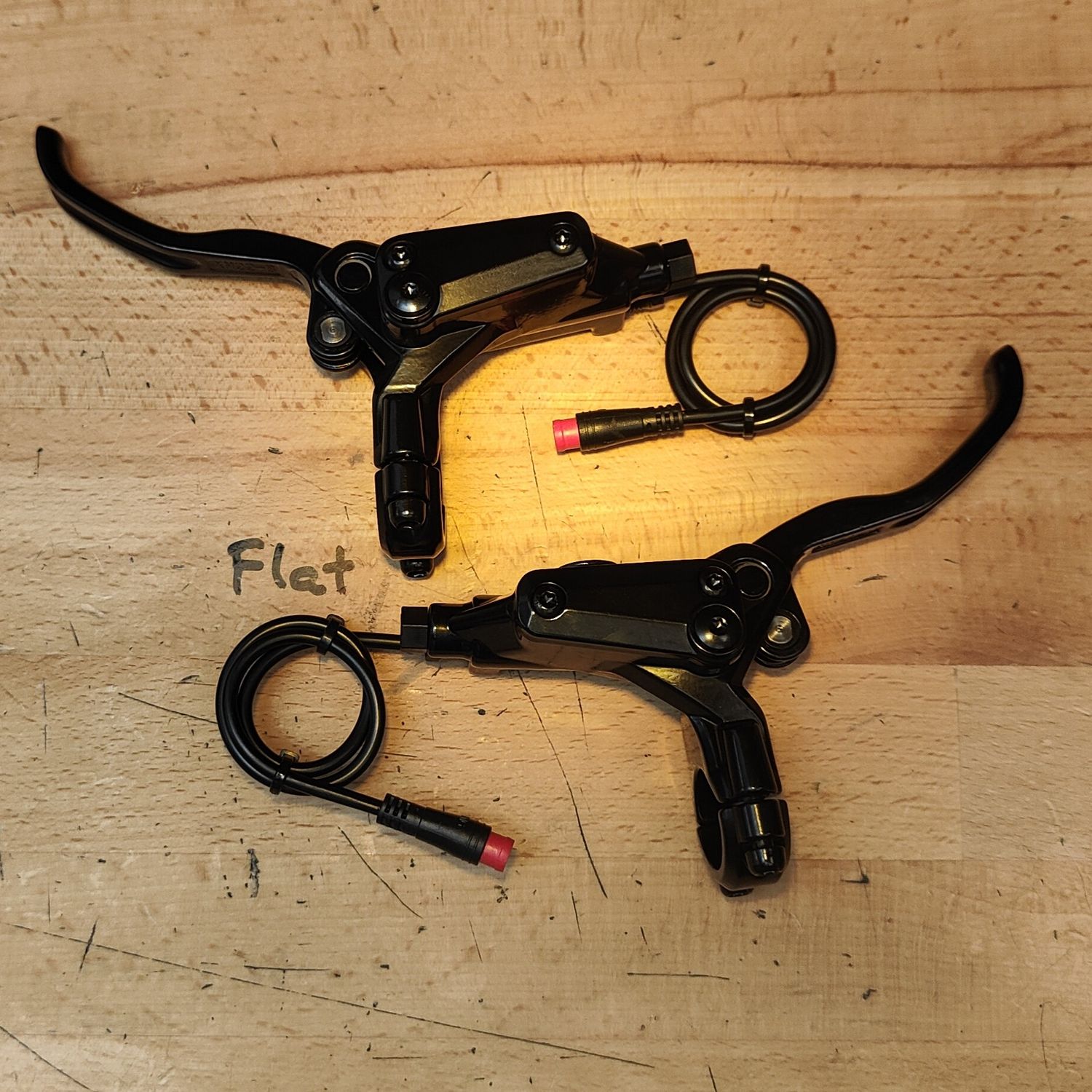

1. Image below shows this lever on right (known as flat handle) with the CNC Ball Bearing lever on left. The CNC Ball Bearing version provides improved precision.

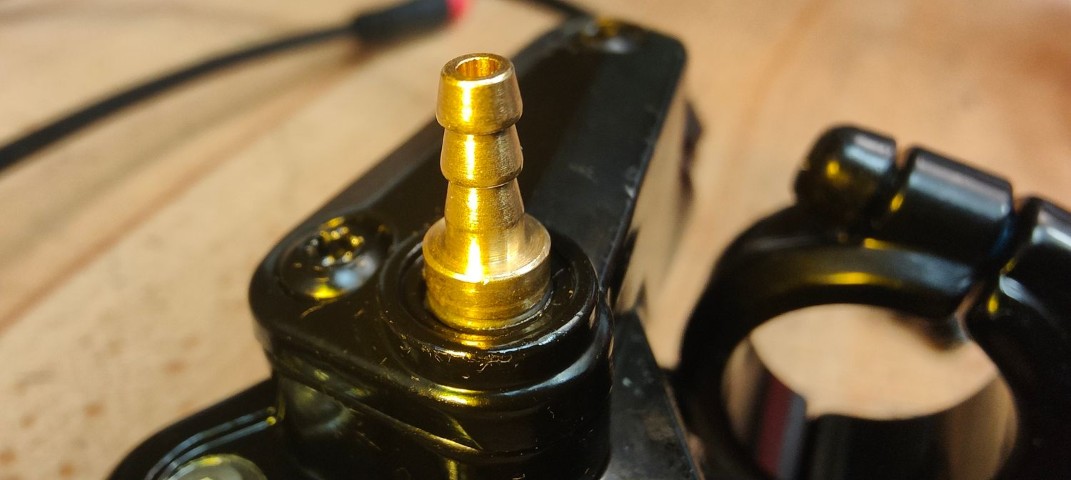

2. The hydraulic termination adopts the common compression nut thread of M8 (0.75 pitch). Hydraulic lines (hose) are typically supplied with callipers, the BH59 type with compression nut, insert (needle/barb - can be TEKTRO type), olive and boot to form termination. Refer to the TurboBrake Reference page for further information about hose and insert types such as Shimano BH59, BH90 and TEKTRO.
3. Consider adding a TurboBrake Brake Bleed Adaptor: You will likely need one for these levers as they are typically not included in the common eZmtb kits. TurboBrake levers only accommodate a small amount of thread on the end of the bleed adaptor to form connection (~1mm). When inserting into lever, apply downforce in turn, at the point where the O ring begins to compresses. Do not overtighten.

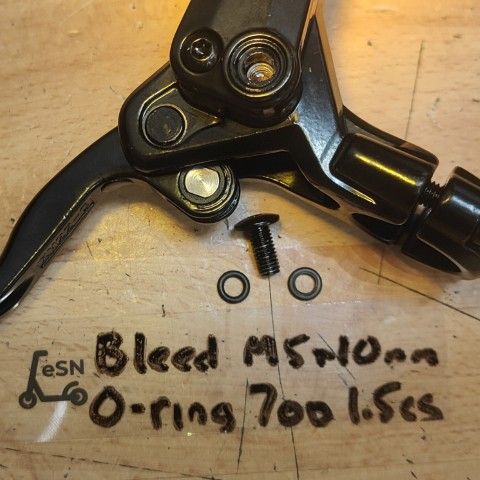

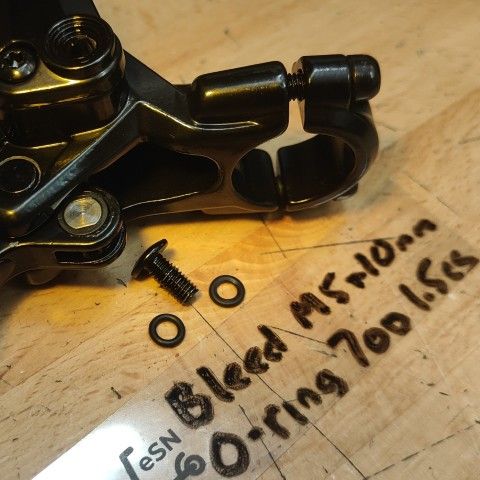

4. Bleed screw (M5 10mm) and O-ring (7mm OD, 1.5mm CS)

5. US spelling caliper.
