TurboBrake HB427-4S 4-Piston Brake Calliper

Name: TurboBrake HB427-4S 4-Piston Brake Calliper
Brand: TurboBrake by eScootNow
SKU: TURBOBRAKE-HB427-4S
Price: 61.36 AUD
Availability: InStock

SKU TURBOBRAKE-HB427-4S/RIGHT-LONG

AU$61.36

eSN's contemporary / standard 4-Piston brake calliper.

Orientation and line length

Left Short (1280mm w/ F-160 R-140)

Left Long (2100mm w/ F-180 R-160)

Right Short (1280mm w/ F-160 R-140)

Right Long (2100mm w/ F-180 R-160)

Teverun Branded Left Short (+AU$9.09)

Teverun Branded Left Long (+AU$9.09)

In stock: 14 available

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

TurboBrake HB427-4S 4-Piston Brake Calliper

Product Details

Brand: TurboBrake by eScootNow

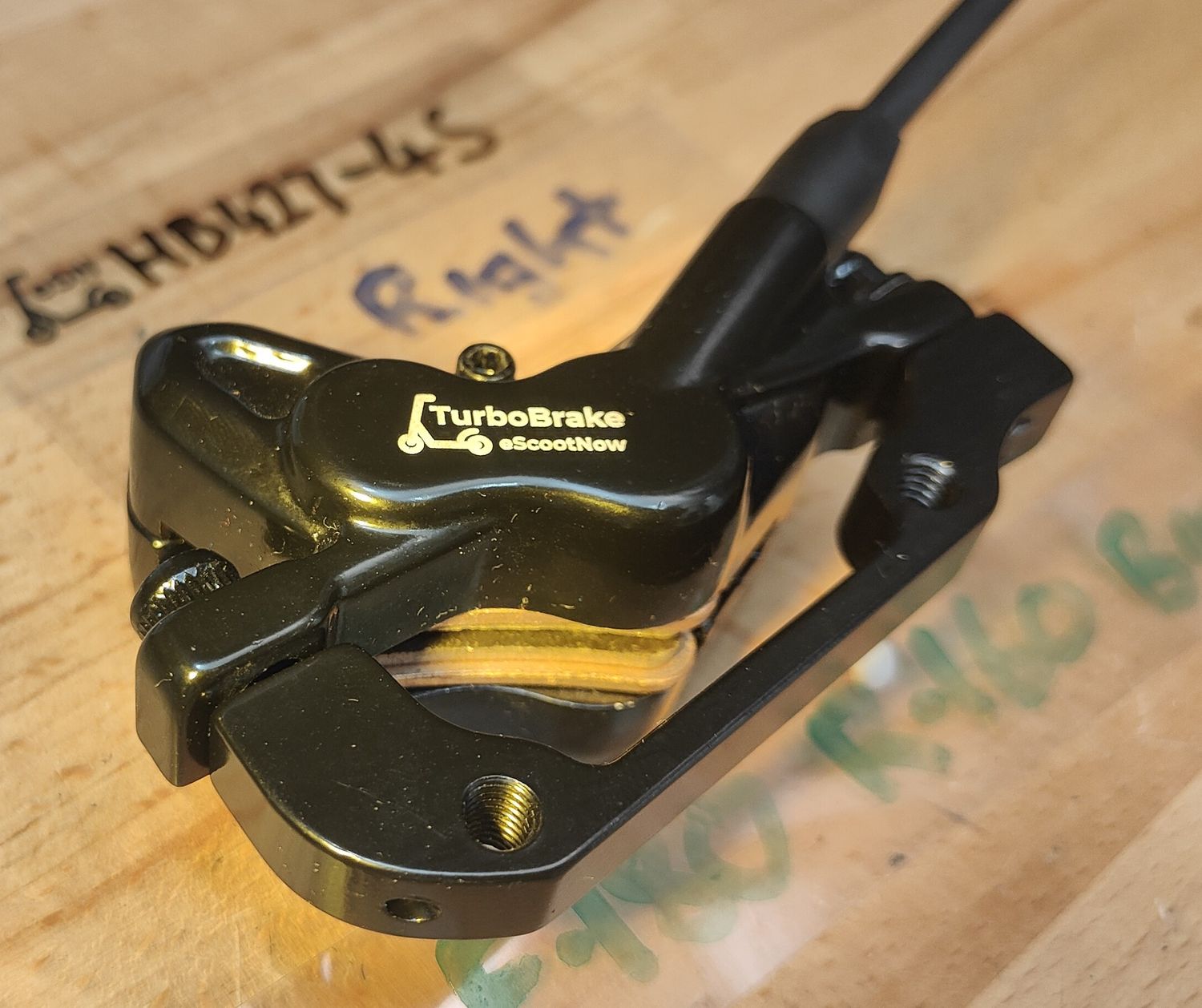

TurboBrake HB427-4S is eSN's contemporary 4-Piston hydraulic calliper.
Reliable drop-in replacement for most common stock callipers, offering better performance than traditional 2-piston callipers.
4S designation = 4-Piston Standard class (4M = moto). This is a contemporary calliper with similar performance of Logan, Zoom and NUTT with similar "footprint" for clearance. This HB427-4S is essentially the 4-piston version of the HB427-H which is the stock calliper on most Dragon (Langfeite) models including Predator and later models of Cyclone, Predator, Lightning & Hurricane.

Available in Left or Right orientation. This orientation defines the location of the hydraulic line termination as you look at the outer side of calliper mounted on scooter. For example, a calliper with right orientation, sitting on top of swing arm will suit rear right hand side of scooter & front left hand side. It will also suit front right hand side if located "behind the fork". See notes for further info, as a general guide:
- NAMI = Left.
- Kaabo Warrior = Right with exception to the GTR which adopts Left at front.
- Kaabo Mantis 8/10 = Left.
- Teverun Fighter = Left.
- Dragon Hurricane = Right orientation.
- Dragon GTR (including V2) = Short Right (for front RHS behind fork) and Right Long (for rear RHS on top of swing arm). Factory stock bracket for the cable/mechanical calliper cannot be re-used as length is too short.
Supplied with Long or Short hydraulic line (hose), industry standard BH59 type with TEKTRO style barb.
- Short, for front is 1.28 meters length.
- Long, for rear is s 2.1 meters length.

Lengths are derived from that of NAMI Logan 4-Piston (Burn-e) which is the most generous of all common 11" wheel scooters.

Hose terminates on the outside of calliper rather the inside adopted on HB427-4M and Logan 4-piston to help clear tyre sidewall. The non-banjo design reduces points-of-failure and exposure of hose to damage where it terminates with the lever.

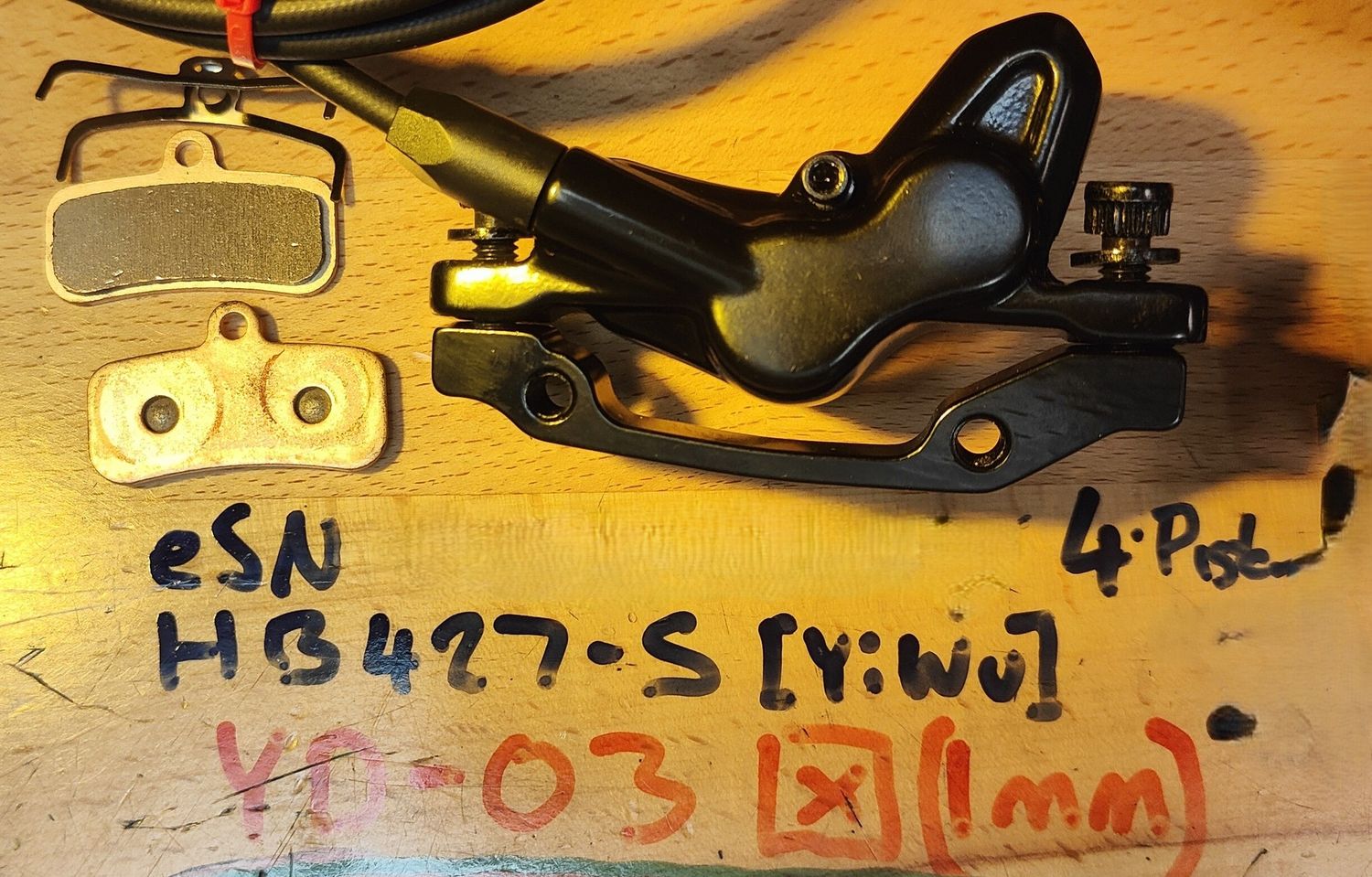

Supplied with factory fitted Logan 4-Piston type pad (all-metal, non finned). Will not support the slightly narrower pads of NUTT YD-03 cooling enhanced (resin/ceramic) due to heatsink conflict (heatsink would need be shaved back). The Logan 4-Piston style pad is available in 4 compounds.
Includes 7-piece kit comprising of BH59 olive (bushing), common M8 (0.75 pitch) compression nut, cover (hood/boot), pair of M6 x 18mm socket head bolts with washers to secure bracket to swing arm and 6x1.0mm O-ring for the factory-fitted TEKTRO barb (often o-ring is pre-fitted to barb).
Unbranded. A small quantity of the Teverun branded (7260R V1 spare) are also available (without brackets, with heat sink pads).
Apply coupon code TURBOBRAKE-SET at checkout for 14% discount on cart of complete set comprising two callipers and two levers.

Notes:

Typically paired with the TurboBrake Lever or the higher end CNC Ball Bearing Edition lever.
Video showing TurboBrake HB427-4S 4-Piston Brake Calliper (this calliper) fitted via an extender (approx 80mm) and coupler. A good option as replacement for troublesome banjo bolt.
Examples of orientation adopted on popular makes/models (always check your own build):
1. NAMI has Left orientation.
  Rear is on the left hand side above swing arm, hence Left. Front is on the right hand above swing arm on Burn-E and Klima, and on left behind the "forks" on Blast which are all Left orientation.

  Image: Ride & Glide
2. Kaabo Wolf Warrior Series has Right orientation with exception for GTR front.
3. Dragon Hurricane has Right orientation.
  Rear is on the right hand side above swing arm, hence Right. Front is on the right hand side, behind the "forks" hence right.
Consider adding a TurboBrake Brake Bleed Adaptor: You will likely need one of these for HB427-4S calliper as the ones are typically included in the common eZmtb kits are too short (YMMV). TurboBrake levers also use this adaptor (as does the HB427-4M calliper).
Typically the existing, factory stock brackets are retained as TurboBrake callipers are intended as drop-in replacements having similar shape and pad placement as most stock eScooter callipers. This section explains brackets - the two common IS ones used across 140 and 160mm rotors.
1. The F-180 R-160
  This is the common taller bracket: 22 & 22mm offset (height).
  Supplied with HB427-4S long (also available as 002 from MUQZI).
  1. This bracket is adopted on NAMI Burn-e, Kaabo Wolf Warrior 11/GT Series and Factory Teverun Fighter 11 front/rear. Note some Wolf Warrior's are observed with a 19 & 19 ("no washer") bracket, which is effectively a 22 & 22 shaved down 3mm.
2. The F-160 R-140
  This is the common shorter bracket: 11mm & 7mm offset (height).
  These are supplied with HB427-4S short (also available as 001 from MUQZI).
  1. Adopted on NAMI Klima. Near identical to that of the Kaabo Wolf Warrior King/GT rear (Wolf is precisely observed as 12/7mm).
Special purpose brackets are often used if intending to fit a larger rotor or relocate the calliper to be more favourable with clearance. MUQZI has an extensive range of special purpose brackets. Here is a couple of relevance:
- IS 004 F-203 R-180 shown as blue bracket bottom right as an alternative to F-180 R-160. Used when fitting +20mm larger rotors as shifts the calliper position "away and across" making it an ideal candidate for 160mm -> 180mm rotor uplifts. The actual bracket with that Magura is likely the 007 R-203.
- PM 005 F-203 R-203 shown as blue bracket top right, it is a (PM: Post Mount) stacked with an IS F-160 R-140. The objective here is to shift the unorthodox sized Magura MT5e calliper and banjo bolt away from the tyre sidewall. The IS 007 R-203 is also a candidate. You generally need not do need special purpose brackets for TurboBrake if retaining stock size rotor.
  .

  The IS naming convention is industry standard convention, however often a different type of bracket to what the nameplate numbers suggest. For example, the Klima has stock 140mm rotors yet still requires an F-160 R-140 on the front. You cannot just go by the numbers - you can usually go by increments (e.g. +20mm larger rotor).
ABS Spacers from Grey Eteri Store and HUJI Store make a tidy finish compared to stacking washers. Use M6.2 internal diameter for the M6 bolts, 9mm external diameter. Similar to the M5.2's in the TurboTight NAMI Klima Fender Spacer Kit. Alternatively you could use 6x8 or 6x10 copper sleeve from AN DE LI Hardware Fitting Store or U Officer Store.
Image on left (or top) shows the HB427-4M fitted to rear of NAMI Klima with the stock F-180 R-140 bracket and stock 140mm rotor. A slight shave to the swing arm brake mount plate was undertaken to accommodate the calliper body. By way of comparison, image on right (lower) shows Magura MT5e on NAMI Burn-e with aftermarket 160mm (stock size) rotor. Magura callipers typically require quite an orchestrated ensemble of bracketing. In this instance a PM bracket is stacked on top of the IS Mount (piggy backed). This shifts the placement to accommodate Magura design. In the Magura photo you can see that one of the pistons is not seated appropriately to align the pad to the rotor (it is too high). Ideally that bracket should be shaved down and/or a more appropriate bracket(s) and washers assembled. Magura are troublesome as they are further removed in placement than typical stock eScooter callipers
Image below shows the hydraulic line (hose) supplied with TurboBrake callipers to connect to the brake levers that adopt BH59/TEKTRO fittings such as TurboBrake Levers. This calliper includes the type on left, identical to the TurboBrake 2-Piston HB427-H hose. This is a TEKTRO style fitting (hence the inclusion of BH59 insert (needle/barb) with washer). The included 7-piece kit includes the 6x1.0mm O-ring shown fitted on image below. The compression nut adopts the common thread of M8 (0.75 pitch) adopted by most eScooter brake levers, allowing connectivity to existing levers such as Zoom, Logan and NUTT. The steel braided flexi whip hose shown on the right with factory crimped fitting is the higher-end TurboBrake HB427-4M calliper.
Bracket offset (height) is the distance from centre of threaded hole in the bracket that connects to the scooter to the surface of the edge of bracket where the calliper sits. Sometimes brackets are labelled with a nameplate on the underside. Image below contrasts some of the brackets as observed on Kaabo/Zoom callipers:
Observed accomodated in Dualtron
