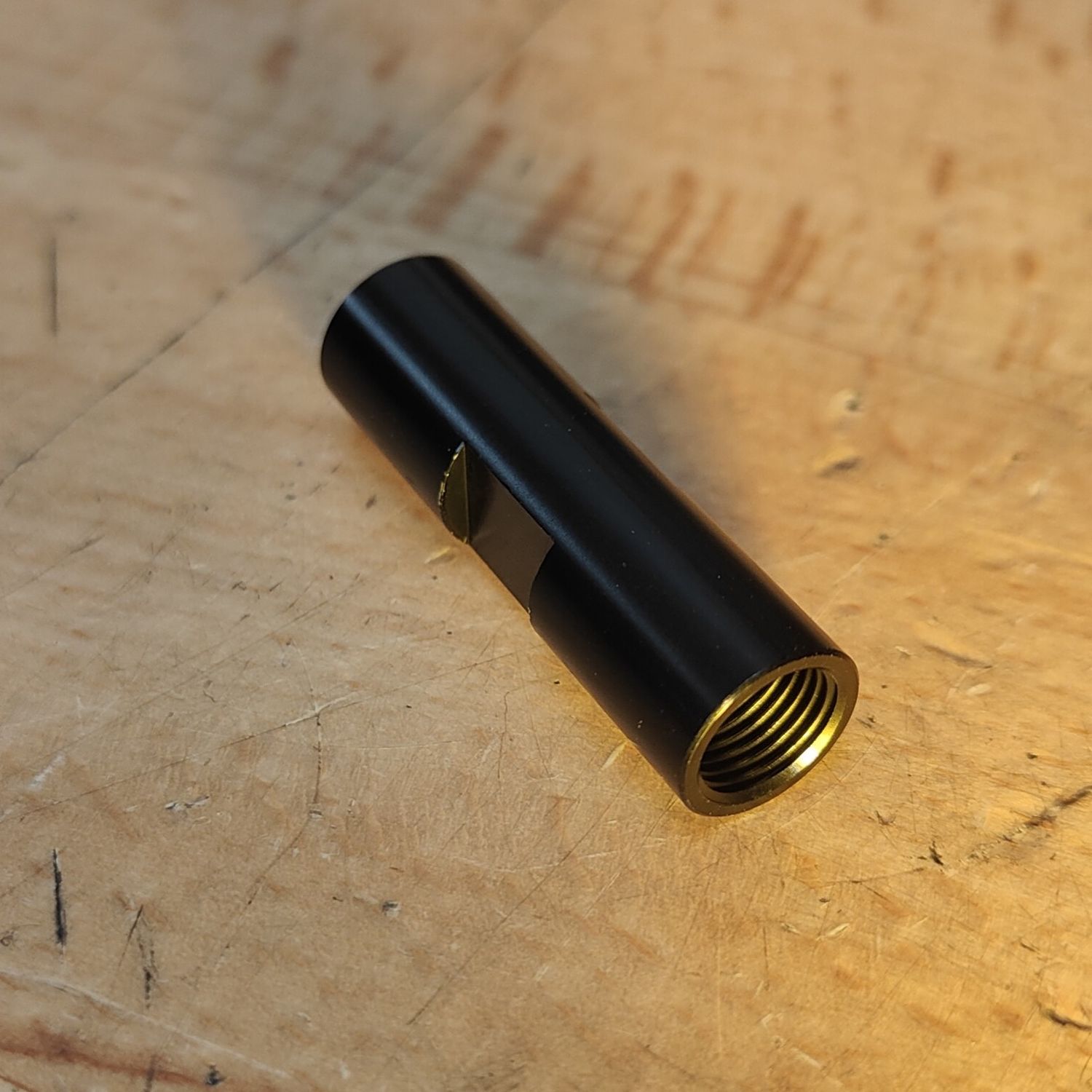

TurboBrake Coupler suit BH59 and TEKTRO

• TurboBrake Coupler is used to join two hydraulic brake lines together, or replace a section of hose without relacing entire length.
• Custom produced for eScootNow with CNC machined process.

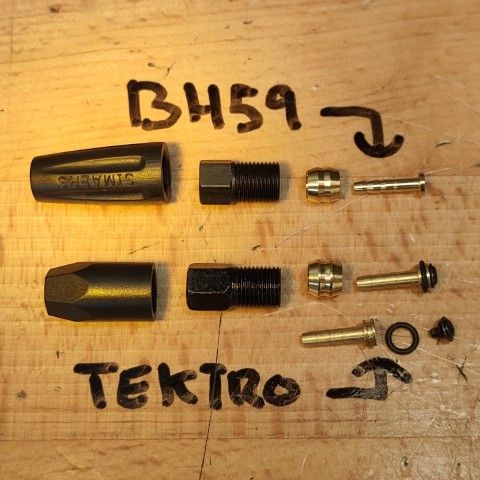

• Suitable for traditional BH59 or TEKTRO style fittings. TEKTRO style barbs feature an o-ring for a more resilient seal and used across TurboBrake callipers and levers.

• Thread for compression nut is the common industry standard M8 0.75mm pitch thread.

Notes:

1. Refer to the TurboBrake Reference page for further information about hose and insert types such as Shimano BH59, BH90 and TEKTRO.
2. Video showing fitting with TurboBrake HB427-4S 4-Piston Brake Calliper.via TurboBrake Coupler

3. Couplers do add a point-of-failure if stressed. Ensure the join is located where there is no bend / force on the hose.

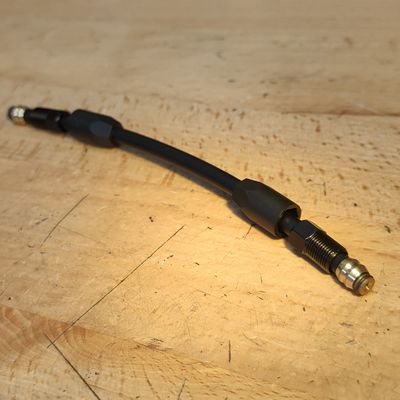

4. Often used with 150mm short length fitted hose such as FlexiHose or BH59 to extend reach on handlebar uplifts.
5. For Teverun Fighter raised handlebar:
   1. Extend hydraulic lines with routing on newer Fighter models through front center of stem with this 150mm hydraulic FlexiHose and coupler.
   2. Fit 750mm Kaabo Wolf bar.
   3. Retrofit 300mm brake lever hall switch.
   4. and as necessary, M8 prepared leads for other instrumentation.
