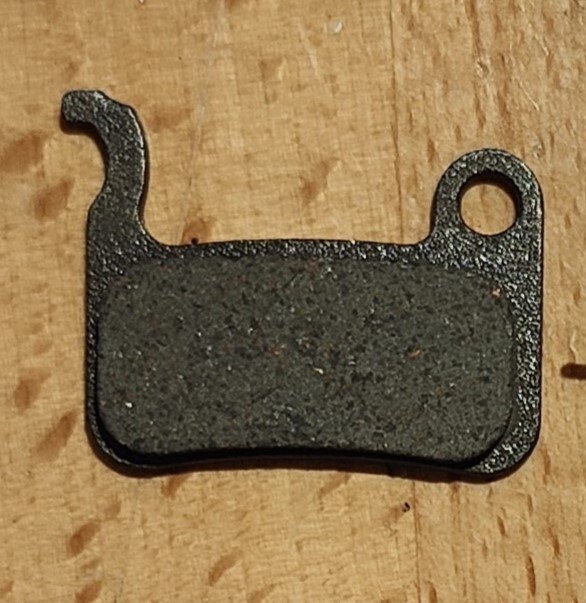

The "Rectangular Hook" shape pads are named due to having a hook and retaining pin hole on the upper corners.
Suits callipers of:

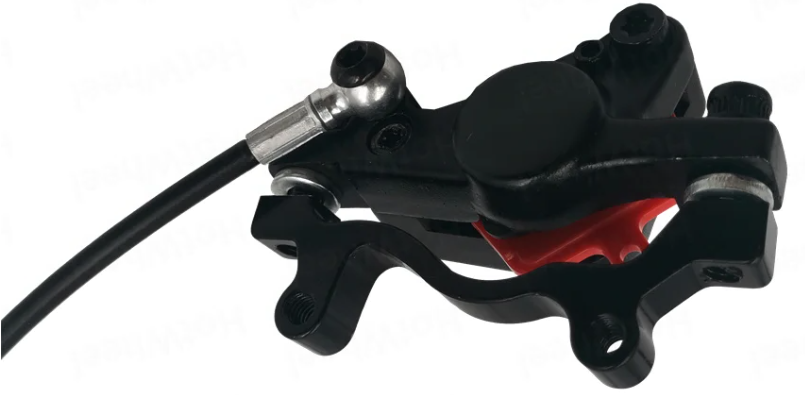

Zoom XTECH HB100, the semi-hydraulic calliper that uses cable/mechanical levers on models such as:
Kaabo Mantis (cable brake models, the Non-Pro, non hydraulic variants)
eMove Cruiser
Inokim OX

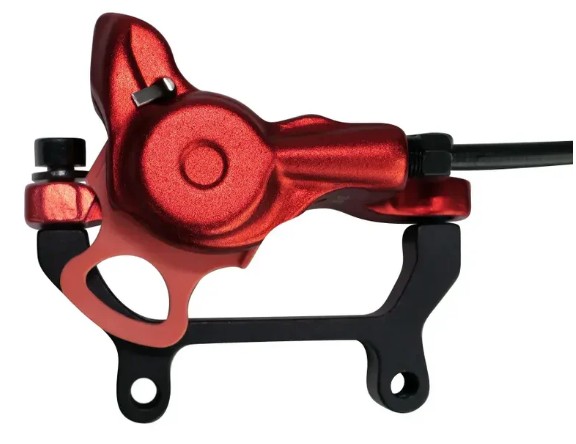

Roadrunner (most models)
Xiaomi Mi 3 (not typical in our region)
The HB427-H 2-piston calliper such as ESN's TurboBrake HB427-H, which is the OEM factory stock calliper on models of:

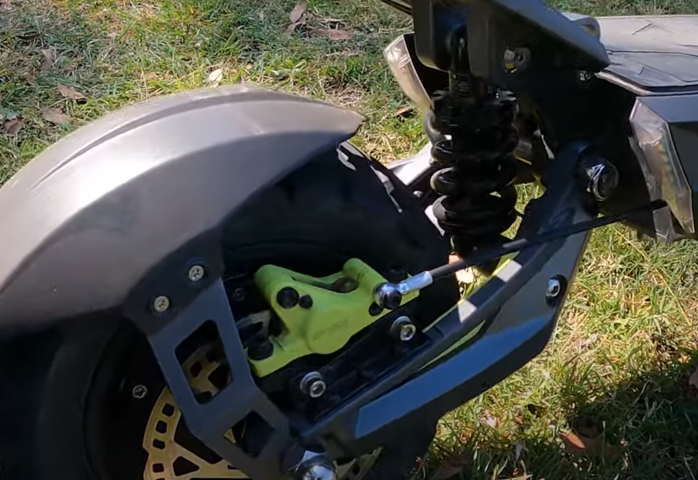

the Yellow Dragon branded callipers on Dragon Predator and Hurricane (Langfeite C5/H1) and newer/later model Dragon Cyclone Pro (C3), Lightning V2 & Beast. The older models adopt be Crown or NUTT pads on Cyclone Pro and Zoom on the Lightning & Beast.

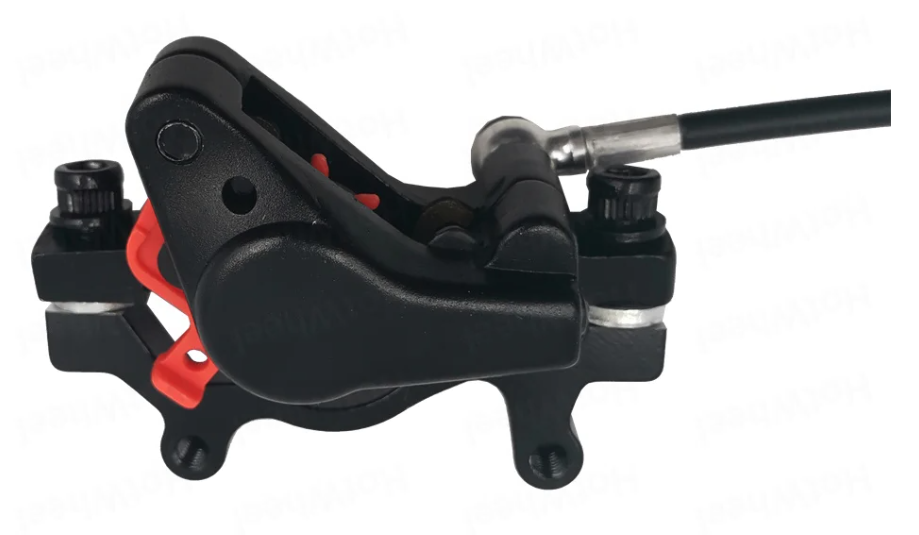

the Black unbranded or Teverun branded calliper on models such as Teverun Fighter Mini and Blade Mini (hydraulic models). Also common in the Blade/Teverun X and GT/GT+ series (post-XOD calliper era). Earlier Teverun Fighter adopts Zoom HB-875E and later flagship models of Supreme adopts HB427-4M callipers.
It is easy to visually inspect if this pad is required by looking at the top of the calliper and noting corners at top of the pad. This distinct shape identifies this pad easily amongst other common eScooter pad shapes. The plate of the pad measures 32mm wide with a 14mm pad compound height.
Available in four compounds. To further understand merits of each compound, refer to the Brake Pads Category homepage.
Individually packaged in clear zip-lock bag with spring and pin (RSM adopts cardboard retail packaging).
The exception being the RSM bulk version which is a Kaabo Factory Spare supplied without individual packaging, spring and pin. Pads only.
Supplied as a set (pair) two pads, one for each side. Order two sets for both front and rear.
Notes:
These pads suit the popular Zoom XTECH HB100 calliper marketed as "Xtech Semi-Hydraulic" by:
Suits NUTT A5-D 2-piston calliper on early NAMI Burn-e, MUKUTA 10+, Limited models of Zero 10X/11X, Dragon Hunter X11, early Dragon Cyclone Pro & early VSETT and 4-piston callipers NUTT Y-5 & TurboBrake HB427-4M.
