NAMI Logan Brake Lever (suit Burn-e, Klima and Blast)

• Logan brake lever as NAMI Factory Spare, suits all models (Burn-e, Klima and Blast).
• Includes Electric Brake Switch with cable length of 50mm.
• For each lever, an optional brake lever termination kit:
  • Include olive/bushing only
  • 3-piece: Include olive/bushing, compression nut and cover/hood/boot as shown below:



The compression nut and cover can be re-used when renewing, bushing/olive is typically single use.

The 2nd product image shows four sets of 3-piece kits, with the two bolts - those two bolts are supplied as option with calliper, such as Logan 4-piston.

• Typically required when replacement is needed from physical damage, or in rare occasions hydraulic leak.
• Genuine NAMI Factory Spare, wired for plug-and-play installation for experienced / competent fitters. Brake bleed involved (kit).
• Supplied individually, choose desired side, left OR right.

Notes:

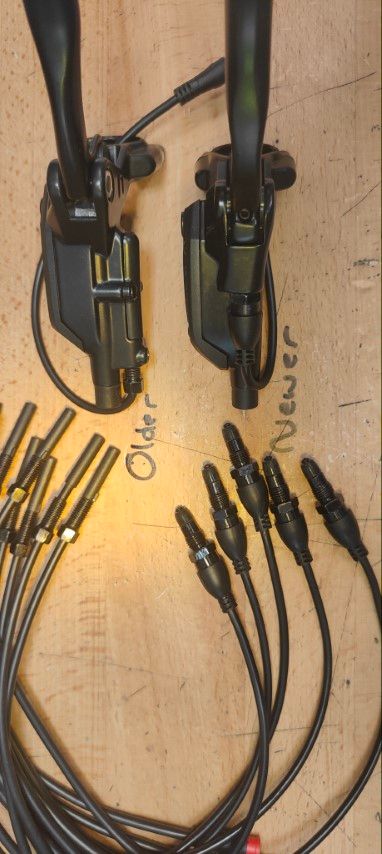

1. The Electric Brake Hall Switch shown in product image is the older variant. Logan is transitioning to the newer version which is more of a mechanical switch rather than magnetic hall type. Both are fitted with the Red 2-Pin M8 connector and shown below:

2. Videos showing installation of brakes and hydraulic line (hose) to lever:

3. The ebrake switch adopts the common convention used amongst nearly all eScooter makes and models across those with a red 2-pin M8 connector. This type is normally open (when lever is not activated the circuit is open) and closed when the lever is activated.
